Mesh Belt Infrared Industrial Dryer Ovens Machine , Red Chilli Drying Machine

Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number DW
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Woodencase
Delivery Time 10 WEEKS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Metal Material SUS316/SUS304/ CARBON STEEL ,ETC Temp 10-350'C
Water Evaporation 100-3000kg/h Power Supply Customized
Heating Source Steam / Electrical / Natural Gas / Diesel / Etc; Motor ABB / SIEMENS/
High Light

industrial drying ovens

,

forced air drying oven

Leave a Message
Product Description

Chillies  DW  Mesh belt Drying Oven , Wholesale Various High Quality

Principle

The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer. The dryer is composed of several sections. For each section the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to client requirement;





Model DW-1.2-8 DW-1.2-10 DW-1.6-8 DW-1.6-10 DW-2-8 DW-2-10
Unit number 4 5 4 5 4 5
Belt width 1.2 m 1.2m 1.6m 1.6m 2m 2m
Drying section
length
8mm 10mm 8mm 10mm 8mm 10mm
Thickness of
the material
to be covered
10-80mm 10-80mm 10-80mm 10-80mm 10-80mm 10-80mm
Temperature 60-130°C 60-130°C 60-130°C 60-130°C 60-130°C 60-130°C
Steam pressure 0.2-0.8Mpa 0.2-0.8Mpa 0.2-0.8Mpa 0.2-0.8Mpa 0.2-0.8Mpa 0.2-0.8Mpa
Steam consumption 120-300kg/h 150-375kg/h 150-375kg/h 170-740kg/h 180-500kg/h 225-600kg/h
Drying time 0.2-1.2h 0.25-1.5h 0.2-1.2h 0.25-1.5h 0.2-1.2h 0.25-1.5h
Drying strength 60-160 kg H2O/h 80-220 kg H2O/h 75-220 kg H2O/h 95-250 kg H2O/h 100-260 kg H2O/h 120-300 kg H2O/h
Total power of
the blower
9.9kw 12.1kw 9.9kw 12.1kw 18.2kw 22.2kw
Total power of
the equipment
11.4kw 13.6kw 11.4kw 13.6kw 19.7kw 23.7kw

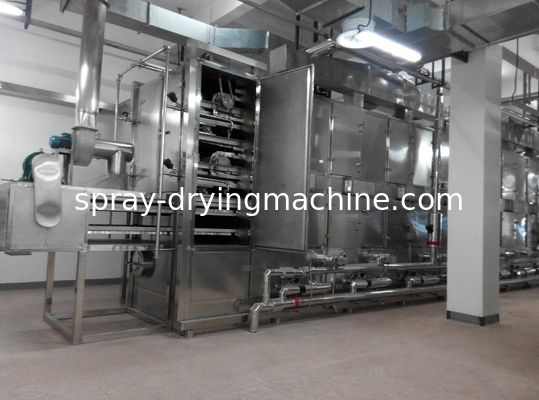

Mesh Belt Infrared Industrial Dryer Ovens Machine , Red Chilli Drying Machine 0



Application :

De-watering vegetable, particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber, medicine product, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device..

The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer. The dryer is composed of several sections. For each section the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to client requirement;
