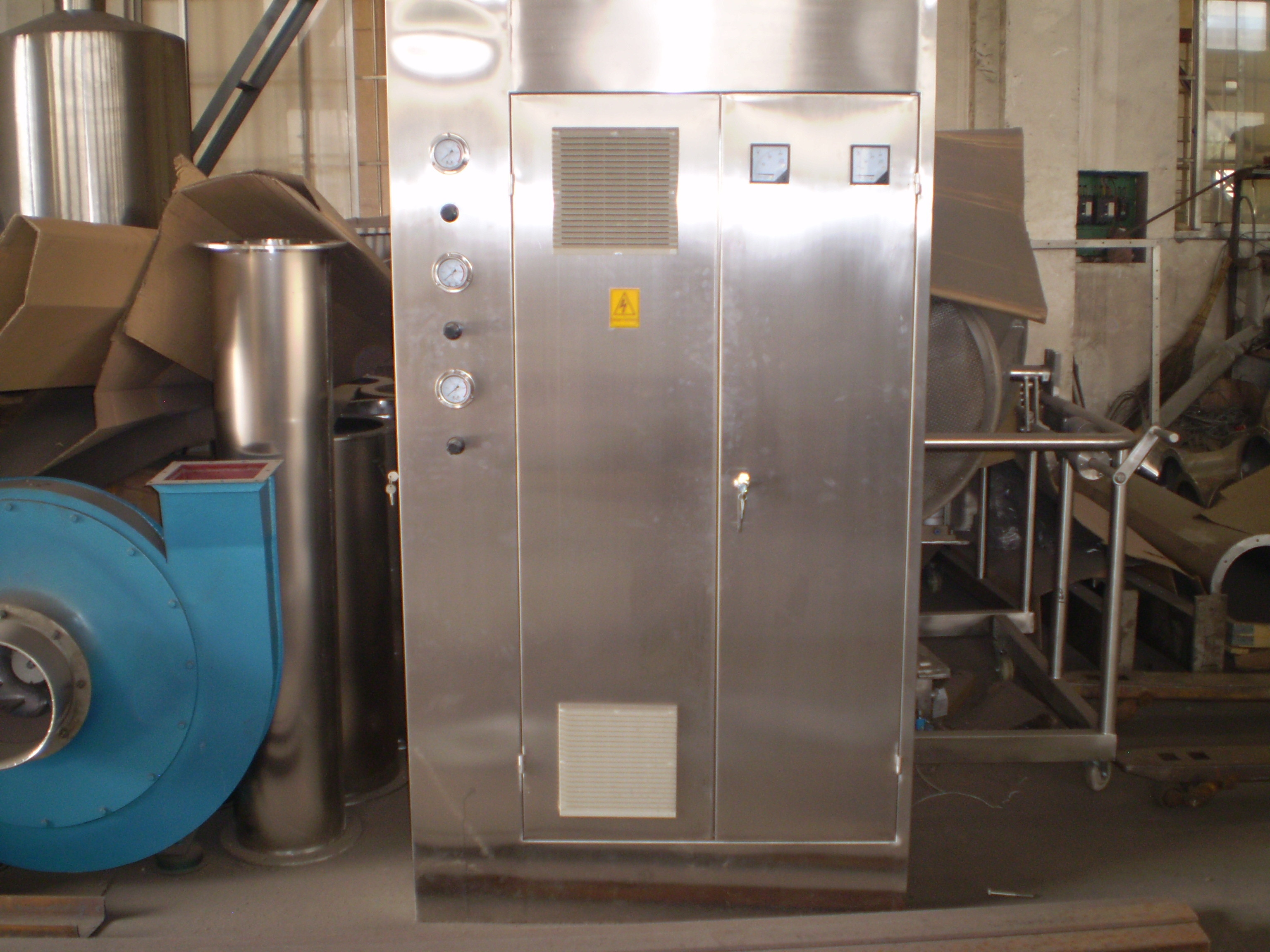

Clean Room Pharm Industry Dryer Oven Machine PLC HMI / Button Control System
| Place of Origin | CHINA |
|---|---|
| Brand Name | YIBU |
| Certification | CE / UL / SGS / EAC / CR – TU |
| Model Number | JCT |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Woodencase |
| Delivery Time | 10 weeks |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 SETS PER MONTH |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Metal Material | SUS316/SUS304/ | Heating Source | Steam / Electrical |
|---|---|---|---|
| Temp | 80- 150℃ | Motor | ABB / SIEMENS/ |
| Control System | PLC+HMI / Button Control | Document | FAT/ IQ / OQ / PQ |
| Highlight | industrial drying ovens,forced air drying oven |
||
Product Description
JCT Special Drying Oven Machine (Hot air drying oven ) (Pharmaceutical oven )( Hot air circulating oven, Hot air circulating drying machine )
Preface
The air steam passes through only the surface of raw material in traditional chamber dryer. The disadvantage is that the coefficient of raw material only in traditional level chamber dryer. The disadvantage is that the coefficient of heat transfer is low, the drying time is long, and it has defects in structure, can not be in conformity with the requirements of GMP. In order to overcome the shortage, we designed and developed the penetrating air stream chamber dryer on the basis of absorbing foreign advanced technology. The principle of work is shown in the diagram below.
The fresh air is sucked by fan and then filtered by pre, post and sub-high efficiency to achieve 100,000 grades clean effect. Pass through steam heat exchanger the temperature of air rises to a certain temperature. The heated air passes through flow distributor enters every layer, passes through each layer of raw material to be dried, humid air is exhausted through the inclined air channel under the drying tray. Part of the air circulates in the system
| item spec |
dry amount of each batch (Kg) | power(KW) | steam consumption (kg/h) | area of heat (m2) | amount of air (m3/h) | temperature difference between up and low (°C) | size of drying tray | quantity of drying tray | overall dimensions (mm) | weight(kg) |
| JCT-1 | 100 | 4 | 40-80 | 50 | 4000-7300 | ±2 | 550×610×80 | 10 | 2350×1400×2280 | 2200 |
| JCT-2 | 200 | 7.5 | 80-120 | 80 | 7200-15800 | ±2 | 530×610×80 | 20 | 3100×1600×2700 | 4000 |
| materials | dyestuff | pharmaceutical | catalyst | resin | product of kiln | amino acid |
| capacity(kg) | 200 | 260 | 370 | 35 | 100 | 200 |
| initial moisture(%) | 60 | 65 | - | 35 | 31 | 50 |
| final moisture(%) | 0.3 | 0.5 | - | 10 | 3 | 2 |
| mass density(kg/l) | 0.56 | 0.5 | 0.92 | 0.8 | 0.51 | 0.5 |
| temperature of hot air(°C) | 60 | 80 | 400 | 150 | 100 | 80 |
| drying time(h) | 5 | 6 | - | 3 | 40 | 1 |
| drying area(m2) | 6.5 | 5.8 | 4.6 | 0.63 | 6.6 | 6.8 |
| heat source | steam | stream | air | stream | electricity | stream |
Application :
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Feature
- To avoid pollution of product caused by circulation air, all circulation air passes through post or high efficiency filters. It is in conformity with the requirements of GMP.
- Compared to traditional horizontal chamber dryer, its capacity of drying is larger. The thickness of raw materials each layer can be over three times.
- Compared to traditional horizontal chamber dryer, its drying area is large and its efficiency is high. Its capacity of drying might be several times higher, the cost is reasonable.
- Applicable to dry various kinds of granules and block of materials.
- Easy in operation, convenient in parts exchanging, low in faults.
- There are air filters at air inlet and air outlet. Therefore the dried raw materials can’t be polluted and the quality of product can’t be effected.
- The hot source can adopt steam , oil or electric heater.
