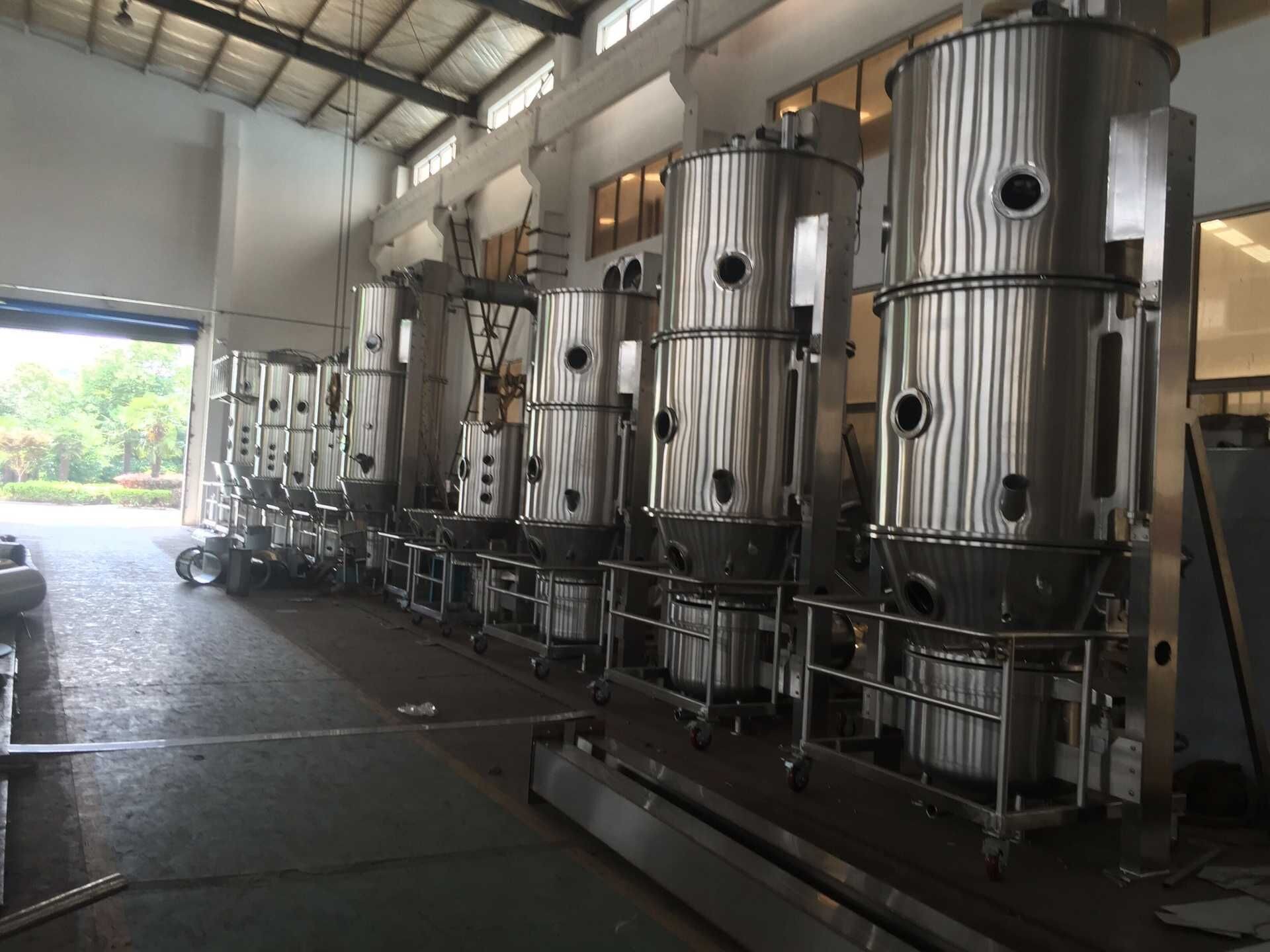

Fluidized Bed Spirulina Powder Granulator Machine Air Filled Seal Shaft Drive

Place of Origin China
Brand Name YIBU
Certification ISO9001, ISO14001 , CE , SGS , UL CERTIFICATE
Model Number FL
Minimum Order Quantity 1 ser
Price Negotiation
Packaging Details Wooden case
Delivery Time 65 working days
Payment Terms LC , TT
Supply Ability 28 SETS/ YEAR
Product Details
Application Foodstuff / Chemical / Pharmaceutical Temp 50-180℃
Particle 20-80mesh Capacity 5-500kg/batch
Heating Source Steam / Electrical / Natural Gas / Diesel / Etc; Metal Material SUS316/SUS304/ CARBON STEEL ,ETC
Document FAT/ IQ / OQ / PQ
High Light

wet granulator machine


dry granulation machine


fluidized bed spirulina powder granulator

Leave a Message
Product Description

Spirulina Powder SUS304 SUS316 Fluidized bed granulator for granulator machine for Food intgredient

Main Uses:

1.Phamaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medcine.

2.Foodstuff: cocoa, coffee, milk powder, juice of granulate, flavoring and so on

3.Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on

4.Pharmaceutical industry: tablet

5.Coating: grain,pill layer,slow-releasing,film inteatines dissolving coating etc.


Working Principal

The powder grannle in the container(fluidization) appear in the state of fluidization.It is preheated and mixed with clean and heated air.At the same makes the solution of adhesive solvent is fogged and sprayed into the contaier.It makes the some particles become granulating that contains adhesive.Being of unceasing dry through hot qir,the moisture in the granulation is evaporated and the adhesive is solidification.The process is carries out continuously.Finally it forms ideal,uniform and Porous granules.



1. Because of powder granulation, the fluidity is improved and the dust is reduced

2. Because of powder granulation, its solving property is improved

3. The mixing, granulation and drying can be completed in one step indside the machine

4. The operation of equipment is sage beacuse the anti static filtering cloth is adapted

5. The operating personnel can not be injured if explosion take place because there is releasing hole

6. The equipment has no dead corner. Therefore, the loading and unloading are quick, light and clean. It can meet the requirements of GMP


Technical Parameters

Model 3 5 15 30 45 60 90 120 200 300 500
Volume(L) 12 22 45 100 155 220 300 420 660 1000 1500
Steam amount (KG/H)























Processing Amount (KG/batch)























steam Pressure(MPa) 00.4-0.6
Consumption(m3/min) 12 223 42 70 99 141 169 211 282 366 451
Compressed air Pressure(MPa) 0.6
Consumption(m3/min) 0.3 0.3 0.3 0.4 0.4 0.6 0.6 0.9 0.9 1.3 1.5
Temperature(°C) 0-120
Wind motor power(KW) 2.2 3 4 5.5 7.5 11 15 18.5 22 30 37

<75 (wind motor separated)


The above is our technical data. We can also design and manufacture different varieties upon customer's request.

Main feature

1; this machine is meeting ISO 9001 certificate

2: this machine is made up of stainless steel( we also can do as consumer requirement)

3: this machine is main used for make the granule, need to add the adhesive during make granule, The operation of equipment is safe because the anti static filtering cloth is adopted;

4; this machine can use steam or electric( consumer can select )

5: the voltage: 220V or 380V or as consumer requirement

6: guarantee: 1 year

7: deliver date: 30 days

8: payment: 30% TT in advance, 70% need to pay us before deliver goods

9: export port: shanghai port



The powder granule in vessel (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.


1. The processes of mixing ,granulating and drying are completed inone step inside the machine.
2. Turn to the Ex-type of Fluidized bed dryer , we set the explosionrelease vent on the machine .once the explosion happened , themachine will release the explosion to outside automatically andsafely ,it will make very safe condition to the operator .
3. No dead corner or protruded screws on the whole machine
4. For the loading material, we have options on vacuum feeder , lifter , negative feeding and manual feeding for customer .
5. PLC is designed to ensure a full automatic control. All theoperations are automatically finished according to the requirementsof the user to set the process parameters; moreover ,Processparameters can be printed and the original record is true and reliable.In full compliance with the GMP requirement of pharmaceuticalproduction.
6. For the bag filter , we choose anti-static filtering cloth .except thebag filter , we also have barrel filter on choice .
