Fluidized Bed Granulator Machine Pharmaceutical , Tablet Making Machine

Place of Origin China
Brand Name YIBU
Certification ISO9001, ISO14001 , CE , SGS , UL CERTIFICATE
Model Number FL
Minimum Order Quantity 1 ser
Price Negotiation
Packaging Details Wooden case
Delivery Time 65 working days
Payment Terms LC , TT
Supply Ability 28 SETS/ YEAR
Product Details
Application Foodstuff / Chemical / Pharmaceutical Temp 50-180℃
Particle 20-80mesh Capacity 5-500kg/batch
Heating Source Steam / Electrical / Natural Gas / Diesel / Etc; Metal Material SUS316/SUS304/ CARBON STEEL ,ETC
Document FAT/ IQ / OQ / PQ
High Light

wet granulator machine


dry granulation machine


pharmaceutical fluidized bed granulator

Leave a Message
Product Description

Coffee creamer SUS304 SUS316 Fluidized bed granulator for granulator machine

Applications of FL series pharmaceutical fluid bed granulator:
1. Powder granulation or agglomeration in Food, Chemical and Phamaceutical products;
2. Capacity: 3-1000 kg/batch;
4. GMP design;
5. Heat source: steam, electricity, thermal oil etc.

Working principle of FL series pharmaceutical fluid bed granulator:
FL series pharmaceutical fluid bed granulator is a batch type top spray powder granulation / agglomeration processor which has been widely used in pharmaceutical, chemical and foodstuff industry. Raw materil ( usually powder or small granules ) is loaded in a trolley of which the bottom is made by perforated screen. Heated and filtered air is blown into the trolley where the hot air completely fluidize the material. Meanwhile, liquid binder is sprayed onto the fluidized material. Fine powder collides with droples and stick together to form granules / agglomerates with good flowability and instant solubility.
Technical advantages of FL series pharmaceutical fluid bed granulator :

1. cGMP Design: 150 grit exterior finish, mirror finish on internal surfaces. The system can meet GMP standard;
2. HEPA air filter: The air filter consists of primary stage, secondary stage and high efficiency stage air filter and the air cleanness can reach 100,000 grade;
3. Automatic pneumatic sealing: two pneumatic cylinders lift the granulation bowl for sealing with the top chamber; the inflated square rubber ring will seal the bottom chamber to create a completely sealed granulation chamber;
4. Two-bag-filter-chamber system: The top bag filtering system has two chambers which work alternately to avoid air pressure onto the filter bag. The product rate can reach 99%.
5. Accurate air flow control: The exhaust fan is combined with Siemens inverter to accurately control the air flow rate for achieving perfect fluidization.
6. Good working condition: The whole system is working under negative pressure, so there is no powder leaking at all. Exhaust fan is equipped with silencer as well as isolated installation, the noise is below 75 dB(A).
7. Safety measures: The whole system adopts following measure to 100 % make sure safety during operation:
1) Function interlocked: All the function buttons in the control panel are interlocked (only proper operation steps can run the system) to prevent any mistakable operation to the machine.
2) Explosion proof: Granulation chamber is equipment with venting. When the pressure inside the chamber is getting higher than the rated one (say 2 bar), the rupture membrane will break to release the pressure.
3) Pressure monitoring: Pressure sensor is equipped to monitor pressure change inside the granulation chamber. When pressure is getting higher (especially when the bag filter is choked) and positive pressure condition is formed, electrical heater and exhaust fan will stop automatically and pressure release valve will open.

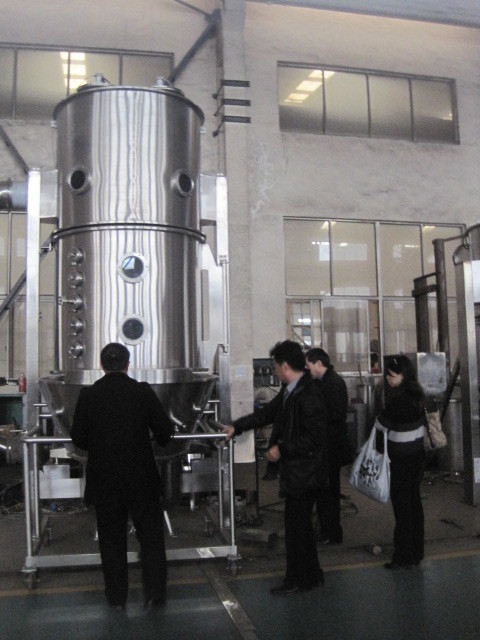

Fluidized Bed Granulator Machine Pharmaceutical , Tablet Making Machine 0
                                       (Main machine)
The powder granule in vessel (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Specification FL-5 FL-15 FL-30 FL-45 FL-60 FL-90 FL-120 FL-150 FL-200 FL-300 FL-500
Volume(L) 22 45 100 155 220 300 420 530 660 1000 1500
Capacity(kg/per time) 4/6 10/20 15/45 25/65 40/80 60/120 80/160 90/200 100/300 150/450 300/300
Power of fan(kw) 3 4 5.5 7.5 11 15 18.5 18.5 22 30 37

Consume steam

23 42 70 99 141 169 211 251 282 366 451

Consume compressed
air m3/min

1.3 0.3 0.4 0.4 0.6 0.6 0.9 0.9 0.9 1.3 1.5
Noise,db(A) (fan is installed separately)≤75
Overall dimension(m) 1.2x
