Fruit Juice Powder Granulator Machine fluidizing granulating Method

Place of Origin China
Brand Name YIBU
Certification ISO9001, ISO14001 , CE , SGS , UL CERTIFICATE
Model Number FL
Minimum Order Quantity 1 ser
Price Negotiation
Packaging Details Wooden case
Delivery Time 65 working days
Payment Terms LC , TT
Supply Ability 28 SETS/ YEAR

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Foodstuff / Chemical / Pharmaceutical Temp 50-180℃
Particle 20-80mesh Capacity 5-500kg/batch
Heating Source Steam / Electrical / Natural Gas / Diesel / Etc; Metal Material SUS316/SUS304/ CARBON STEEL ,ETC
Document FAT/ IQ / OQ / PQ
High Light

wet granulator machine

,

dry granulation machine

Leave a Message
Product Description

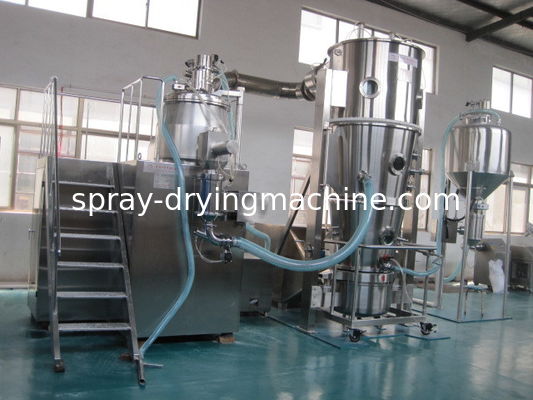

Fruit Juice SUS304 SUS316 Fluidized bed granulator for granulator machine for Food intgredient

YIBU” considers that Fluidized Granulating is an organic combination of mechanical design and manufacture technology. Therefore hundreds of Granulating machines either for China or exported to USA, Japan, Indonesia, Iran and many other countries are designed in accordance with the process of raw materials.

We have manufactured decades specifications and 150 different machines to meet different needs. These practical experiences will be very beneficial to customers.

Our proven fluidized bed granulator for granulation of solids using the top spray method for a uniform, reproducible quality. High process efficiency through extremely fast drying and gentle product handling. Suitable for batches of 3 to 1,000 kilograms per batch .Further batch sizes available upon request;



Principle

The powder granule in vessel (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Application:
1. Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine.
2. Foodstuff: cocoa, coffee, milk-powder, juice of granulate, flavoring and so on.
3. Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on.
4. Pharmaceutical industry: tablet.
Main properties:
1. Because of powder Granulation, the fluidity is improved and the dust is reduced;
2. Because of powder Granulation, its solving property is improved;
3. The mixing ,Granulating and drying can be completed in one step-inside the machine;
4. The operation of equipment is safe because the anti static filtering cloth is adapted;
5. The operation of personnel can not be damaged if explosion take place because there is releasing hole;
6. The equipment had no dead corner, Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP

Specification FL-5 FL-15 FL-30 FL-45 FL-60 FL-90 FL-120 FL-150 FL-200 FL-300 FL-500
Volume(L) 22 45 100 155 220 300 420 530 660 1000 1500
Capacity(kg/per time) 4/6 10/20 15/45 25/65 40/80 60/120 80/160 90/200 100/300 150/450 300/300
Power of fan(kw) 3 4 5.5 7.5 11 15 18.5 18.5 22 30 37

Consume steam

0.4MPa(kg/h)

23 42 70 99 141 169 211 251 282 366 451

Consume compressed

air m3/min

1.3 0.3 0.4 0.4 0.6 0.6 0.9 0.9 0.9 1.3 1.5
Noise,db(A) (fan is installed separately)≤75
Overall dimension(m) 1.2x
0.6x2.1
1.25x
0.9x2.1
1.6x
0.9x2.3
1.65x
1.1x2.4
1.85x
1.25x3
1.85x
1.25x3
2.2x
1.65x3.1
2.27x
1.72x3.1
2.34x
1.9x3.5
2.8x
1.9x3.8
3x
2.55x4.2
