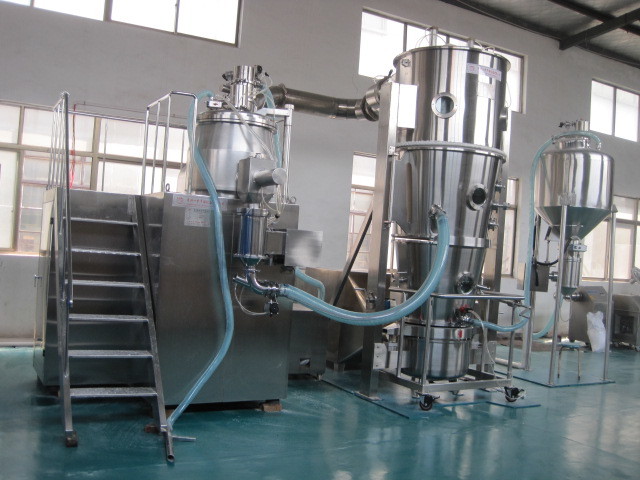

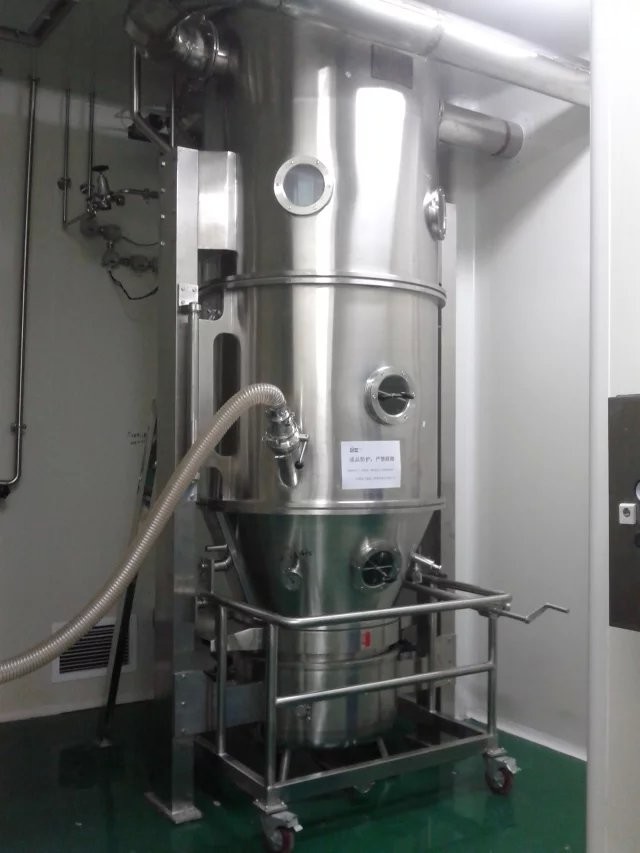

FG Series Fluid Bed Drying Machine for granulating machine in foodstuff industry

FG Series Fluid Bed Drying Machine for granulating machine in foodstuff industry

    • FG Series Fluid Bed Drying Machine for granulating machine in foodstuff industry
    • FG Series Fluid Bed Drying Machine for granulating machine in foodstuff industry
  • FG Series Fluid Bed Drying Machine for granulating machine in foodstuff industry

    Product Details:

    Place of Origin: China
    Brand Name: YIBU
    Certification: ISO9001 , ISO14001, SGS . CE , UL Certificate
    Model Number: FG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: wooden case
    Delivery Time: 45-60 days
    Supply Ability: 28 set per year
    Contact Now
    Detailed Product Description
    Material: SUS304 OR SUS316L Quality: High Quality
    Be Used For: Foodstuff Industry
    High Light:

    fluid bed granulator

    ,

    wet granulator machine

    Preface

    Fluidized bed drying can be used in the entire powder processing industry. In the pharmaceutical industry, this innovative method has replaced the time-consuming tray drying long ago: The drying process with fluidized bed drying reduces the drying time in the drying oven by approximately twenty times. In addition, fluidized bed drying provides controlled and uniform drying conditions compared to the uneven drying in trays.

    spec moisture to be
    evaporated(kg/h)
    power kw occupied area m2 heat efficiency(%)
    FG0.25 113 11 3.5x2.5 >60
    FG0.5 225 18.5 7x5 >60
    FG0.9 450 30 7x6.5 >60
    FG1.5 675 50 8x7 >60
    FG2.0 900 75 11x7 >60
    FG2.5 1125 90 12x8 >60
    FG3.0 1150 110 14x10 >60
    FG3.5 1491 110 14x10 >60


    For the process variants spray granulation, spray agglomeration or spray coating, it should be noted that not only the moisture needs to evaporate until it has reached a defined residual value, but also that drying takes place during the entire spray process. Too high inlet air temperatures can lead to insufficient liquid bridges, instable granulate structures or inhomogeneous looking films.

    Fluid bed to achieve fast heat transmission of medium.

    Seal negative pressure operation, there is no dust.

    Because of using anti-static material as filter, it is safe in operation;

    The equipment has no dead corner so it is easy to clean fully and there is no cross pollution;

    It is in conformity with the requirements of GMP.

    FG Series Fluid Bed Drying Machine for granulating machine in foodstuff industry 0





    Features:

    1. Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the work chamber, the state of fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly.



           2.No matter whether the product was produced in the fluidized bed or a high-shear mixer, whether in batch or continuously: With fluidized bed drying, it must be ensured that drying always takes place in a thermodynamic equilibrium. The inlet air temperature must be selected such that only so much moisture evaporates from the surface of the granulate as is transported through the capillaries from the interior of the granulate to the surface. If the inlet air temperature is too high, a surface crust will most likely form which will hamper or even prevent the moisture being transported from deeper layers to the outside. This will delay the entire drying process rather than accelerate it
