Mirror Polishing Powder Granulator Machine , Pharmaceutical DRYING Equipment

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | SUS304 OR SUS316L | Be Used For | Foodstuff Industry |
---|---|---|---|
Function | Be Cleaned No Dead Angle | Principle | Drying Material |
Condition | Granulate | ||
Highlight | fluid bed granulator,dry granulation machine |
Preface
YIBU” considers that Fluidized Granulating is an organic combination of mechanical design and manufacture technology. Therefore hundreds of Granulating machines either for China or exported to USA, Japan, Indonesia, Iran and many other countries are designed in accordance with the process of raw materials.
We have manufactured decades specifications and 150 different machines to meet different needs. These practical experiences will be very beneficial to customers.
Our proven fluidized bed granulator for granulation of solids using the top spray method for a uniform, reproducible quality. High process efficiency through extremely fast drying and gentle product handling. Suitable for batches of 3 to 1,000 kilograms per batch .Further batch sizes available upon request;
Principle :
The powder granule in vessel (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Our processes for agglomeration and granulation have the purpose of shaping powder solids. The goal of these technologies is to make product handling easier and to enhance the properties of the starting material for dosage or further processing.
Depending on the starting substance, area of application and target parameters to be defined, various methods can be selected. In selecting the optimum process technology, production-specific aspects, such as processing time or use of resources should be considered in addition to the product properties.

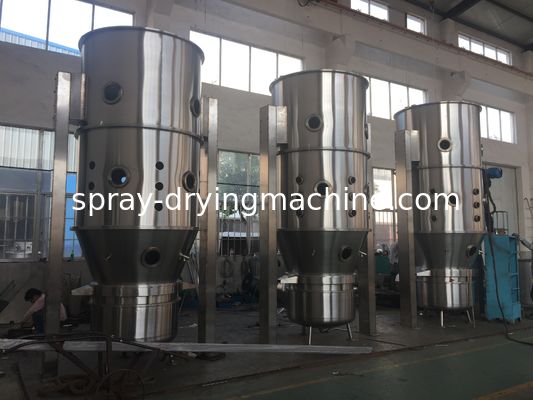

Some parts of the equipment making at site for reference;
Specification | FL-5 | FL-15 | FL-30 | FL-45 | FL-60 | FL-90 | FL-120 | FL-150 | FL-200 | FL-300 | FL-500 |
Volume(L) | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 530 | 660 | 1000 | 1500 |
Capacity(kg/per time) | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
Power of fan(kw) | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 |
Consume steam 0.4MPa(kg/h) |
23 | 42 | 70 | 99 | 141 | 169 | 211 | 251 | 282 | 366 | 451 |
Consume compressed air m3/min |
1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
Noise,db(A) | (fan is installed separately)≤75 | ||||||||||
Overall dimension(m) | 1.2x 0.6x2.1 |
1.25x 0.9x2.1 |
1.6x 0.9x2.3 |
1.65x 1.1x2.4 |
1.85x 1.25x3 |
1.85x 1.25x3 |
2.2x 1.65x3.1 |
2.27x 1.72x3.1 |
2.34x 1.9x3.5 |
2.8x 1.9x3.8 |
3x 2.55x4.2 |
