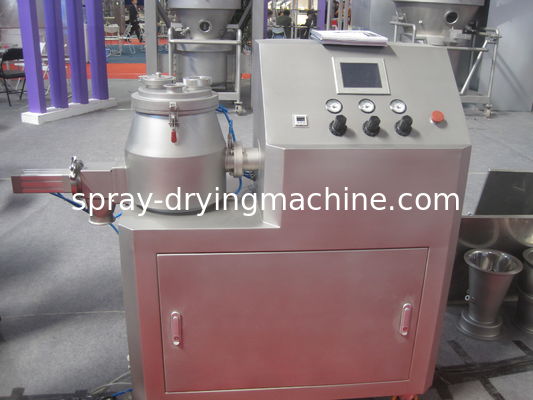

Cocoa Powder High Shear Mixer Granulator Wet Granulation Machine No Dead Angle

Place of Origin China
Brand Name YIBU
Certification ISO9001, ISO14001 , CE , SGS , UL CERTIFICATE
Model Number GHL
Minimum Order Quantity 1 ser
Price Negotiation
Packaging Details Wooden case
Delivery Time 65 working days
Payment Terms LC , TT
Supply Ability 28 SETS/ YEAR

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certificate ISO9001&14001 Be Used For Foodstuff Industry
Features No Dead Angle Be Specialized In Foodstuff Industry
Control HMI Particle 20-80mesh
High Light

fluid bed granulator

,

dry granulation machine

,

Cocoa Powder wet granulation machine

Leave a Message
Product Description

Preface



YIBU” considers that the machine adopts horizontal cylinder structure, its structure reasonable. Air filled seal shaft for to drive. When washed , it can be loaded into water. Fluidized Granulation, the granule is around ball shape. Its flow ability is good. Compared to traditional process, 25% of adhesive can be reduced and the drying time is short. The dry mixing time is 2 minutes and the granulating time is 1-4 minutes. Compared to the traditional process , 4-5 times of efficiency is raised.

Dry mixing ,humid mixing and granulating are finished in the same sealed container. It is in conformity with the requirements of GMP. The whole operation has strict safe and protective measures. Jacket type might be adopted on request

We have manufactured decades specifications and 150 different machines to meet different needs. These practical experiences will be very beneficial to customers.

High process efficiency through extremely fast drying and gentle product handling. Suitable for batches of 10 to 800Liter per batch .Further batch sizes available upon request;



Application



The machine is a process machine widely applied for solid preparation production in the pharmaceutical industry. It has such functions as mixing, granulating, etc. It is widely used in such industries as medicine, food, chemical industry, etc.



Work principle


The powder materials are fed into the mixing vessel through the dispensing system. Through rotation and push by the mixing paddle at the bottom, they first move under a fluidizing status and get sufficient mixing. Then the adhesive is injected through the pressure spray gun to turn the dry powders into wet and soft materials. Meanwhile, they are made into even wet granules under the double actions of the mixing paddle and the high-speed cutter on the side wall.



Features



1. The whole machine is made of high quality stainless steel.



2. It is provided with special mixing barrel and conical column of a compound structure. The corners on the inner wall are subject to smooth transition and mirror polishing with easy cleaning and without material sticking.



3. The mixing and granulating procedure can be completed in one step with the materials in the closed mixing barrel.



4. It adopts PLC control. The mixing and granulating motors are subject to variable frequency speed adjustment. All operations can be carried out automatically or manually.



5. It is provided with interlocking protection device to ensure safer operation.



6. It is equipped with printer to automatically print all process parameters, with the original records conforming to the actual ones.

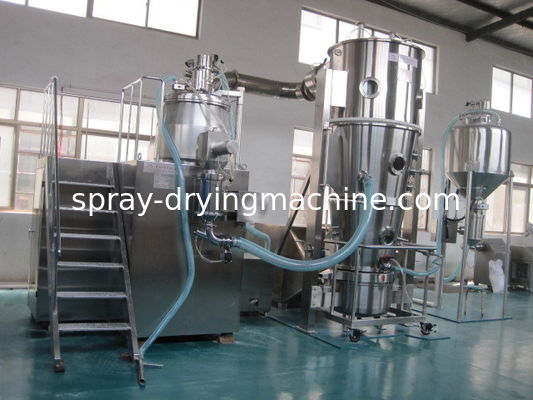

7. It can be equipped with wet granulation machine and swing granulator and connect with fluidized bed dryer to form a fully closed granulating production line.



Technical Parameter

item specifcation
name unit 10 50 150 200 250 300 400 600
capacity L 10 50 150 200 250 300 400 600
output kg/batch 3 15 50 80 100 130 200 280
admix speed r.p.m 300/600 200/400 180/270 180/270 180/270 140/220 106/155 80/120
admix power kw 1.5/2.2 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30
incise speed r.p.m 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000
incise power kw 0.85/1.1 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11
overall dimension m 1.35*
0.7*
1.15
1.65*
0.85*
1.35
1.8*
0.8*
1.4
2.1*
0.85*
1.5
2.05*
0.85*
1.5
2.2*
0.9*
1.55
2.35*
1.05*
1.55
2.4*
1.05*
1.65
