Top Spray Granulation Fluidized Bed Dryer Granulator Machine Sealed Circulating

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xBe Used For | Foodstuff Industry | Feature | No Dead Angle |
---|---|---|---|
Applications | Cocoa, Coffee, Milk Powder , Juice Of Granulate | The Material Of The Machine | SUS304 Or SUS316L |
Motor | ABB / SIEMENS/ | Document | FAT/ IQ / OQ / PQ |
Highlight | fluid bed granulator,dry granulation machine,fluidized foodstuff granulation machine |

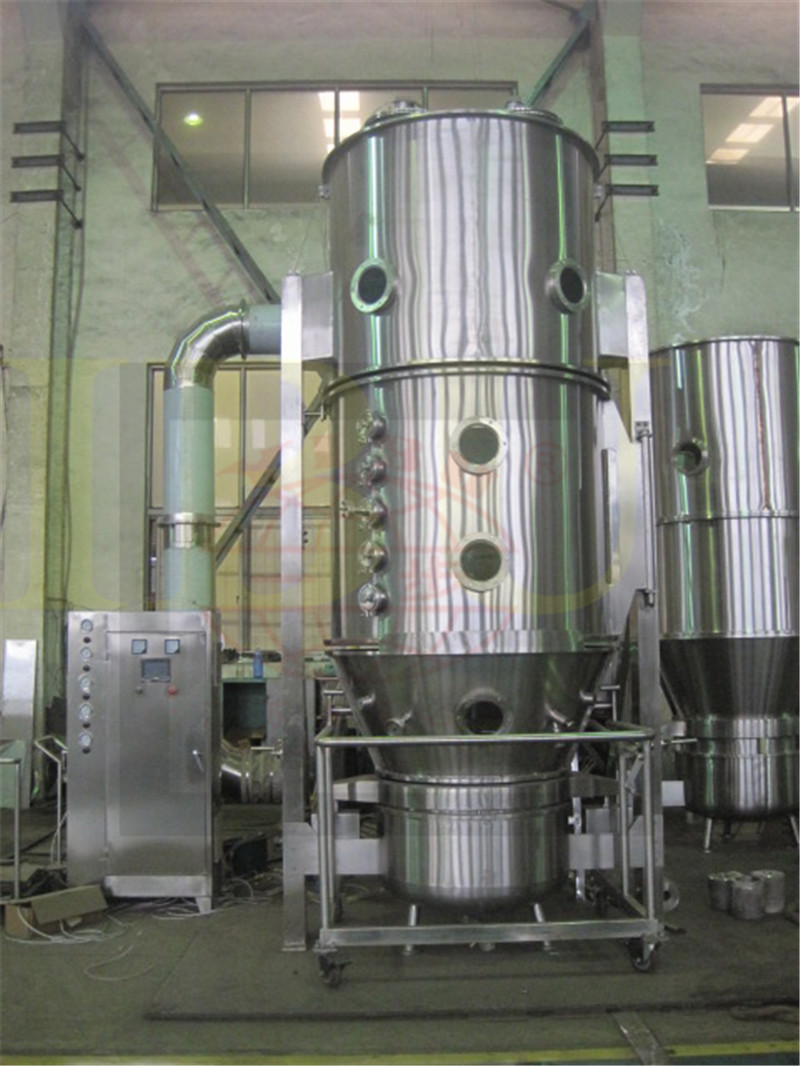

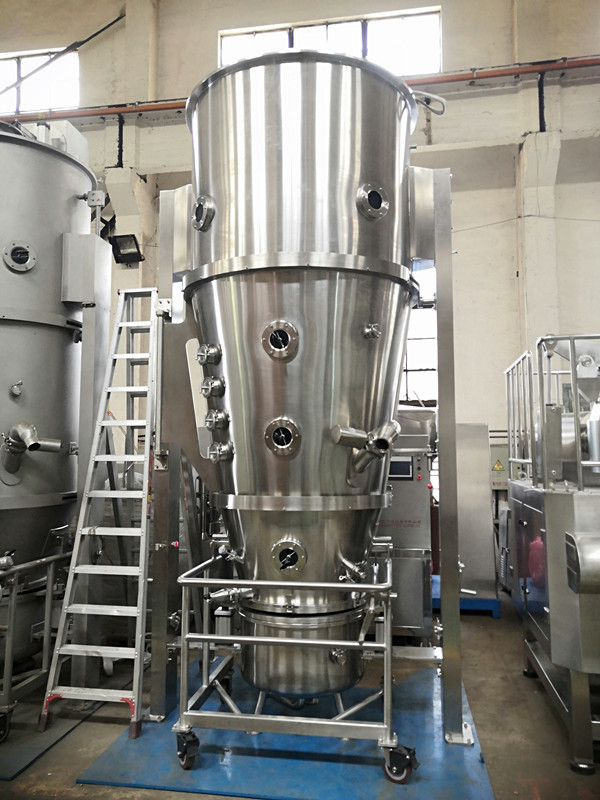

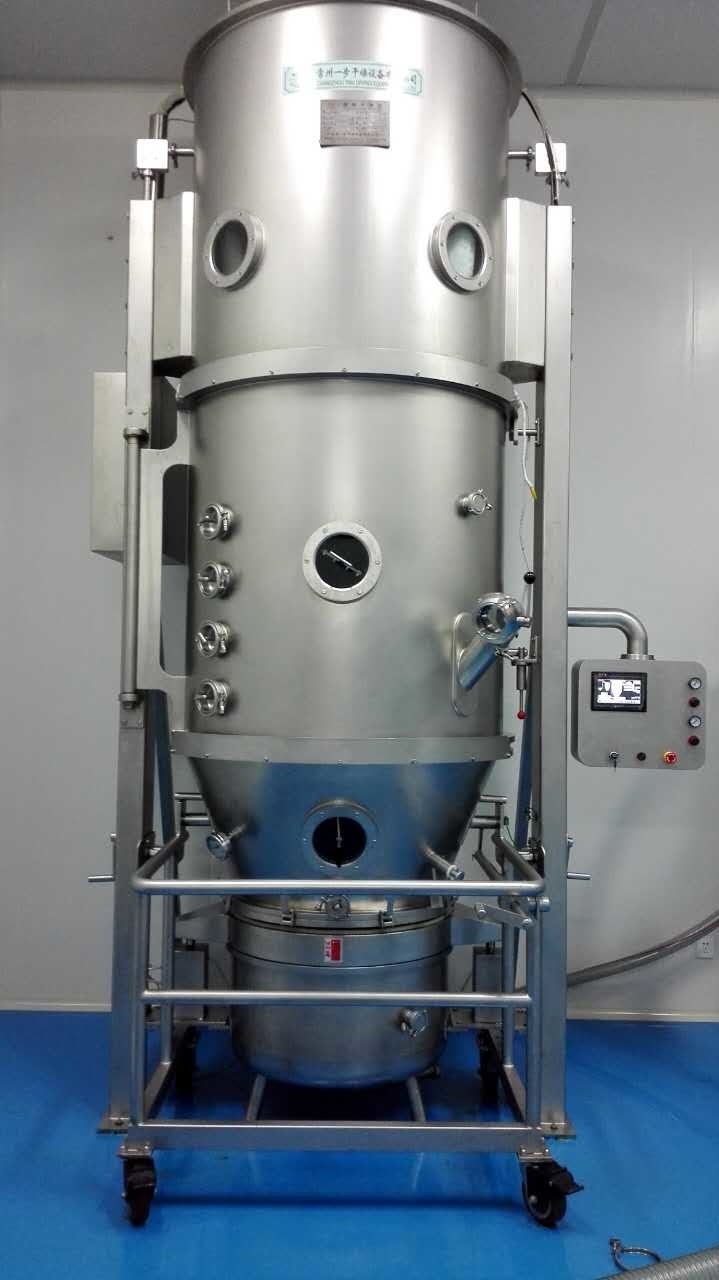

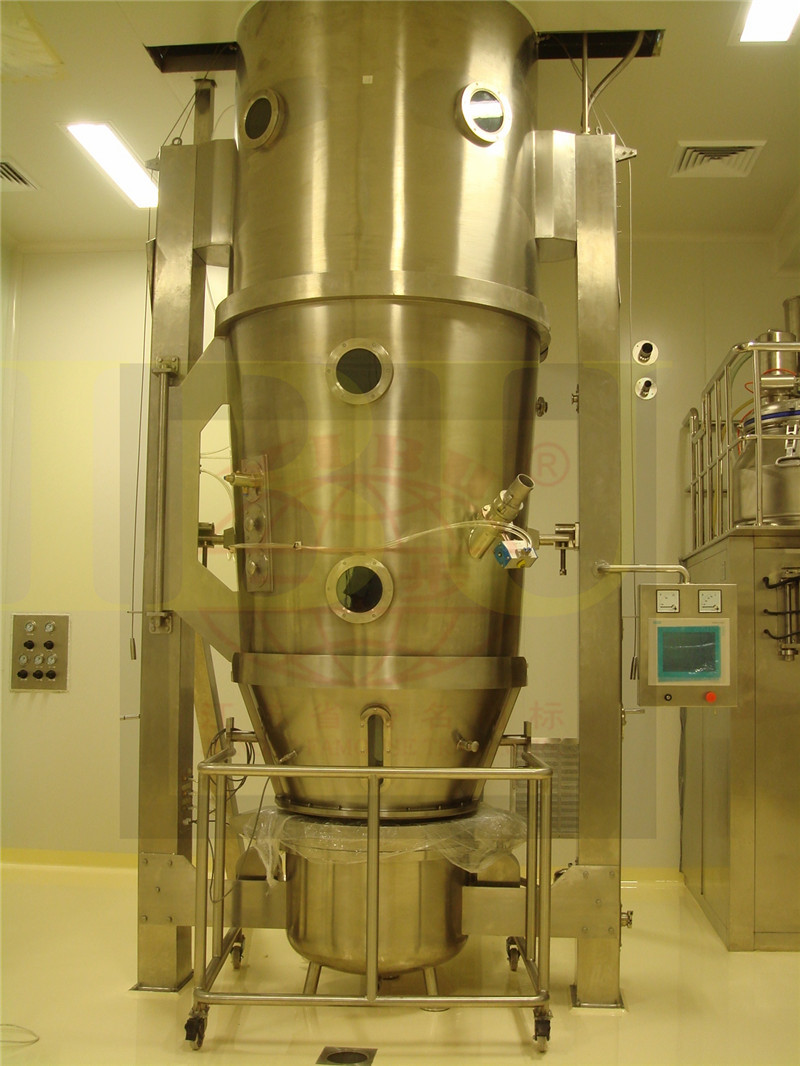

FL-F Fluidized Foodstuff Granulator Machine (Granulating machine) (Granulation machine )( Granulating equipment, granulation equipment, Fluid bed spray granulation, Spray agglomeration )
Preface
YIBU” considers that Fluidized Granulating is an organic combination of mechanical design and manufacture technology. Therefore hundreds of Granulating machines either for China or exported to USA, Japan, Indonesia, Iran and many other countries are designed in accordance with the process of raw materials.
We have manufactured decades specifications and 150 different machines to meet different needs. These practical experiences will be very beneficial to customers.
Our proven fluidized bed granulator for granulation of solids using the top spray method for a uniform, reproducible quality. High process efficiency through extremely fast drying and gentle product handling. Suitable for batches of 3 to 1,000 kilograms per batch .Further batch sizes available upon request;
Description
The machine is mainly used for the operations of mixing, granulating,drying and coating of granule
“Top Spraying”. Etc of powder material in pharmaceutical industry , foodstuff industry,chemical industry
etc. Such as granule of tablet, granule for quick resolving drinking, condiment. Designed and manufactured
in accordance with JB20014-2004.
Working principle
The powder granule in the container(fluidization bed) appear the state of fluidization. It is preheated
and mixed with clean and hot air. At the same time the solution of adhesive solvent is fogged and
sprayed into the container. It makes some of particles become granulating that contains adhesive.
Being of unceasing dry through hot air. The moisture in the granulating is evaporated and the adhesive
is solidification . The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Feature
1. The mixing,granulating and drying can be completed in one step inside the machine.High mixing
and drying efficient with high uniform product output
2. The operation personal can not be damaged if explosion take place because of the releasing hole;
3. Lifting and Turn-over discharging or vacuum discharging is optional , quick and light and clean.
Meet dust free production requirement of GMP.
4. Adopt PLC control, operation process can be settled and recorded and printed.
5. Equipped with primary, intermediate and advanced three grade filter systems for inlet air and high
precision temperature auto PID control with hot and cold air door.
6. Dehumidifier system and WIP online cleaning system are for option
7. Easy to maintain and cleaning without dead corner
Application
Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese Medicine.
Foodstuff: cocoa, coffee, milk powder, juice of granulate,flavoring and so on.
Other industrial: peticide, feed chemical fertilizer, pigment, dyestuff and so on.
Drying: powder or granule material

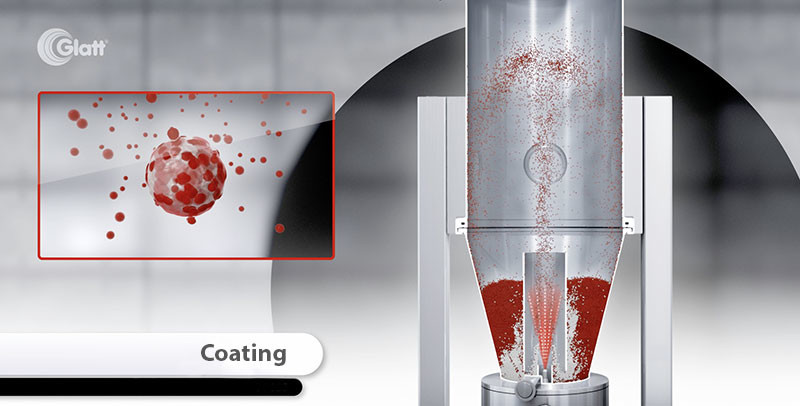

Coating :granular , protecting coat of pellet, spare color, slow release film, bowel-dissolve coating etc.

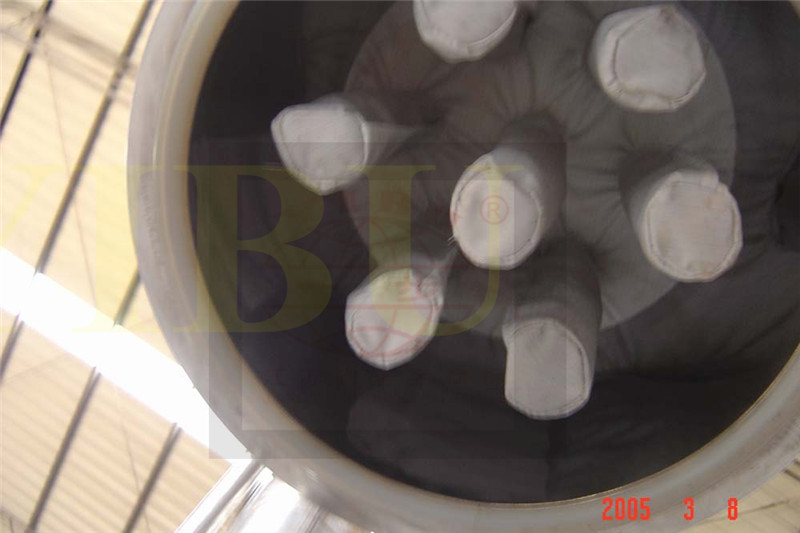

( Filter bag)
Our Advantages
1. We use high-end imported brands of instruments and processing machines, to create superior quality machine for you ; YIBU makes you feel free about the after-sales service.
2. We provide the spare parts with the cost of the spare parts themselves for lifelong time .
3. We can make the machine based on the customer request .
4. For the material for the machine ,we have several kinds of raw material for choice Such as SUS304 ,316L , carbon steel as well as others .
5. For the heating source for the machine , we can make it based on the available facility at customer site ,such steam ,electricity ,gas-furnace and so on.
6. we invited and pointed Professor Arun s. Mujumdar, the lifetime chairman of International Drying Conference and the winner of “Friendship Award” of the Chinese government as our technical consultant as to keep YIBU machine with the world advantage technology
7. We have R&d team ,and can help customer to design his process of the product .
8. For the motor , we have more choices , such ABB,,Siemens and so on .
9. For the burner , we have choices of Usgas ,Rellio or other international brand .
11. For shaft , we can choose SKF ,Japan NSK bearings. etc .
12. Our machine we can design with explosion proof , dust -free, water-free , sealed circulating .
13. Guarantee /warranty :1year calculating from the day of successful installation and commissioning.
14. Package : wooden packing . Special fumigation -free wooden material . Or according to customer requirement .
15. Product special features : A. Dust-proof ,heat-proof ,oil -proof ,explosion -proof . B. Green, Environment performance
Specification | FL-5 | FL-15 | FL-30 | FL-45 | FL-60 | FL-90 | FL-120 | FL-150 | FL-200 | FL-300 | FL-500 |
Volume(L) | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 530 | 660 | 1000 | 1500 |
Capacity(kg/per time) | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
Power of fan(kw) | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 |
Consume steam 0.4MPa(kg/h) |
23 | 42 | 70 | 99 | 141 | 169 | 211 | 251 | 282 | 366 | 451 |
Consume compressed air m3/min |
1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
Noise,db(A) | (fan is installed separately)≤75 | ||||||||||
Overall dimension(m) | 1.2x 0.6x2.1 |
1.25x 0.9x2.1 |
1.6x 0.9x2.3 |
1.65x 1.1x2.4 |
1.85x 1.25x3 |
1.85x 1.25x3 |
2.2x 1.65x3.1 |
2.27x 1.72x3.1 |
2.34x 1.9x3.5 |
2.8x 1.9x3.8 |
3x 2.55x4.2 |
