Chemical Powder Industrial Mixing Machine Multi Direction Rotoray Heavy Duty

Chemical Powder Industrial Mixing Machine Multi Direction Rotoray Heavy Duty

  • High Light

    industrial mixing equipment

    ,

    industrial blending machine

  • Metal Material
    SUS316/SUS304/ CARBON STEEL ,ETC
  • Volume
    30 – 10000L
  • Motor
    ABB/ SIEMENS /
  • Document
    FAT/ IQ / OQ / PQ
  • Power
    Customized
  • Control System
    PLC+HMI / Button Control
  • Place of Origin
    CHINA
  • Brand Name
    YIBU
  • Certification
    CE / UL / SGS / EAC / CR – TU
  • Model Number
    ZKH(V)
  • Minimum Order Quantity
    1 set
  • Price
    Negotiation
  • Packaging Details
    Woodencase
  • Delivery Time
    10 weeks
  • Payment Terms
    L/C, T/T
  • Supply Ability
    20 SETS PER MONTH

Chemical Powder Industrial Mixing Machine Multi Direction Rotoray Heavy Duty

SUS304 SUS316L ZKH(V) Series Mixing Machine (mixer) Industrial Mixing Machine for pharmaceutical industry

Description

This machine is suitable for mixing two or more of raw material powder or granule. It is widely used for pharmaceutical industry, chemical industry, foodstuff industry and so on.

The structure of this machine is simple. Its mixing efficiency is high and no dead corner. It is made of stainless steel. It’s inner and outer wall is processed through polishing. Its scope of application is wide. The stirrer can be equipped by the requirements of raw materials that contain fine powder, block and certain moisture as request.

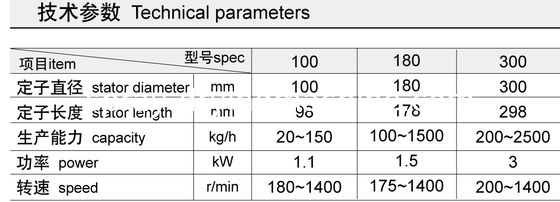

Technical Parameters



Chemical Powder Industrial Mixing Machine Multi Direction Rotoray Heavy Duty 0

Feature

ZKH(V) mixing machine (v-mixer, V-mixing machine ,v-mixing equipment, v -blender, v-blending machine, V-blending equipment) is with features as bellow:
1. The structure of mixing barrel is unique.
2. The mixing efficiency is high, and there is no dead angle.
3. The barrel is made of stainless steel and its internal walls are polished.
4. The outside appearance is beautiful. The mixing is uniform, with wide application, meeting GMP standard.
5. The feeding system for the mixer has more choice, such as vacuum feeding system, screw feeding system and other kinds of feeding systems. It can be designed based on the customer specific conditions.
6. Control system has more choice, such as push button, HMI+PLC and so on.

Chemical Powder Industrial Mixing Machine Multi Direction Rotoray Heavy Duty 1





TECHNICALPARAMETERS

Item

Model

Total Volume
L

Working Volume

L

Feeding Capacity
kg
Rotating Speed
rpm
Power
kw
Weight
kg
0.05 50 25 15 25 0.55 500
0.15 150 75 45 20 0.75 650
0.3 300 150 90 20 1.1 820
0.5 500 250 150 18 1.5 1250
1 1000 500 300 15 3 1800
1.5 1500 750 450 12 4 2100
2 2000 1000 600 12 5.5 2450
3 3000 1500 900 9 5.5 2980
4 4000 2000 1200 9 7.5 3300
5 5000 2500 1500 8 7.5 3880
6 6000 3000 1800 8 11 4550
8 8000 4000 2400 6 15 5200
10 10000 5000 3000 6 18.5

6000
