Two Dimension Industrial Mixing Machine , Pharmaceutical Mixers Blenders

  • Two Dimension Industrial Mixing Machine , Pharmaceutical Mixers Blenders
  • Two Dimension Industrial Mixing Machine , Pharmaceutical Mixers Blenders
  • Two Dimension Industrial Mixing Machine , Pharmaceutical Mixers Blenders
Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number EYH
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Woodencase
Delivery Time 10 WEEKS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Metal Material SUS316/SUS304/ CARBON STEEL ,ETC Volume 20-10000L
Document FAT/ IQ / OQ / PQ Motor ABB/ SIEMENS /
Power Supply Customized Control System PLC+HMI / Button Control
Highlight

industrial mixing equipment

,

industrial blending equipment
Leave a Message
Product Description

SUS 304 SUS 316LEYH Series Two Dimension Industrial Mixing  Machine for pharmaceutic

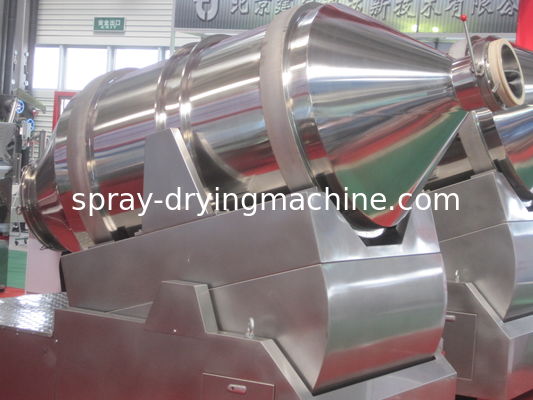

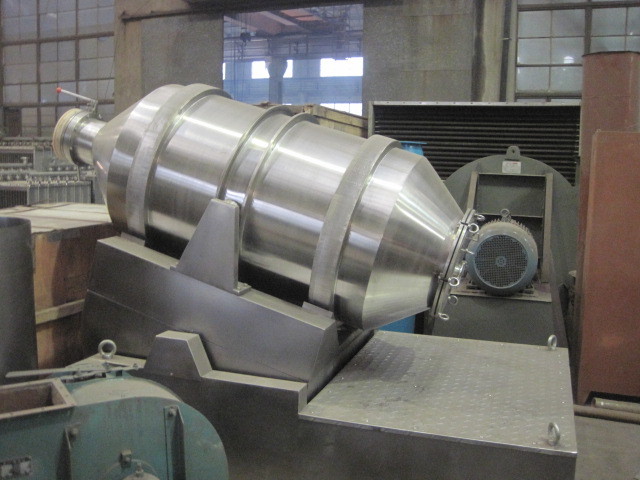

◆ EYH Series Two Dimensions mixer mainly consists of three important parts such as rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four rolling wheels, and its axial fixation is done by two stop wheels, while the other two wheels are driven by rotating system to make the cylinder rotate. The swinging rack is driven by a set of crankshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame by the shaft combing device.



Model
volume
(L)
feed rate
feed weight(kg)		 Overall dimension(mm) powewr(kw)
A B C D M H rotiaotn sway
EYH100 100 0.5 40 860 900 200 400 1000 1500 1.1 0.75
EYH300 300 0.5 75 1000 1100 200 580 1400 1650 1.1 0.75
EYH600 600 0.5 150 1300 1250 240 720 1800 1850 1.5 1.1
EYH800 800 0.5 200 1400 1350 240 810 1970 2100 1.5 1.1
EYH100 1000 0.5 350 1500 1390 240 850 2040 2180 2.2 1.5
EYH1500 1500 0.5 550 1800 1550 240 980 2340 2280 3 1.5
EYH2000 2000 0.5 750 2000 1670 240 1100 2540 2440 3 2.2
EYH2500 2500 0.5 950 2200 1850 240 1160 2760 2600 4 2.2
EYH3000 3000 0.5 1100 2400 1910 280 1220 2960 2640 5 4
EYH5000 5000 0.5 1800 2700 2290 300 1440 3530 3000 7.5 5.5
EYH10000 10000 0.5 3000 3200 2700 360 1800 4240 4000 15 11
EYH12000 12000 0.5 4000 3400 2800 360 1910 4860 4200 15 11
EYH15000 15000 0.5 5000 3500 3000 360 2100 5000 4400 18.5 15



1. The rotating cylinder of EYH series Two Dimensions mixer can make two motions at the same time. One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack Materials to be mixed will be rotated when the cylinder is rotating, and will be mixed from left to right and vice versa when the cylinder is swinging. As the result of these two motions, materials can be mixed fully in a short time.The EYH Two Dimensions Mixer is suitable for mixing of all powder and granule materials.
2. Control system has more choices, such as push button, HMI+PLC and so on which are available .
3. The feeding system for this mixer can be by manual or pneumatic conveyor or vacuum feeder or screw feeder and so on.
Remarks: If customer has any special requirements, please make a special order.

Two Dimension Industrial Mixing Machine , Pharmaceutical Mixers Blenders 0

This mixer are widely used in pharmaceutical, chemical, food, dye, feed, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume.
