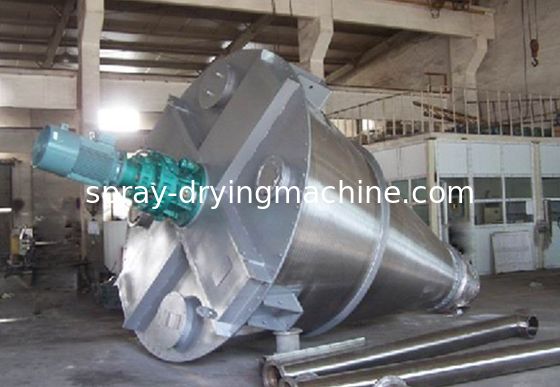

Industrial Baking Food Mixers And Blenders Double Screw Cone

Industrial Baking Food Mixers And Blenders Double Screw Cone

  • High Light

    industrial mixing equipment

    ,

    industrial blending machine

  • Metal Material
    SUS316/SUS304/ CARBON STEEL ,ETC
  • Volume
    30 – 10000L
  • Power
    Customized
  • Motor
    ABB/ SIEMENS /
  • Document
    FAT/ IQ / OQ / PQ
  • Control System
    PLC+HMI / Button Control
  • Place of Origin
    CHINA
  • Brand Name
    YIBU
  • Certification
    CE / UL / SGS / EAC / CR – TU
  • Model Number
    DSH
  • Minimum Order Quantity
    1 set
  • Price
    Negotiation
  • Packaging Details
    Woodencase
  • Delivery Time
    10 2eeks
  • Payment Terms
    L/C, T/T
  • Supply Ability
    20 SETS PER MONTH

Industrial Baking Food Mixers And Blenders Double Screw Cone

SUS304 SUS316 DSH Series Double screw cone Mixing Machine(double –screw cone mixer) Industrial Mixing Machine

◆ DSH Double cone screw mixing machine (double screw cone mixer, Nauter mixer) is new type high-efficiency and precise mixer, it's suitable for mixing the powder state materials in the pharmaceutical, chemical, food, instant soluble and other industries.
◆ The machine structure is reasonable and its external appearance is beautiful. All the sections of contacting the materials use the stainless steel.



1. The machine is a new type high-efficient and precise mixer, it's suitable for mixing the powder state materials in the pharmaceutical, chemical, food, instant soluble and other industries.
2. The machine structure is reasonable and its external appearance is beautiful. All the sections of contacting the materials use the stainless steel.
3. The feeding system for this mixer can be by manual or pneumatic conveyor or vacuum feeder or screw feeder and so on

1. For the feeding system, you can choose vacuum feeder or negative feeding system or manual type.
2. For the cleaning, you can choose simple type (spray gun or nozzle), also you can choose WIP or SIP.
3. For the control system, there are push button and HMI+PLC on choice.
4. Material for the machine: ISI 304L, AISI SUS304, carbon steel, AISI SUS316L, AISI SUS316 and other materials.



Model Whole volume(m³) Load factor Installed power(KW) Operational condition Outline dimension(mm) Weight(kg)
DSH-0.1 0.1 ≤0.6 1.5 Normal temp.&pressure Dust seal 1569×Φ702 250
DSH -0.3 0.3 ≤0.6 2.2 1929×Φ920 550
DSH -0.5 0.5 ≤0.6 3 2322×Φ1124 660
DSH -1.0 1 ≤0.6 4 2869×Φ1480 1200
DSH -1.5 1.5 ≤0.6 5.5 3140×Φ1633 1350
DSH -2.0 2 ≤0.6 5.5 3489×Φ1816 1500
DSH -3.0 3 ≤0.6 7.5 3747×Φ2210 2300
DSH -4.0 4 ≤0.6 11 4362×Φ2280 2520
DSH -5.0 5 ≤0.6 15 4576×Φ2402 3000
DSH -6.0 6 ≤0.6 15 4900×Φ2582 3150
DSH -8.0 8 ≤0.6 18.5 5405×Φ2805 4500
DSH -10 10 ≤0.6 20.7 5795×Φ3018 5500
DSH -15 15 ≤0.6 24.2 6475×Φ3450 6600
DSH -20 20 ≤0.6 41 7535×Φ3805 7000
DSH -25 25 ≤0.6 41 7995×Φ4078 8500
DSH -30 30 ≤0.6 52.5 8385×Φ4330 9200



1. The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99% , and the volume charge coefficient reaches 0.8.
2. Low rotating height, smooth running, reliable performance, easy operation.
3. Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Confining to the requirement of GMP.
4. The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99% ,and the volume charge coefficient reaches 0.8.
5. Low rotating height, smooth running, reliable performance, easy operation.
6. Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Confining to the requirement of GMP.
7. The control system has more choices, such as push button ,HMI+PLC and so on.
8. The feeding system for this mixer can be by manual or pneumatic conveyor or vacuum feeder or screw feeder and so on.
