HYG Series Metal Powder Hot Air Dryer Machine , Rotary Drum Dryer

HYG Series Metal Powder Hot Air Dryer Machine , Rotary Drum Dryer

    • HYG Series Metal Powder Hot Air Dryer Machine ,  Rotary Drum Dryer
    • HYG Series Metal Powder Hot Air Dryer Machine ,  Rotary Drum Dryer
    • HYG Series Metal Powder Hot Air Dryer Machine ,  Rotary Drum Dryer
    • HYG Series Metal Powder Hot Air Dryer Machine ,  Rotary Drum Dryer
  • HYG Series Metal Powder Hot Air Dryer Machine ,  Rotary Drum Dryer

    Product Details:

    Place of Origin: CHINA
    Brand Name: YIBU
    Certification: CE / UL / SGS / EAC / CR – TU
    Model Number: HYG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Woodencase
    Delivery Time: 10 WEEKS
    Payment Terms: L/C, T/T
    Supply Ability: 20 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Matal Material: SUS316/SUS304/ CARBON STEEL ,ETC Heat Source: Steam / Electrical / Natural Gas / Diesel / Etc;
    Temp: 100-500℃ Power: Customized
    Weight: 3000-20000kg Capacity: 500kg- 5000kg
    High Light:

    rotary drying machine

    ,

    rotary vacuum dryer

    Metal powder HYG Series Rotary barrel hot air dryer machine(Rotary barrel dryer)



    Dryer Introduction:


    Dryer is mainly used for drying wet materials in building construction, metallurgy and chemical industries. It can dry various materials with strong adaptability. Besides, it is a common drying device in cement plant with simple and reliable operation.


    In our company, this series applies the new type scatter plate device, and it has many functions, such as guide direction, flow on an average, scatter the material and so on. And it can make the material in the thin, average and complete condition. Contact with the heat airflow completely and use the heat energy fully. Moreover, it adopts reasonable operational parameter, and compared with general dryers, it reduces the coal and power consumption above 10-15%,and increase the output above 10-15% . At present, it is widely used in cement and miningindustries.



    It mainly consists of revolution body, raise material board, transmission device, supportive device and sealing ring, etc.



    The heat sources of the drier is from the combustion train, and is adopts down-flow heating methods. When the materials enter into the body from the feeding device, it will be pushed back by the spire raising board. As the drier is in an inclined position, the materials will be down to the lower end under the influence of gravity and rotation, but the raising board will be threw to the upper end for scattering. This procession makes the material well-distributed in the body, and then ensure the heat exchange with the heat wind. After repeated cycle with this procession, the moisture content will be dried.
    Structures

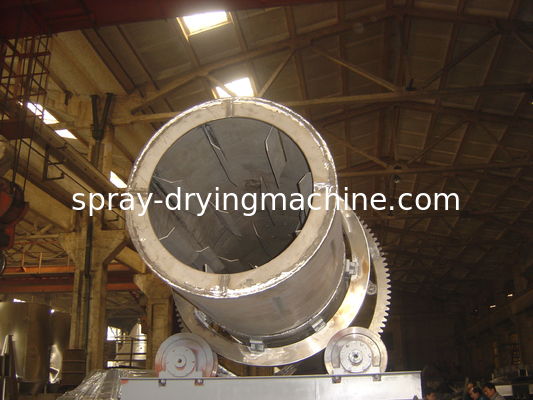

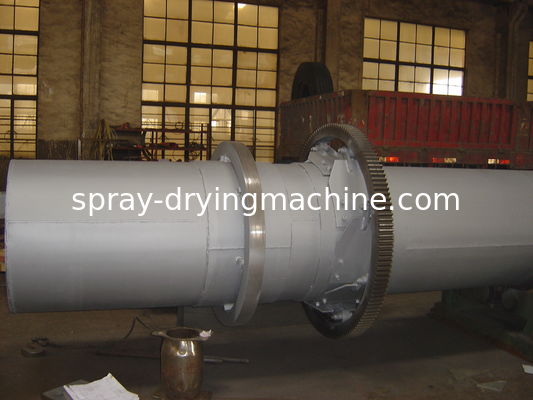

    The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
    Features

    Model Direct heating clockwise flow spec Direct heating clockwise flow spec Heat directly countercurrent spec

    Heat directly
    countercurrent spec

    Complex heat Complex heat
    Kinds of raw material ore vesiccant blast fumace ammonium sulfate phosphorus fertilizer coal
    Amount to be treated kg/h 1000 466 15000 20000 12000 5000
    Primary moisture % 30 13 6 1.5 5 6.5
    Final moisture % 15 0.3 1 0.1 0.1 0.1
    Average diameter mm 6.5 0.05 4.7 0.5-1.7 0.5 5
    Bulk density of raw material kg/m2 770 800 1890 1100 1500 750
    Amount of hot air kg/h 39000 5400 10750 9800 6500 16000
    Temperature of air at inlet ℃ 600 165 500 180 650 570
    Temperature of raw material at outlet ℃   42 100 70 80 75
    Way of heating gas electric heating heavy oil fuel hot furnace heavy oil heavy oil
    Loading efficiency %   6.3 7 7.5 7.8 18
    Revolution r.p.m 4 4 3.5 3 4 2
    gradient m/m 0.04 0.005 0.03 0.05 0.05 0.043
    Quantity of stirring-up rake 12 24 12 22 outer of inner cylinder 8
    inner of out cylinder 16
    6
    12
    Diameter of dryer m 2.0 1.5 2 2.3 out cylinder 2 inner cylinder 0.84 out cylinder 2.4 inner cylinder 0.95
    Length of dryer m 20 12 17 15 10 16
    Driving power Kw 22 7.5 15 11 11 15

    1. The motorization level of the barrel is high, and the production capacity is high;
    2. The resistance that the material passes through the barrel is less, and the power consumption is low.
    3. Application capability to different characters of materials is high.
    4. The operation is stable, the operation fee is low, and the uniformity of product drying is good.
    5.The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
