High Performance Wood Chip Hot Air Dryer Machine CS / SUS304 Material

High Performance Wood Chip Hot Air Dryer Machine CS / SUS304 Material

    • High Performance Wood Chip Hot Air Dryer Machine CS / SUS304 Material
    • High Performance Wood Chip Hot Air Dryer Machine CS / SUS304 Material
    • High Performance Wood Chip Hot Air Dryer Machine CS / SUS304 Material
    • High Performance Wood Chip Hot Air Dryer Machine CS / SUS304 Material
  • High Performance Wood Chip Hot Air Dryer Machine CS / SUS304 Material

    Product Details:

    Place of Origin: CHINA
    Brand Name: YIBU
    Certification: CE / UL / SGS / EAC / CR – TU
    Model Number: HYG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Woodencase
    Delivery Time: 10 WEEKS
    Payment Terms: L/C, T/T
    Supply Ability: 20 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Matal Material: SUS316/SUS304/ CARBON STEEL ,ETC Heat Source: Steam / Electrical / Natural Gas / Diesel / Etc;
    Temp: 100-500℃ Power: Customized
    Weight: 3000-20000kg Capacity: 500kg- 5000kg
    High Light:

    rotary drum dryer

    ,

    rotary vacuum dryer

    Wood chips HYG Series Rotary barrel hot air dryer machine(Rotary barrel dryer)

    1.Small wood chips rotary drum dryer application:

    1) Ore: ore,slag,mineral power,limestone, quartz, fluorite powder,iron ore,metal ore concentrates, metal tailings,etc.
    2) Metal: metal powder, iron powder, iron filings, steel scrap, copper filings, etc.
    3) Chemical industry: gypsum powder of desulphurization gypsum stir-frying half water model and building gypsum powder,clay,diatomaceous earth, kaolin,bauxite
    4) Coal: raw coal,coal slime, coal,coal ash,coal cinder
    5) Sand: sand,quartz sand,moulding sand,river sand
    6) Various crystals: light calcium carbonate, activated clay, magnetic powder, graphite, mineral mud, clay, lime slurry, ore slurry, phosphorus slag, aluminum red mud, feldspar powder, fly ash, blue carbon, potassium, sodium, calcium, barium and alkali metal or silicate minerals in the alkali metal.
    7) Wood: sawdust, small wood chips, wood veneer.
    8) Fertilizer: compound fertilizer, organic fertilizers, inorganic fertilizers, ammonium sulfate fertilizer
    9) Agriculture: straw, grass, turf.
    10) Animal manure: chicken manure, duck manure, cow dung, etc.



    2.Small wood chips rotary drum dryer structure:

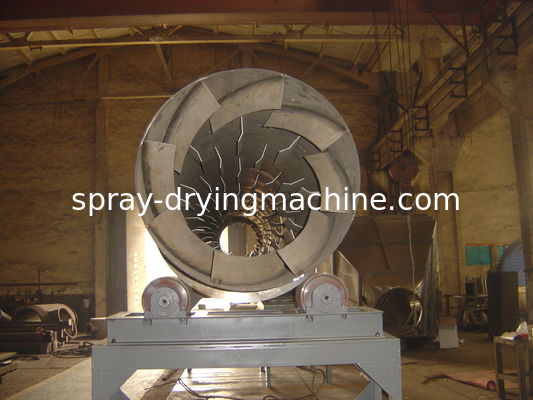

    1 Small wood chips rotary drum dryer is mainly composed of rotary part, lifting board, transmission part, supporting part and seal ring.

    2 The drum dryer produced by our company uses reasonable running parameters, and the coal and electricity consumption is reduced by over 10-15% and the output per machine is improved by over 10-15%, so that it has been widely used in the cement plants and ore beneficiation plants.

    ♦ Gear Material: Cast steel
    ♦ Discharging way: Downstream
    ♦ Drum Material: Heat-resisting steel sheet



    Preface

    Wet material is loaded from one head of the dryer, and then it is stirred by the bafflers that is uniformly distributed in the barrel. Material is uniformly distributed and dispersed in the dryer, fully contact the hot air of parallel (or counter) flow, so the drying process is expedited, and the impulsion power of media transfer is enhanced. During the drying process, material is under the effect of angled baffler and hot air, moves to the star shape unloader that is at the other head of the dryer.

    Structures

    The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
    Features

    Model Direct heating clockwise flow spec Direct heating clockwise flow spec Heat directly countercurrent spec

    Heat directly

    countercurrent spec

    Complex heat Complex heat
    Kinds of raw material ore vesiccant blast fumace ammonium sulfate phosphorus fertilizer coal
    Amount to be treated kg/h 1000 466 15000 20000 12000 5000
    Primary moisture % 30 13 6 1.5 5 6.5
    Final moisture % 15 0.3 1 0.1 0.1 0.1
    Average diameter mm 6.5 0.05 4.7 0.5-1.7 0.5 5
    Bulk density of raw material kg/m2 770 800 1890 1100 1500 750
    Amount of hot air kg/h 39000 5400 10750 9800 6500 16000
    Temperature of air at inlet ℃ 600 165 500 180 650 570
    Temperature of raw material at outlet ℃   42 100 70 80 75
    Way of heating gas electric heating heavy oil fuel hot furnace heavy oil heavy oil
    Loading efficiency %   6.3 7 7.5 7.8 18
    Revolution r.p.m 4 4 3.5 3 4 2
    gradient m/m 0.04 0.005 0.03 0.05 0.05 0.043
    Quantity of stirring-up rake 12 24 12 22 outer of inner cylinder 8
    inner of out cylinder 16
    6

    12
    Diameter of dryer m 2.0 1.5 2 2.3 out cylinder 2 inner cylinder 0.84 out cylinder 2.4 inner cylinder 0.95
    Length of dryer m 20 12 17 15 10 16
    Driving power Kw 22 7.5 15 11 11 15

    1. The motorization level of the barrel is high, and the production capacity is high;
    2. The resistance that the material passes through the barrel is less, and the power consumption is low.
    3. Application capability to different characters of materials is high.
    4. The operation is stable, the operation fee is low, and the uniformity of product drying is good.
    5.The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
