Abb / Siemens Motor Hot Air Industrial Dryer Machine , Rotary Barrel Drying Line

Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number HYG
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Woodencase
Delivery Time 10 WEEKS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Matal Material SUS316/SUS304/ CARBON STEEL ,ETC Heat Source Steam / Electrical / Natural Gas / Diesel / Etc;
Temp 100-500℃ Power Customized
Weight 3000-20000kg Motor ABB / SIEMENS/
High Light

rotary drying machine

,

rotary vacuum dryer

Leave a Message
Product Description

HYG Series Rotary barrel hot air dryer machine (Rotary barrel dryer)

Detailed Product Description
1. Continuous operating
2. Lower manual cost
3. Nonstandard, different capacity
4. Installing and commissioning on site

Usually the biggest feature of wood,wood chips ,sawdust drying is big capacity. So rotary drum dryer can meet it.The operatng and manufacturing cost of rotary drum dryer is much lower than normal drying equipmets if your capacity is very big.


Working Principle of Rotary drum dryer
Wet material is loaded from one head of the dryer, and then it is stirred by the bafflers that is uniformly distributed in the barrel. Material is uniformly distributed and dispersed in the dryer, fully contact the hot air of parallel (or counter) flow, so the drying process is expedited, and the impulsion power of media transfer is enhanced. During the drying process, material is under the effect of angled baffler and hot air, moves to the star shape unloader that is at the other head of the drver.

Features Rotary Drum Dryer
1, The motorization level of the barrel is high, and the production capacity is high.
2, The resistance that the material passes through the barrel is less, and the power consumption is low.
3, Application capability to different characters of materials is high.
4, The operation is stable, the operation fee is low, and the uniformity of product drying is good.
Preface
Wet material is loaded from one head of the dryer, and then it is stirred by the bafflers that is uniformly distributed in the barrel. Material is uniformly distributed and dispersed in the dryer, fully contact the hot air of parallel (or counter) flow, so the drying process is expedited, and the impulsion power of media transfer is enhanced. During the drying process, material is under the effect of angled baffler and hot air, moves to the star shape unloader that is at the other head of the dryer.
Structures

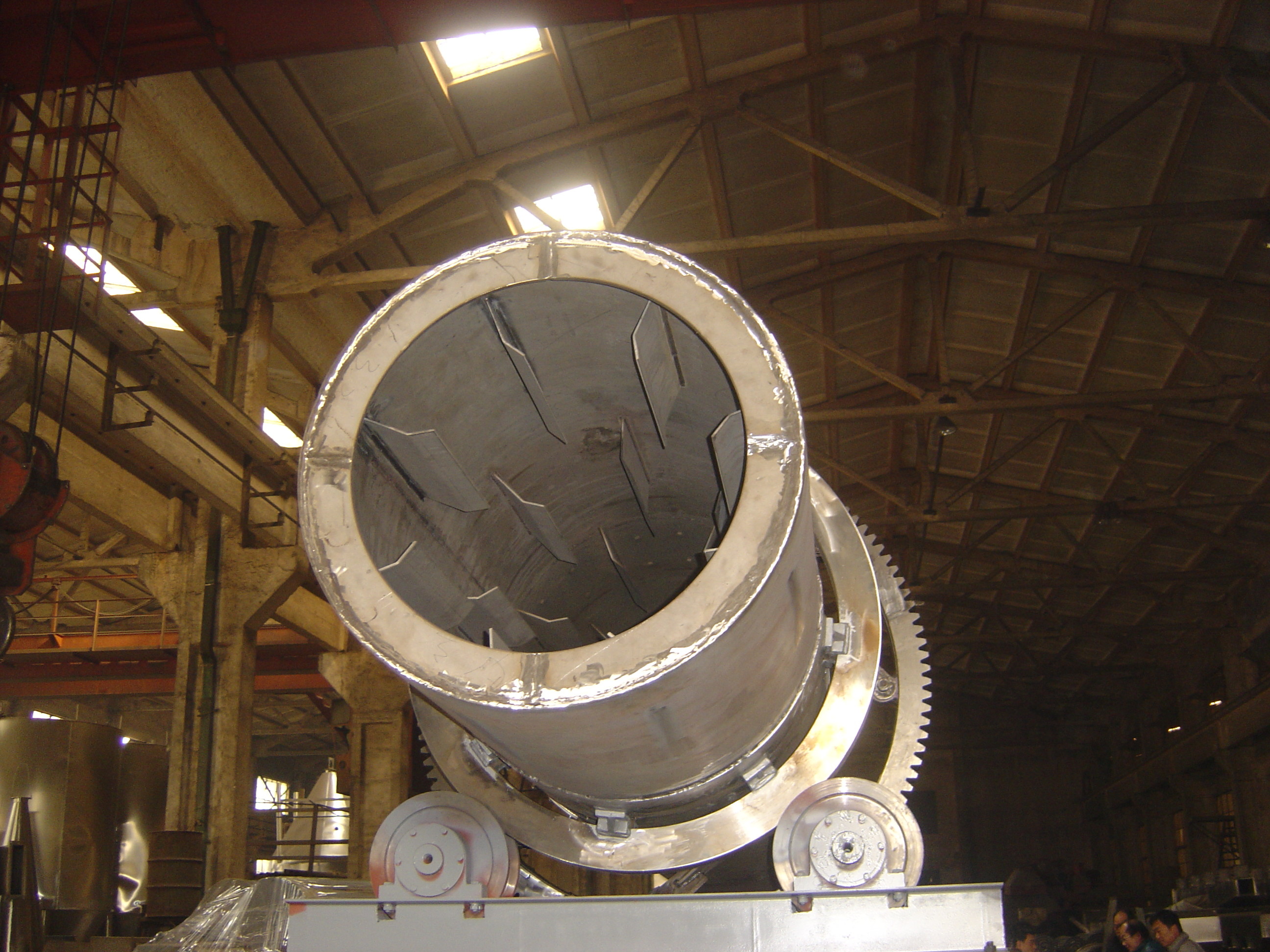

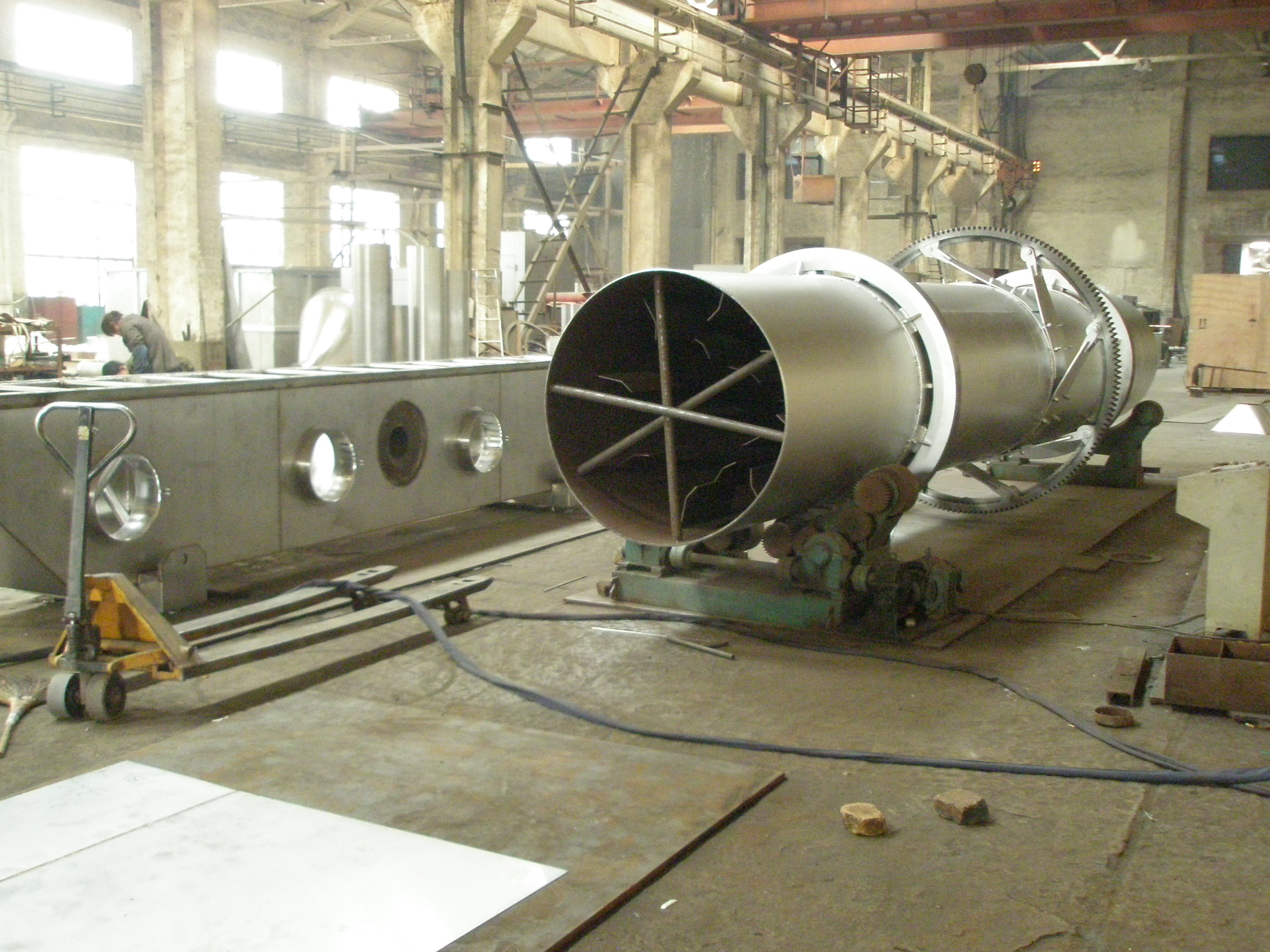

The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
Features

Model Direct heating clockwise flow spec Direct heating clockwise flow spec Heat directly countercurrent spec

Heat directly
countercurrent spec

Complex heat Complex heat
Kinds of raw material ore vesiccant blast fumace ammonium sulfate phosphorus fertilizer coal
Amount to be treated kg/h 1000 466 15000 20000 12000 5000
Primary moisture % 30 13 6 1.5 5 6.5
Final moisture % 15 0.3 1 0.1 0.1 0.1
Average diameter mm 6.5 0.05 4.7 0.5-1.7 0.5 5
Bulk density of raw material kg/m2 770 800 1890 1100 1500 750
Amount of hot air kg/h 39000 5400 10750 9800 6500 16000
Temperature of air at inlet ℃ 600 165 500 180 650 570
Temperature of raw material at outlet ℃   42 100 70 80 75
Way of heating gas electric heating heavy oil fuel hot furnace heavy oil heavy oil
Loading efficiency %   6.3 7 7.5 7.8 18
Revolution r.p.m 4 4 3.5 3 4 2
gradient m/m 0.04 0.005 0.03 0.05 0.05 0.043
Quantity of stirring-up rake 12 24 12 22 outer of inner cylinder 8
inner of out cylinder 16
6
12
Diameter of dryer m 2.0 1.5 2 2.3 out cylinder 2 inner cylinder 0.84 out cylinder 2.4 inner cylinder 0.95
Length of dryer m 20 12 17 15 10 16
Driving power Kw 22 7.5 15 11 11 15

1. The motorization level of the barrel is high, and the production capacity is high;
2. The resistance that the material passes through the barrel is less, and the power consumption is low.
3. Application capability to different characters of materials is high.
4. The operation is stable, the operation fee is low, and the uniformity of product drying is good.
5.The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
