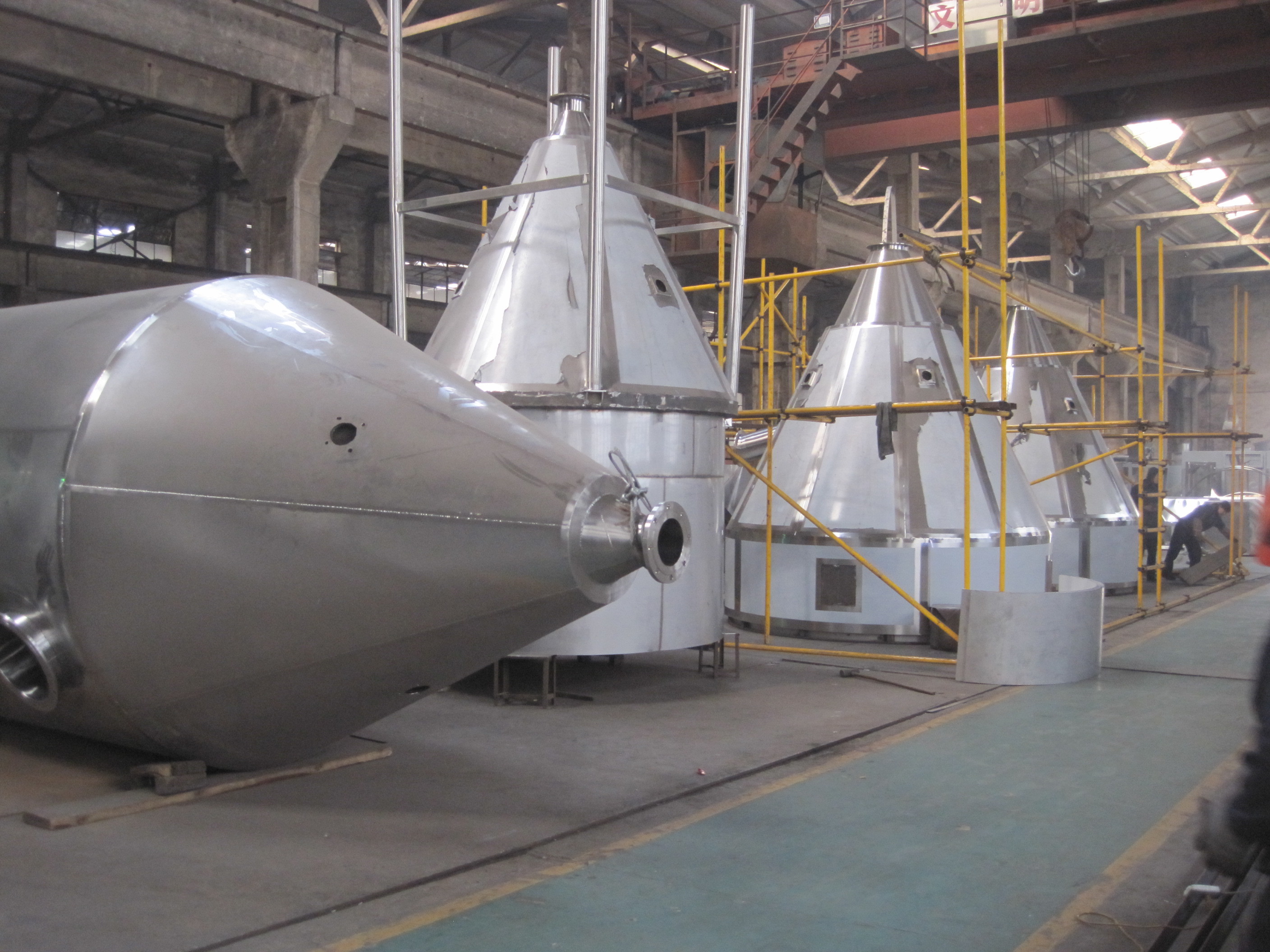

Lithium Iron Phosphate Spray Drying Machine , Chemical Industrial Spray Dryer Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMetal Material | SUS316/SUS304/ CARBON STEEL ,ETC | Heating Source | Steam / Electrical / Natural Gas / Diesel / Etc |
---|---|---|---|
Capacity | 10-10000kg Per Hour | Water Evaporation | 5-5000kg Per Hour |
Temp | 120-600'C | Particle | Per Hour |
High Light | food dryer machine,spray drying equipment |
SUS304 SU316 LPG Series High speed Centrifugal lithium iron phosphate Spray Drying Equipment for Chemical
Preface
Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as: solution, emulsion, suspension and pump- able paste states. For this reason, when the particle size and distribution of the final products, residual water contents, volume density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
After been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the spiral form uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.
Feature :
The drying speed is high when the material liquid is atomized, the surface area of the material will increase greatly. In the hot-air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials. Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality. The production procedures are simple and the operation and control are easy. The liquid with moisture contents of 40-60% (for special materials, the contents might be up to 90%.)can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition within a certain range.
ed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.
- YIBU conventional Spray Dryer turns liquid into powder in a highly efficient manner. It is used within fields as diverse as the dairy, food and chemicals industries where it has won renown for its performance. With more than 2,500 spray dryers installed worldwide, YIBU Dryer combines experience and cutting-edge technology into added-value solutions for its customers.
- Designed for the specific product to be dried in compliance with a given industry’s standards and requirements, the conventional Spray Dryer produces a fine powder with particle sizes between 20-300 my. It is primarily applied in the chemical industry, but it has also proved valuable in the production of food and dairy products.
- Atomization of the concentrate takes place via either a Rotary Atomizer or high-pressure nozzles. The drying air enters through the air disperser at a high velocity, ensuring optimal mixing with the atomized concentrate. Evaporation is instantaneous, taking place as the droplets pass through the drying chamber.
- Complete control of moisture content, particle structure, particle size distribution, solubility, and wettability, and retention of natural aromas and flavours.
- Unbeatable performance/cost ratio Energy efficient components, continuous and rapid drying, ease of operation and process automation provide complete control over yield and costs.
Technical Data:
specification | LPG | ||||||
5 | 25 | 50 | 100 | 150 | 200-3000 | ||
Tep of inlet air | less than 350°C | ||||||
Tep of outlet air | 80-90 | ||||||
(kg/h) Evaporated capacity |
5 | 25 | 50 | 100 | 150 | 200-3000 | |
Transmitted | Compressed air | By machine | |||||
(rpm)Rotating speed | 25000 | 22000 | 21500 | 18000 | 18000 | 15000 | |
(mm) ia. of atomizing disk |
50 | 120 | 120 | 120 | 150 | 180-340 | |
Heat source | Electricity | Electricity |
+ Electricity+ steam, oil fuel, gas |
+ Electricity+ steam | + Electricity+ steam, oil fuel, gas | Solved by customer | |
(kw) Powder of electric heater |
9 | 45 | 60 | 81 | 99 | ||
(%) Yield of dry powder (%) |
≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | |
Installation Size for reference | A(mm) | 1000 | 1290 | 1730 | 2500 | 2800 | Decided in accordance with actual condition |
B(mm) | 2100 | 3410 | 4245 | 5300 | 6000 | ||
C(mm) | 2300 | 4260 | 4645 | 6000 | 6700 | ||
φ D(mm) | 1060 | 1800 | 2133 | 2560 | 2860 | ||
E1(mm) | 1050 | 1200 | 1640 | 2100 | 2180 | ||
E2(mm) | 1050 | 1200 | 1640 | 2100 | 2180 | ||
F(mm) | 750 | 1000 | 1250 | 1750 | 1970 | ||
G(mm) | 530 | 1700 | 1750 | 1930 | 2080 | ||
H(mm) | 530 | 1300 | 1800 | 2600 | 3050 | ||
I(mm) | 530 | 1550 | 1600 | 1780 | 1960 |
Packaging & Shipping
Packing Size: depending on the machine
Container Load: 20OT ,20GP, 40OT,40GP and 40FR
Outer Packing: plastic film or wooden case
Glance at the equipment at customer site
Annul visit to customer site
As to know whether the machine sold to customer run well or not in customer site , every year we will make a visit to customer site for it .
Our Services
Pre-service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3. Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;5.Take initiative to eliminate the troubles rapidly;
6. Provide technical support;
7. Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3. Send every client a preferential quotation.
FAQ
1. Are you a manufacturer ,trading company or a third party
We are a manufacturer ,and we have started our production on 1970 and have the private company right since 1995.
2. Where is your factory located
Our company is located in Changzhou city ,Jiansu province,China .it is in the middle of Shanghai and nanjing .
3. How can I go to your factory ?
You can fly to shanghai pudong or hong qiao international airport directly ,and then take the high speed train or bus to Changzhou station and then we can pick you up at changzhou station for our company . Our company is around 30~40km away from the changzhou station.
If you are in China now , you can fly to benniu airport ,or take the train or bus to our city directly .
We sincerely welcome to visit our company at any time
4. What’s your mini order ?
Our mini order is one set .
5. Is there any certificate of YIBU ?
Yes, we got ISO9001:2008 Quality Management System Certificate,ISO14001:2004 Environmental Management System Certificate, OHSHS18001:2004 Occupatinal Healthe and Safety Management System Certificate, ISO10012:2003 Certificate for the system of Inspection measurement and Test, CE, CE;SGS;TUV;GOST;UL;GMP also we got 60 item patent, CE;SGS;TUV;GOST;UL;GMP
6. Is there any standard of electronic systems?
YES The electronic systems and their safety should comply with the requirements set forth in 21 CFR Part 11 and GMP Annex 11; The data should be collected at appropriate time intervals and stored in the system in a fixed format that can be printed out/read;
Access to all input and output values should be provided by entering the user personal code and password. The system should ensure three-level access (Administrator-Supervisor-Operator). A detailed description of the access rights for each level should be included to the equipment functional specification (FS);
