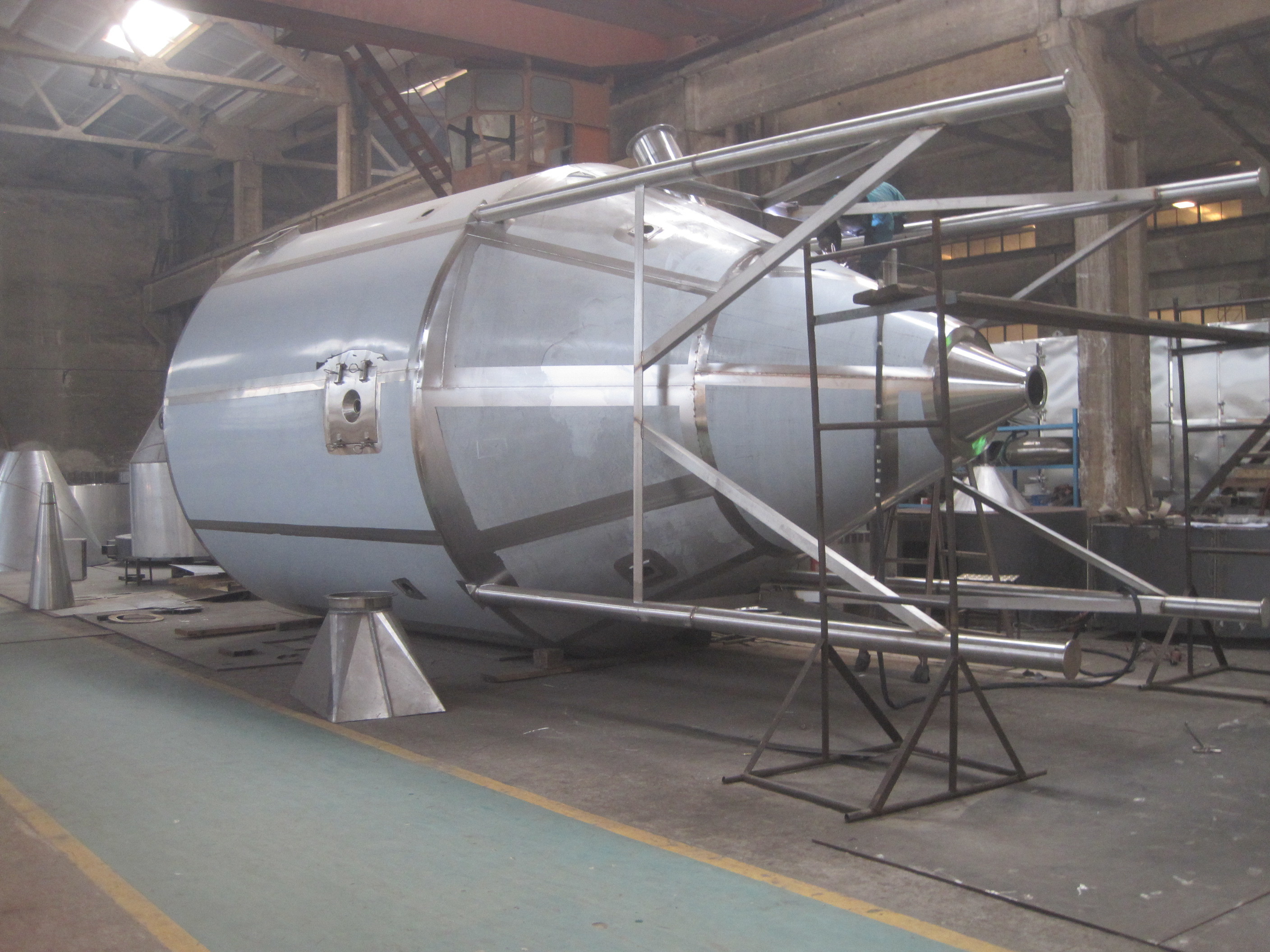

Animal Blood Spray Drying Machine For Foodstuff Industry Rapid Drying Speed

  • Animal Blood Spray Drying Machine For Foodstuff Industry Rapid Drying Speed
  • Animal Blood Spray Drying Machine For Foodstuff Industry Rapid Drying Speed
  • Animal Blood Spray Drying Machine For Foodstuff Industry Rapid Drying Speed
  • Animal Blood Spray Drying Machine For Foodstuff Industry Rapid Drying Speed
Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number LPG
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Woodencase
Delivery Time 10 WEEKS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Metal Material SUS316/SUS304/ CARBON STEEL ,ETC Heating Source Steam / Electrical / Natural Gas / Diesel / Etc
Capacity 10-10000kg Per Hour Water Evaporation 5-5000kg Per Hour
Temp 120-600'C Particle Per Hour
Highlight

food dryer machine

,

spray drying equipment
Leave a Message
Product Description

SUS304 SU316 LPG Series High speed Centrifugal Pork blood  Spray Drying Equipment for foodstuff

Product Description

Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as:solution, emulsion, suspension and pumpable paste states,For this reason,when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.





Material to be dried

1,Chemical Industry:Sodium fluoride(potassium),alkaline dyestuff and pigment,dyestuff intermediate,compound fertilizer, formic silicic acid,catalyst, sulphuric acid agent, amino acid, whitecarbon and so on.

2,Plastics and resin:AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.

3,Food Industry:Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk), Food and plant,oats,chicken juice,coffee,instant dissoluble tea,Sugar, corn syrup, corn starch, glucose,pectin, malt sugar, sorbic acid potassium and etc.

4,Ceramic:aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.





The drying speed is high

when the material liquid is atomized,the surface area of the material will increase greatly

In the hot-air flow,95%-98% of water can be evaporated at a moment

The time of completing the drying is only several seconds

Final products

Own the good uniformity, flow ability & solubility

High in purity and good in quality

The producition procedures are simple,The operation and control are easy

After the drying process, there is no need for smashing and sorting

The product can be adjusted through changing the operation condition within a certain range

Technical Data:

specification LPG
5 25 50 100 150 200-3000
Tep of inlet air less than 350°C
Tep of outlet air 80-90

(kg/h)

Evaporated capacity

 5 25 50 100 150 200-3000
Transmitted Compressed air By machine
(rpm)Rotating speed 25000 22000 21500 18000 18000 15000

(mm)

ia. of atomizing disk

 50 120 120 120 150 180-340
Heat source Electricity Electricity

+

Electricity+ steam, oil fuel, gas

 + Electricity+ steam + Electricity+ steam, oil fuel, gas Solved by customer

(kw)

Powder of electric heater

 9 45 60 81 99

(%)

Yield of dry powder (%)

 ≥95 ≥95 ≥95 ≥95 ≥95 ≥95
Installation Size for reference A(mm) 1000 1290 1730 2500 2800 Decided in accordance with actual condition
B(mm) 2100 3410 4245 5300 6000
C(mm) 2300 4260 4645 6000 6700
φ D(mm) 1060 1800 2133 2560 2860
E1(mm) 1050 1200 1640 2100 2180
E2(mm) 1050 1200 1640 2100 2180
F(mm) 750 1000 1250 1750 1970
G(mm) 530 1700 1750 1930 2080
H(mm) 530 1300 1800 2600 3050
I(mm) 530 1550 1600 1780 1960

Animal Blood Spray Drying Machine For Foodstuff Industry Rapid Drying Speed 0
