Alfakher Tobacco Flavor Spray Dryer Machine High Speed Centrifugal

  • Alfakher Tobacco Flavor Spray Dryer Machine High Speed Centrifugal
  • Alfakher Tobacco Flavor Spray Dryer Machine High Speed Centrifugal
  • Alfakher Tobacco Flavor Spray Dryer Machine High Speed Centrifugal
  • Alfakher Tobacco Flavor Spray Dryer Machine High Speed Centrifugal
  • Alfakher Tobacco Flavor Spray Dryer Machine High Speed Centrifugal
Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number LPG
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Woodencase
Delivery Time 10 WEEKS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Metal Material SUS316/SUS304/ CARBON STEEL ,ETC Heating Source Steam / Electrical / Natural Gas / Diesel / Etc
Capacity 10-10000kg Per Hour Water Evaporation 5-5000kg Per Hour
Temp 120-600'C Particle Per Hour
High Light

spray drying plant

,

spray drying equipment
Leave a Message
Product Description

LPG Series High speed Centrifugal Alfakher tobacco flavor Spray Drying Equipment ( high speed centrifugal spray dryer )



Specifications

Spray drying is a wide applied process in liquid process shaping and drying industry.

Description:

The spray drier is widely used in the liquid shaping technology and in the drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid.

Features:

1. Quick drying speed. In the hot air stream, 95% to 98% of moisture can be evaporated immediately.



2. It is especially suitable for drying thermal sensitive material.



3. The product made by the machine has good uniformity, fluidity and high quality.

3. The productive process is simple and the operation control is very convenient.



4. For liquid containing 40-60% of damp (for special material, may be 90%), it can be dried to powder product through drying one time. After dried, it is not necessary to crush and sieve. So it reduces productive procedure and raises the purity of product.



Application:



1. Chemical Industry:

white carbon,amino acid,catalyst,dyestuff intermediate,sodium fluoride,compund fertilizer,etc.



2. Plastics and resin:

AB,ABS emulsion, uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,polythene,etc.



3. Food Industry:

oats,chicken juice,coffee,instant dissoluble tea,protein,soybean,peanut protein,hydrolysate,etc.



4. Sugar:

corn syrup,corn starch,glucose,pectin,malt sugar,sorbic acid potassium,etc.



5. Ceramic:

aluminium oxide,ceramic tile material,magnesium oxide,talcum,etc.



Techincal Parameter:



model
item parameter		 5 25 50 150 200-2000
inlet temperature 140-350 automatic control
outlet temperature 80-90
Max.evaporated
amount of moisture
(kg/h)		 5 25 50 150 200-2000
drving form of
cuntrifugal nozzle		 compressed air drive mechanical drive
revolution
(r.p.m)		 25000 18000 18000 15000 8000-15000
diameter of ato-
mizing disk
(mm)		 50 120 120 150 180-240
heat source electricity steam+electricity steam+electricity,oil,oil fuel,hot air furnace
Max.power of
electric heater(kw)		 9 36 72 99
overall eimensions
(L W H)(m)		 1.8×0.93×2.2 3×2.7×4.26 3.5×3.5×4.8 5.5×4×7 affirm it in accordance with practical condition
recovery rate of
dry powder(%)		 ≥95

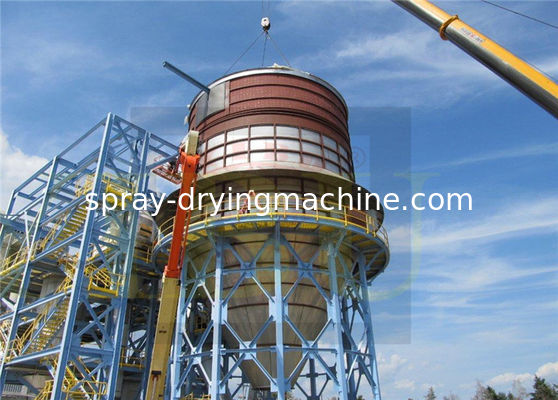

Alfakher Tobacco Flavor Spray Dryer Machine High Speed Centrifugal 0
