Natural gas Air Stream Drying Machine , Ring Dryer Machine

Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number DG
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Woodencase
Delivery Time 10weeks
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH
Product Details
Metal Material SUS316/SUS304/ CARBON STEEL ,ETC Heating Source Steam / Electrical / Natural Gas / Diesel / Etc
Temp 100-500℃ Capacity Customized
Motor ABB / SIEMENS/ Control PLC+HMI / Button Control
High Light

hot air dryer

,

spin flash dryer

,

natural gas air stream drying machine

Leave a Message
Product Description

DG  Air Stream Drying Machine (Air stream dryers ) (Ring Dryer)( Air cooler)





Preface

DG Series Air Stream Dryer is drying plant for to dry maize, potato alike and other starch material processed by wet method after dewatering process. It's also for to dry heat sensitive powder or slice state material with fast speed.

Wet material is dispersed into a stream of heated air (or gas) which conveys it through a drying duct. Using the heat from the airstream, the material dries as it is conveyed. Product is separated using cyclones, and/or bag filters. Typically, cyclones are followed by scrubbers or bag filters for final cleaning of the exhaust gases to meet current emission requirements.



In the dryer, high-speed hot air stream sustain raw material in the suspending state, then the material is dried. Since air stream speed is very high, and material is suspending in air stream, the heat transfer surface between air and solid is large, heat transfer rate is high, and drying time is short(usually within several seconds). It’s specially suitable for drying heat sensitive materials.

In drying process, clean cool air is heated by air heater, and mixed with wet starch sent by spiral feeder and material raiser. Wet starch is dried momentarily. Dry starch is discharged though centrifuge separator and star shape unloader . Exhaust air is let out into atmosphere.

Pneumatic coolers are a simple and reliable method of cooling and conveying dried product. In many instances ambient air will achieve the desired cooling duty. Where required, greater cooling capacity and a finer degree of control can be achieved with conditioned air at a controlled humidity and temperature.



Application :

Agrochemicals

Ceramics

Food and feed products

Inorganic chemicals

Organic chemicals

Pharmaceuticals

Pigments and dyestuffs

Waste products

specification

Evaporated capacity

(kg/m)

Total power

(kw)

Occupied area

(sqm)

Height

(m)

QG50 50 7 20 9
QG100 100 13 32 11
QG200 200 21 40 11
QG250 250 24 64 13
QG500 500 43 96 13
QG1000 1000 100 120 15
QG1500 1500 150 200 16

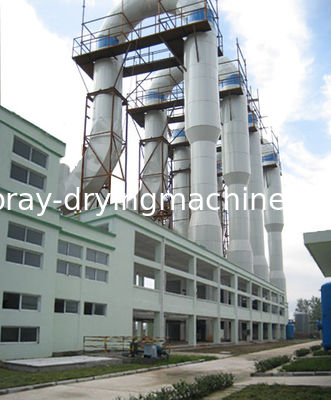

Natural gas  Air Stream  Drying Machine , Ring  Dryer Machine 0

Natural gas  Air Stream  Drying Machine , Ring  Dryer Machine 1
