Ss304 Corn Starch Centrifugal Atomizer Spray Dryer Industrial

Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number LPG
Minimum Order Quantity 1 set
Price 20000~25000USD /set
Packaging Details fumigation Wooden case
Supply Ability 500set/year
Product Details
Material SUS304 Heating Electricity
Dust Collecting Cyclone Keywords Centrifugal Atomizer Spray Dryer
Application Medicine Processing, Chemicals Processing Heating Source Electricity Steam Oil Gas
High Light

atomizer spray dryer industrial

,

centrifugal spray dryer industrial

,

Ss304 Spray Dryer Industrial

Leave a Message
Product Description

LPG100 series stainless steel SUS304/SUS316L gelatin high speed spray dryer with heating steam,gas furnace, electricity



Introduction



The spray dryer is one of the continuous atmospheric dryers. The liquid material is sprayed with a special device to form a mist, and is dried in contact with hot air. For the drying of some heat-sensitive liquids, suspensions and viscous liquids, such as milk, eggs, tannins and drugs. Also used for drying fuels, intermediates, soap powder and inorganic salts.



Working Principle



The air is filtered and heated into the top of the dryer air distributor, hot air into the spiral evenly into the drying chamber. The material liquid is sprayed into a fine atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.



Product Features

High speed drying:the surface area of liquid material is greatly increased after atomization, achieving instantaneous evaporation of 95% -98% water in the hot air flow, drying time only takes a few seconds, especially for heat-sensitive materials

Products achieve good uniformity, mobility and solubility, and also achieve purity, good quality. The production process is simplified and the operation control is convenient. For liquid materials with the moisture content of 40-60% (special materials up to 90%) can be dried into powder products just with one time, do not need grinding and screening after drying, reduce production processes and improve product purity. The product size, bulk density, moisture, in a certain range can be adjusted by changing operating conditions, control and management are very convenient.

The air is filtered and heated into the top air distributor of the dryer, and the hot air enters the drying chamber evenly in a spiral fashion. The material liquid is sprayed into a fine atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.



Application


Food and plants: oats, chicken juice, coffee, instant tea, seasoning spices meat, protein, soybeans, peanut protein, hydrolysates and so on.

Carbohydrates: corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate and the like. Chemical industry: battery raw materials, basic dye pigments, dye intermediates, fertilizer, formaldehyde silicic acid, catalysts, agents, amino acids, silica and so on.

Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum powder and so on

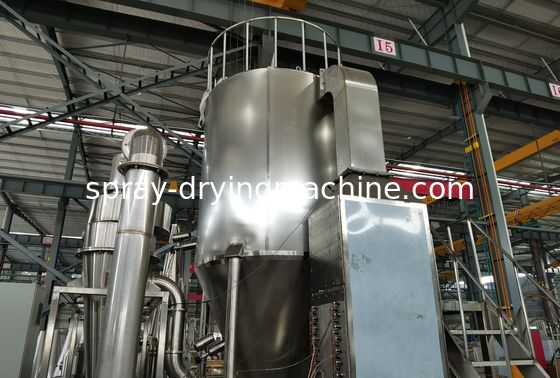

Ss304 Corn Starch Centrifugal Atomizer Spray Dryer Industrial 0




















Product parameters
type LPG
5 25 50 100 150 200-3000
Inlet temperature ≤ 350°C
Outlet temperature 80-90°C
evaporate capacity (kg/h) 5 25 50 100 150 200-3000
driving type compressed air drive mechanical drive
Rotate speed 25000 22000 21500 18000 18000 15000
diameter of atomizer tray (mm) 50 120 120 120 150 180-340
heating source electricity electricity electricity +steam+fuel oil+coal gas electricity +steam electricity +steam+fuel oil+coal gas To be solved by users
Electric-heating power (kw) 9 45 60 81 99
Dried powder recovery rate (%) ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95
Installation size A(mm) 1000 1290 1730 2500 2800 according to practical needs
B(mm) 2100 3410 4245 5300 6000
C(mm) 2300 4260 4645 6000 6700
φ D(mm) 1060 1800 2133 2560 2860
E1(mm) 1050 1200 1640 2100 2180
E2(mm) 1050 1200 1640 2100 2180
F(mm) 750 1000 1250 1750 1970
G(mm) 530 1700 1750 1930 2080
H(mm) 530 1300 1800 2600 3050
I(mm) 530 1550 1600 1780 1960
