Liquid And Egg Powder Making Ss316 Spray Drying Equipment

Liquid And Egg Powder Making Ss316 Spray Drying Equipment

  • High Light

    ss316 spray drying equipment


    10kg/h spray drying equipment

  • Metal Material
  • Heating Source
    Steam, Electricity, Gas, Oil
  • Capacity
    10-10000kg Per Hour
  • Water Evaporation
    5-5000kg Per Hour
  • Temp
  • Particle Size
  • Name
    Spray Dryer
  • Place of Origin
  • Brand Name
  • Certification
    CE / UL / SGS / EAC / CR – TU
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
  • Delivery Time
    10 WEEKS
  • Payment Terms
    L/C, T/T
  • Supply Ability

Liquid And Egg Powder Making Ss316 Spray Drying Equipment

LPG Series milk powder  Centrifugal Atomizer Spray Dryer/Egg Powder Extracting Spray Drying Machine /Egg Powder Water Evaporating Dehydrator



Spray drying process is the widest used in the liquid forming process and in drying industry. The drying technology is most suitable for powder, particle products from materials, such as,solution, emulsion, SC and pumpable paste states material. For this reason, when the particle size and distribution of the final product, their residual water contents, the stacking density and particle shape must meet the precision standard, spray drying process is one of the most desired processes.



High drying speed atomizes material into liquid, the surface of the material increase greatly. It only takes few seconds to evaporate 95-98% water in a hot air flow. This is especially suitable for drying the heat sensitive materials. The final product has features of good uniformity, flow ability, and solubility. It is in a high purity and quality as well. The production procedure is simple,operation and control are easy. For material contains 40-60% water(special material can contain more than 90%), it can be dried into powder or particles once a time. After the drying process, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters,losseness and water contents can be adjusted through changing the operation condition whining a certain range. It is very convenient to carry out control and management.



Food and plants: Oats, chicken juice, coffee, instant tea, seasoning spices meat, protein, soybeans, peanut protein, hydrolysates and so on.

Carbohydrates: Corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate and the like.

Chemical industry: Battery raw materials, basic dye pigments, dye intermediates, fertilizer, formaldehyde silicic acid, catalysts, agents, amino acids, silica and so on.

Ceramics: Alumina, ceramic tile materials, magnesium oxide, talcum powder and so on.

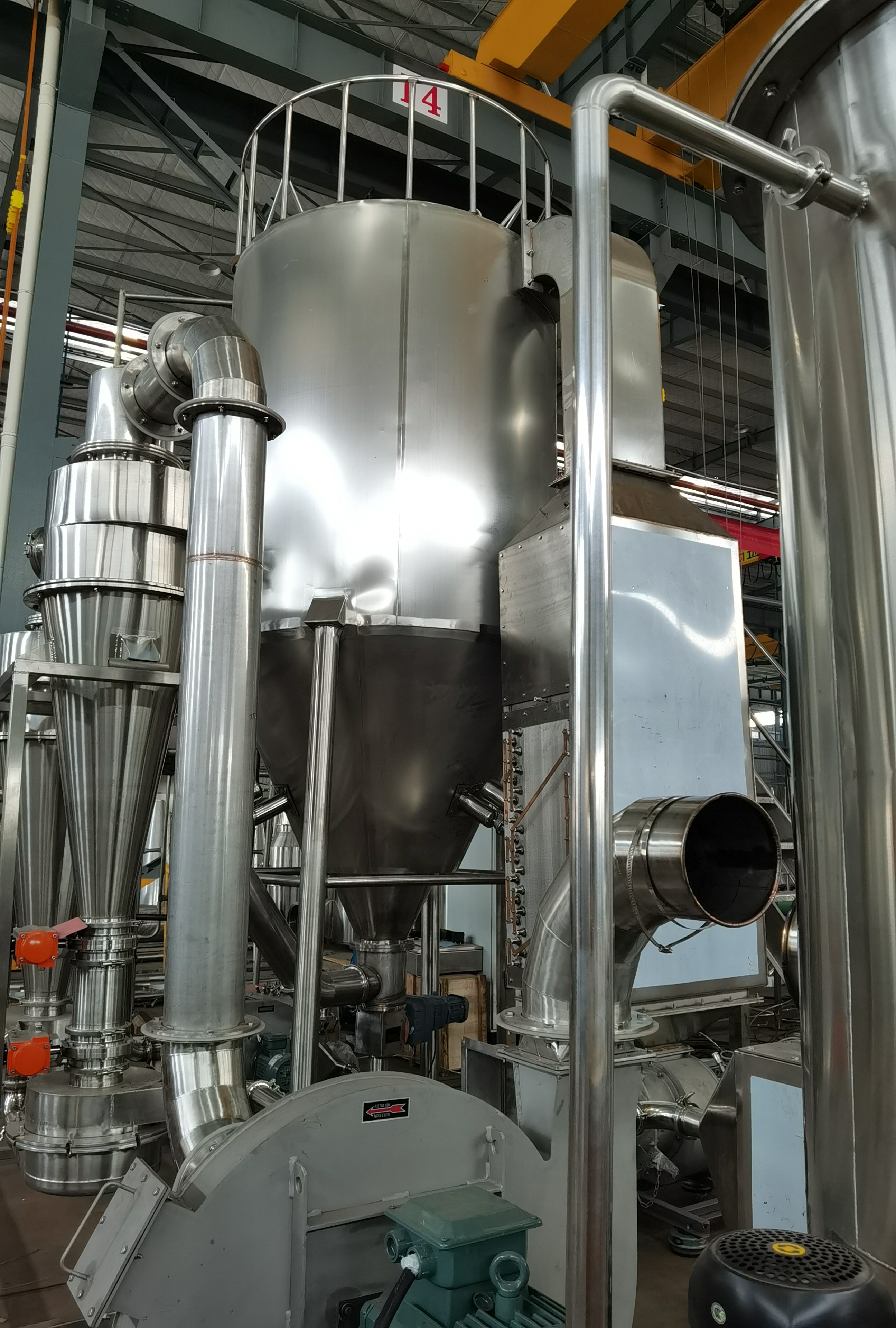

Liquid And Egg Powder Making Ss316 Spray Drying Equipment 0


Technical Data

specification LPG
5 25 50 100 150 200-3000
Tep of inlet air less than 350°C
Tep of outlet air 80-90

Evaporated capacity

5 25 50 100 150 200-3000
Transmitted Compressed air By machine
(rpm)Rotating speed 25000 22000 21500 18000 18000 15000

ia. of atomizing disk

50 120 120 120 150 180-340
Heat source Electricity Electricity

Electricity+ steam, oil fuel, gas

+ Electricity+ steam + Electricity+ steam, oil fuel, gas Solved by customer

Powder of electric heater

9 45 60 81 99

Yield of dry powder (%)

≥95 ≥95 ≥95 ≥95 ≥95 ≥95
Installation Size for reference A(mm) 1000 1290 1730 2500 2800 Decided in accordance with actual condition
B(mm) 2100 3410 4245 5300 6000
C(mm) 2300 4260 4645 6000 6700
φ D(mm) 1060 1800 2133 2560 2860
E1(mm) 1050 1200 1640 2100 2180
E2(mm) 1050 1200 1640 2100 2180
F(mm) 750 1000 1250 1750 1970
G(mm) 530 1700 1750 1930 2080
H(mm) 530 1300 1800 2600 3050
I(mm) 530 1550 1600 1780 1960
