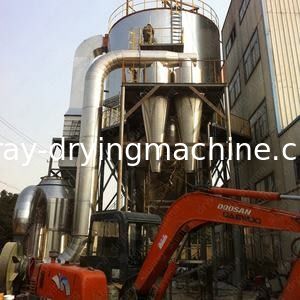

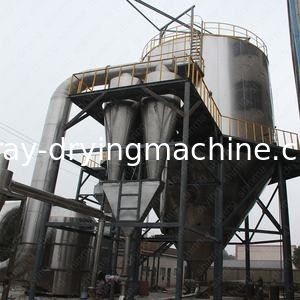

304 Stainless Steel 25kg/H Gelatin Spray Drying Machine

Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number LPG
Minimum Order Quantity 1 set
Price 20000~25000USD /set
Packaging Details fumigation Wooden case
Supply Ability 500set/year
Product Details
Material SUS304 Heating Electricity
Dust Collecting Cyclone Name Gelatin Spray Drying Machine
High Light

25kg/h spray drying machine

,

gelatin spray drying machine

,

ss304 spray drying machine

Leave a Message
Product Description





LPG100 series stainless steel SUS304/SUS316L gelatin high speed spray dryer with heating steam,gas furnace, electricity

Characteristic:
1. Fast drying speed
2. The product dried in short time has high purity and good quality
3. The production process is simple, the control is convenient and the process is reduced
4. The dispersibility, fluidity and solubility of the product are good. The particle size, bulk density and water content of the product can be adjusted within a certain range

Performance description and characteristics:

1,Feed system

It is composed of screw pump and feed pipe and valve.

The screw pump adopts frequency conversion speed regulation to effectively control the feed quantity. The main part of the pipeline valve is SUS304 stainless steel, and it is clean and sanitary

2,Medium circulation system

It is composed of blower, draft fan, muffler, air regulating butterfly valve and wind pipe

Draft fan and blower are high quality manufacturers supply, cooperation for many years, quality is stable; the blower for SUS304 stainless steel, to ensure clean air; fan with a silencer, effectively reduce the noise. The system volume, wind pressure, wind speed, is the key, based on years of experience, is now mature.

3,Air heating and cleaning system

It consists of early, medium and high temperature HEPA filters, fans, steam radiators, electric heaters, etc.

The heat source is a steam radiator and an electric heater. The material is made of stainless steel pipes and stainless steel fins. The utility model not only ensures the cleanness of the air inlet system, but also has high thermal efficiency and can guarantee the output heat

4,Drying tower system

It is composed of a dry main tower, a hot air distributor, an atomizer, an observation manhole, a tower lighting device, a pneumatic hammer, a lower bin, a cylinder body and a cone jacket, and a cooling system

This system is the core system

1, combined with the test experience, we in the design process of the main tower of the main tower: adjust the straight cylinder height to diameter ratio, adjusted by 0.9:1 routine to about 1.1:1; prolong the retention time of the material, the drying effect is ensured. The adjustment of the taper cone tower, consists of a conventional 60 degree angle adjustment to 54 degrees, fully considering the smooth material in the cone when feeding.

2, the atomizer atomizer using frequency converter to adjust the speed to achieve the best effect. The base will reduce the atomizing atomizer, the atomizing disk atomizer and increase the distance, the droplets in the air can not be returned under the spinning top, in order to ensure the normal operation of the system.

3, design a set of Taneiduo lighting devices and 1 doors, manholes.

4, hot air vortex shell tower by accelerating structure, the hot air in the tower when pressed material effectively, orderly and swirl decreased. Hot air distributor with the characteristics and requirements of the technology, do both sides distributor the wind guiding mechanism, and can adjust the angle, in order to control the hot air into the tower when the tangential angle.

5, the main tower design of jacket cooling cooling system: to avoid the main tower body wall temperature is too high and the receiving effect of the adsorption tower in the cone wall material by high temperature and coking softening phenomenon, ensure the quality of the materials.

5,Product collection system

The utility model is composed of a cyclone separator and a water film dust collector

6,Cold desiccant charging system

It is composed of air filter, freezing dehumidifier, cleaning pipe and so on. The system sends the fresh air to the clean area and collects the cooling air after the filtered fresh air passes through the refrigeration dehumidifier.

7,Other auxiliary system

Are well-known manufacturers of supply, reliable performance; some pipes take into account a certain angle design, the use of suppression stainless steel pipe, to avoid the end material, blocking material, and local resistance is too large, affecting the phenomenon of material delivery.











Production application
Suitable for liquids, emulsions, suspensions, pastes, solutions, dyes, pigments, ceramics, glass, rust removers, insecticides,carbohydrates, detergents, surface active carbon, soaps, organic compounds and inorganic compounds, etc304 Stainless Steel 25kg/H Gelatin Spray Drying Machine 0





















Product parameters
type LPG
5 25 50 100 150 200-3000
Inlet temperature ≤ 350°C
Outlet temperature 80-90°C
evaporate capacity (kg/h) 5 25 50 100 150 200-3000
driving type compressed air drive mechanical drive
Rotate speed 25000 22000 21500 18000 18000 15000
diameter of atomizer tray (mm) 50 120 120 120 150 180-340
heating source electricity electricity electricity +steam+fuel oil+coal gas electricity +steam electricity +steam+fuel oil+coal gas To be solved by users
Electric-heating power (kw) 9 45 60 81 99
Dried powder recovery rate (%) ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95
Installation size A(mm) 1000 1290 1730 2500 2800 according to practical needs
B(mm) 2100 3410 4245 5300 6000
C(mm) 2300 4260 4645 6000 6700
φ D(mm) 1060 1800 2133 2560 2860
E1(mm) 1050 1200 1640 2100 2180
E2(mm) 1050 1200 1640 2100 2180
F(mm) 750 1000 1250 1750 1970
G(mm) 530 1700 1750 1930 2080
H(mm) 530 1300 1800 2600 3050
I(mm) 530 1550 1600 1780 1960
