    Product Details:

    Place of Origin: China
    Brand Name: YIBU
    Certification: CE / UL / SGS / EAC / CR – TU
    Model Number: HG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Woodencase
    Delivery Time: 10 WEEKS
    Payment Terms: L/C, T/T
    Supply Ability: 10 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Metal Material: SUS316/SUS304/ CARBON STEEL ,ETC Heating Source: Steam / Hot Water / Thermal Oil
    Capacity: Customized Power Supply: Customized
    Motor: ABB / SIEMENS/ Final Mositure: 5-10%
    High Light:

    food manufacturing equipment

    ,

    food production equipment



    Milk Powder Production Line



    DESCRIPTION



    Refer to milk powder , there are two types: one is full-fat milk powder, the other is skimmed milk powder.



    For these two types of milk powder is also very different. Normally, our design is based on request.

    The milk production line can be applied to the production of various kinds of liquid milks, such as fresh milk, flavor milk, yoghourt beverage, yoghurt and lactobacillus beverage.

    This small production line(300L/H-1000L/H) is characterized by reasonable design, compact and handsome layout, effective energy saving and simple operation and maintenance. Especially it can be employed in new product development equipments of small production enterprises and experiment and internship equipments of scientific research institutions and junior colleges.



    Processing description



    The line is mainly composed of water & powder mixer, double segment plate-type heat exchanger, high speed mixing tank, plate sterilizer (95ºC, 300S, 125ºC, 15S), heat preservation tank, homogenizer (25MPa), fermentation tank, high position tank, rotor pump and self-priming pump,spray drying, sifter and so on




    All the equipments and pipelines touching materials are made of stainless steel (SUS304).



    As to let customers control every data easily, normally, our control system is made with PLC +HMI. and main electrical components are from international brands.



    The automatic control system of production line temperature adopts German SPAIRAX SARCO pressure release valve, regulating valve and Danish TEMPRESS temperature transmitter which has the functions of high temperature alarm, low temperature refluence and CIP automatic cleaning. Other components besides the USA LOWARA hot water pump, such as control valve, meter and fittings, all employ the first-rate domestic equipments, ensuring that the productions line control is accurate and stable and the output materials meet the requirements of the technologic parameters.



    Detailed processing introduction.



    1. Water Treatment section:



    Sand filter, Activated carbon filter, Water softener, Precision filter, Reverser osmosis filter, Electrical control system, UV filter, Water storage tank



    2. Milk Receiving Section



    Out door storage tank, Milk weight tank, Milk receiving tank, Temporary storage tank, Duplex filter, Milk Separator, Plate heat exchanger, Milk Storage Tank



    3. Mixing Section



    Hot water tank, Plate heat exchanger, Square high speed emulsification tank, Water-powder mixer, Mixing tank, Oilcan, Pipeline flow meter, Duplex Filer, Homogenizer



    4. Concentration Section



    Three-efficiency concentrating tower, Balance tank, Double sealed circulation pump, The single sealing health pump, Cooling water pump, Self-priming pump, Water ring vacuum pump, Cooling tower



    5. Drying section



    Concentrated milk tank, High-pressure pump, Spray-drying tower, Fluidized bed, Electric sieve, Milk powder groove



    6. Packing Section

    7. CIP Cleaning Section



    Acid tank, Alkali tank, Hot water tank, Pleat heat exchanger, Cleaning pump



    8. Compressor



    Air compressor, Air filter, Air dryer, Air storage tank



    9. Boiler section



    Horizontal boiler, Steam tank



    10. Refrigeration section



    Refrigeration machine, Ice water tank, Cooling tower, Ice water pump, Pipeline centrifugal pump



    Notes:



    1. This kind of plant is made based on customized design. Not all the features are provided with all designs. The real configurations should be made as per the Contracts or Agreements signed.

    2. The material for manufacturing the machine can be AISI304, 316L and so on. It depends on customer request.

    3. For the heating method, it can be steam, electricity, gas-furnace and so on.

    • For the control system, we can design simple push button, and PLC+HMI is also available for customer, we can design the control system on request.

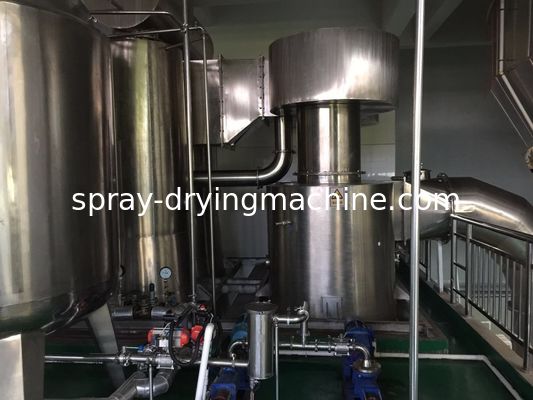

    Milk Powder Industrial Food Manufacturing Machines Simple Push Button Control 0

    Milk Powder Industrial Food Manufacturing Machines Simple Push Button Control 1



    Milk Powder Industrial Food Manufacturing Machines Simple Push Button Control 2
