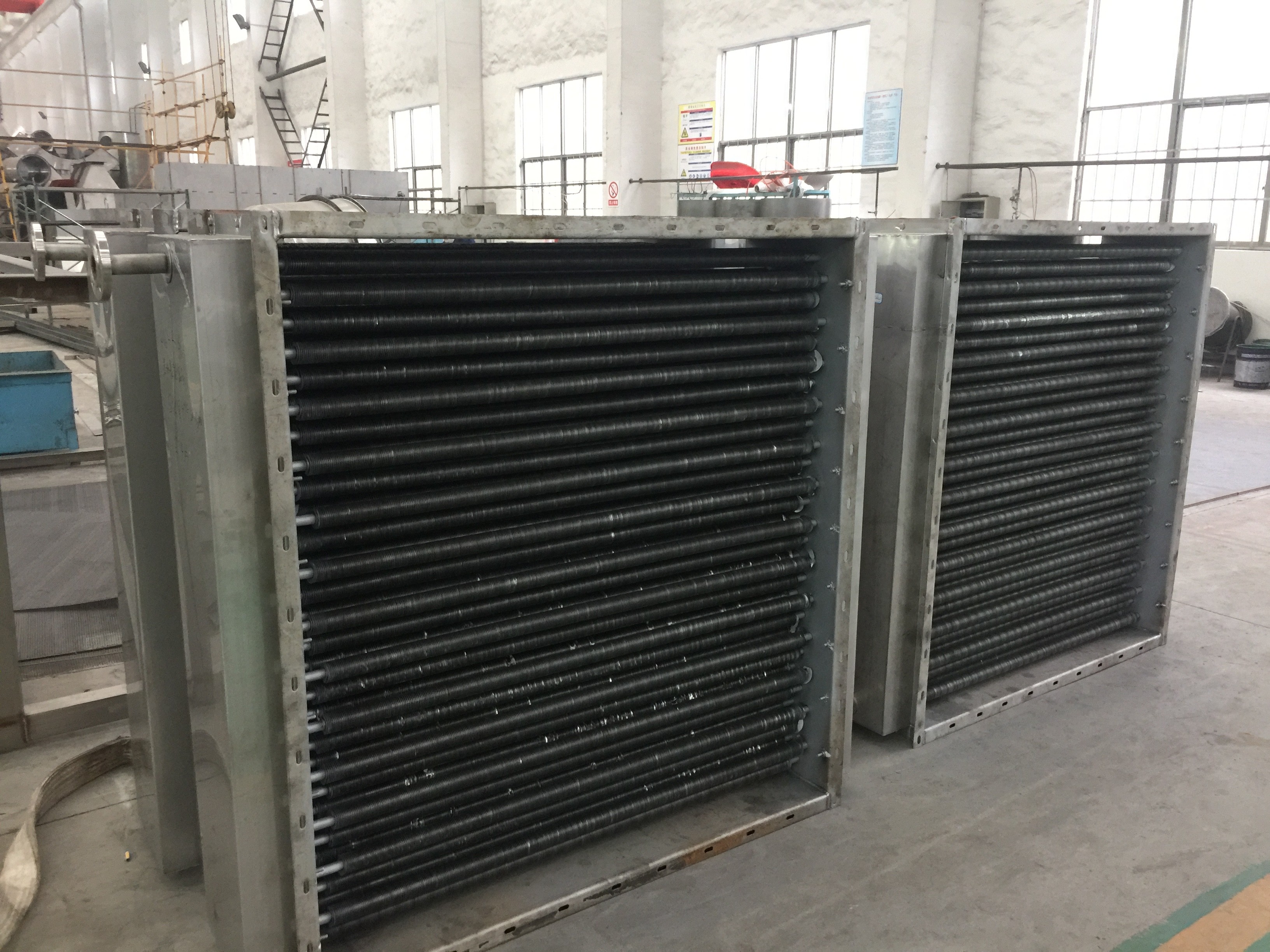

Drain Water Waste Heat Recovery Steam Generator Unit Counter Flow System

Waste heat recovery system

Working principle

The wet air enter into the heating area from the bottom of the equipment.

After the bottom of hot pipe absorb the heat, and the working medium in the hot pipe will be evaporated, and absorb Evaporated heat from the wet air . after evaporation , the steam will go up to the top of the hot air , meanwhile , it can be pre-condensed ,and release the potential heat to the hot air radiating area . and the condense will back return by the gravity heavy , and continuously receive heat , and repeat delivering the heat from the heating area to the heat radiating area,and heat the fresh for waste heat recovery .

Product advantage:
1. thermal efficiency is as high as 80%;
2. Full automatic control, a key to start, real-time display operation parameters;
3. The appearance is mirror design, beautiful, generous, grade;
4. Heat exchanger production process requirements to the clean production;

Company information

Changzhou YIBU drying equipment CO.,Ltd was awarded the China famous trade mark. Our company become the first drying company who become the China famous trade mark in China.

Until now YIBU has more than 250 people,with 25-year-old.The founder, Mr Zha Guocai devotes research, manufacture, production and business of drying equipment for over thirty years, holds the post of Deputy Director-General of China Drying Equipment Association for a long time.The company pays much attention to science and technology renovation. First or later, it has cooperated with the institutes that are Shanghai, Wuhan, Chongqing and so on, and cooperated with Shenyang Chenmical Institute, Ministry of Chemical Industry, Qinghua University, Shanghai Transporation University, Dalian Science and Technology University. Therefore the company can put 3-5 new varieties into the market every year. In 1998, through approval of state relevant departments, the company set up China Research Center of Drying and Granulating, that can research new process and develop new technology and provide new products for pharmaceutical, chemical and foodstuff industries. We have many testing machine in our lab for to make trials for clients.

We’ve sold equipment to USA, India, Russia, Denmark , Holland , Peru, Australia, New Zealand, Ghana, Cyprus, Greece, Iran, Indonesia, Philippines, Korea, Japan, Taiwan, Hongkong and so on totally nearly 50 countries and districts around the planet;
