Dried Leaf / Corn Grinding Mill Machine , Automatic Spices Powdering Machine

  • Dried Leaf / Corn Grinding Mill Machine , Automatic Spices Powdering Machine
  • Dried Leaf / Corn Grinding Mill Machine , Automatic Spices Powdering Machine
  • Dried Leaf / Corn Grinding Mill Machine , Automatic Spices Powdering Machine
  • Dried Leaf / Corn Grinding Mill Machine , Automatic Spices Powdering Machine
  • Dried Leaf / Corn Grinding Mill Machine , Automatic Spices Powdering Machine
Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number 30B
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Woodencase
Delivery Time 10 weeks
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Metal Material SUS316/SUS304/ CARBON STEEL ,ETC Motor ABB/ SIEMENS /
Capacity 30-300kg Power 10-80kg
Document FAT/ IQ / OQ / PQ Power Supply Customized
Highlight

grinding mill machine

,

industrial grinder machine

,

dried leaf grinding pulverizer machine
Leave a Message
Product Description

SUS304 SUS316L Dried Leaf  High Effect Grinding Machine group Grinding Pulverizer Machine

Specifications

High Efficiency, Corrosion Resistance
1, material:Ss 304
2, High efficiency & high quality
3, price competitive

Main Use:



Grinder is mainly applied to food (sesame seeds, red dates, sugar, rice, corn, starch, oats, flour, beans, peas, lentils and spices, cocoa powder, potato powder, coffee, salt, milk, onion, dehydrated vegetables, glucose , oat hull, husk, herbal flavors and fragrances), chemical (polyethylene, PVC, polystyrene, polyvinyl alcohol, limestone, gypsum, paints, pigments) grinding, especially for oily, viscous material.



Main features:



Grinding machine inside adopts high-speed rotary grinding wheel cutter, machine inside is with large air volume, not easy to get heating. It has advantage of stable running, easy disassembly and cleaning, low noise, good effect for the smash.



Work Principle:



1. The raw material is sent into the machine hopper by the feeder conveyor, then leaks into the crashing cabin.

2. The leather belt driven by motor spurs the motional hammers whirling in a high speed, the hammers chafe, collide with the immovable fluted disc in a high speed, then the raw material is ground.

3. The ground powder will leaks from the screen stencil, gets out from the discharge hole, stored inside the bag.



Model 20B 30B 40B
Capacity(kg/h) 20-150 30-300 40-800
Main shaft speed(r/min) 5600 4500 3800
Feeding materials dia(mm) 6 10 12
Crushing mesh(mesh) 12-120 12-120 12-120
Power(kw) 4 5.5 7.5
Fan power(kw) 1.5 1.5 2.2
Size(mm) 1100×600
×1550		 1250×750
×1650		 1500×800
×1680
Weight(kg) 290 380 560

1. This machine use the relatively high speed of and use activities chain-ring between fixed tooth plate, so that was crushed by the chain-ring impact, friction and material collide with each other and get crushed.

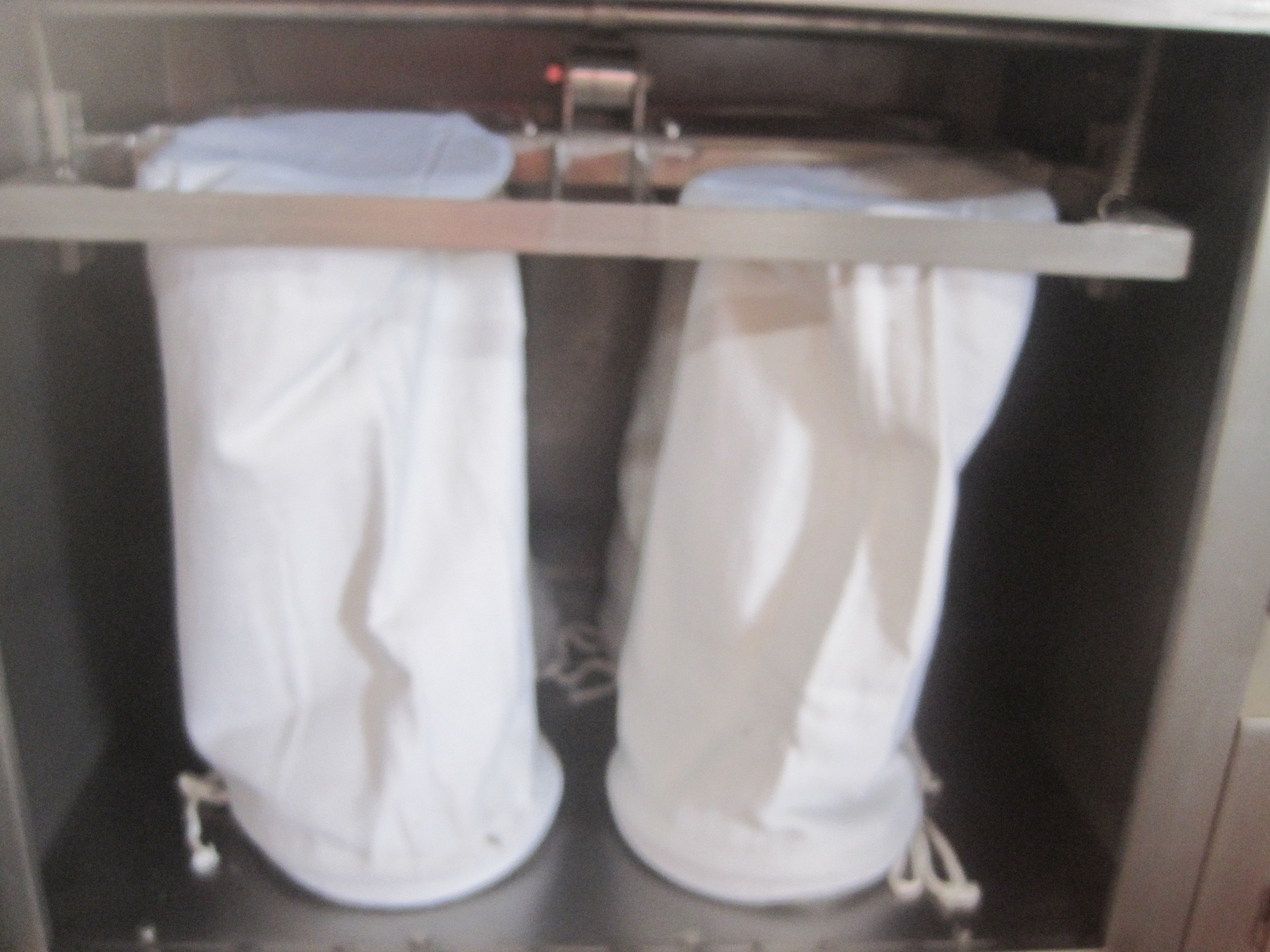

2. Crushed material by the centrifugal force, automatically enter the trap bag, dust from the vacuum tank was recovered by filtration bag.
3. The machine adopts high-quality AISI304 or AISI316L stainless steel, the production process no dust, and can improve the utilization of materials, reduce business costs. Replacement of different particle size is determined by the number of screens.
4. Inside the enclosure (crushing groove) all alveolar by precision machined so as to achieve a smooth surface, easy to clean and change the ordinary mill rough wall, easy to accumulate dust, the phenomenon is difficult to clean, the food, pharmaceutical, chemical and other production line with GMP requirements .
5. The machine structure is simple, robust, smooth operation, the crushed material quickly and evenly, with good results.

Dried Leaf / Corn Grinding Mill Machine , Automatic Spices Powdering Machine 0

The machine(set) is extensively used in chemical, pharmaceutical, food and pesticide industries for grinding dry brittle materials.
