Flexible Shaft Grinding Hammer Mill Pulverizer Machine Button Control

Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number WFJ
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Woodencase
Delivery Time 10 weeks
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH
Product Details
Motor ABB/ SIEMENS / Document FAT/ IQ / OQ / PQ
Power 10-100kw
High Light

grinding mill machine


food grinding machine

Leave a Message
Product Description

SUS304 SUS316L WFJ Series Micro- Particle Grinding Pulverizer Machine for pharmaceutical industry

Main usage:

this machine consists of main motor, auxiliary motor, and electricalcontrol cabinet with the capabilities of winnowing, non-sieve or mesh, equalityof granule size, and continuous processing. It meets the international advancedlevel, and is suitable for the material grinding by trade of pharmaceutics, chemical,and foodstuff.]

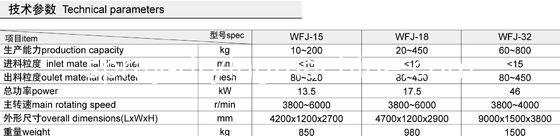

Model WFJ-15
Caoacity (kg/h) 10-200
Size of input granules (mm) < 10
Size of output granules (kw) 80-320
Total Power (kg) 13.5
Main speed (r/min) -6000
Overall size (L×W×H) 4200×1200×2700
Weight 850


Model WFJ-30 WFJ-60
Caoacity (kg/h) 30-800 50-1200
Size of input granules (mm) <15 < 15
Size of output granules (kw) 80-320 80-300
Total Power (kg) 46 84.15
Main speed (r/min) -3800 -2800
Overall size (L×W×H) 6640×1300×3960 7500×2300×4530
Weight 1500

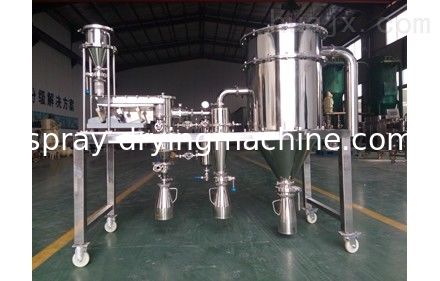

Flexible Shaft Grinding Hammer Mill Pulverizer Machine Button Control 0

◆ The material enters the grinding chamber via the screw feeder and then sheared and broken by the fast-rotating knives .The power passes the guide ring and enters the classification chamber. As the classification wheel is in revolution, both the air force and centrifugal force act on the powder.

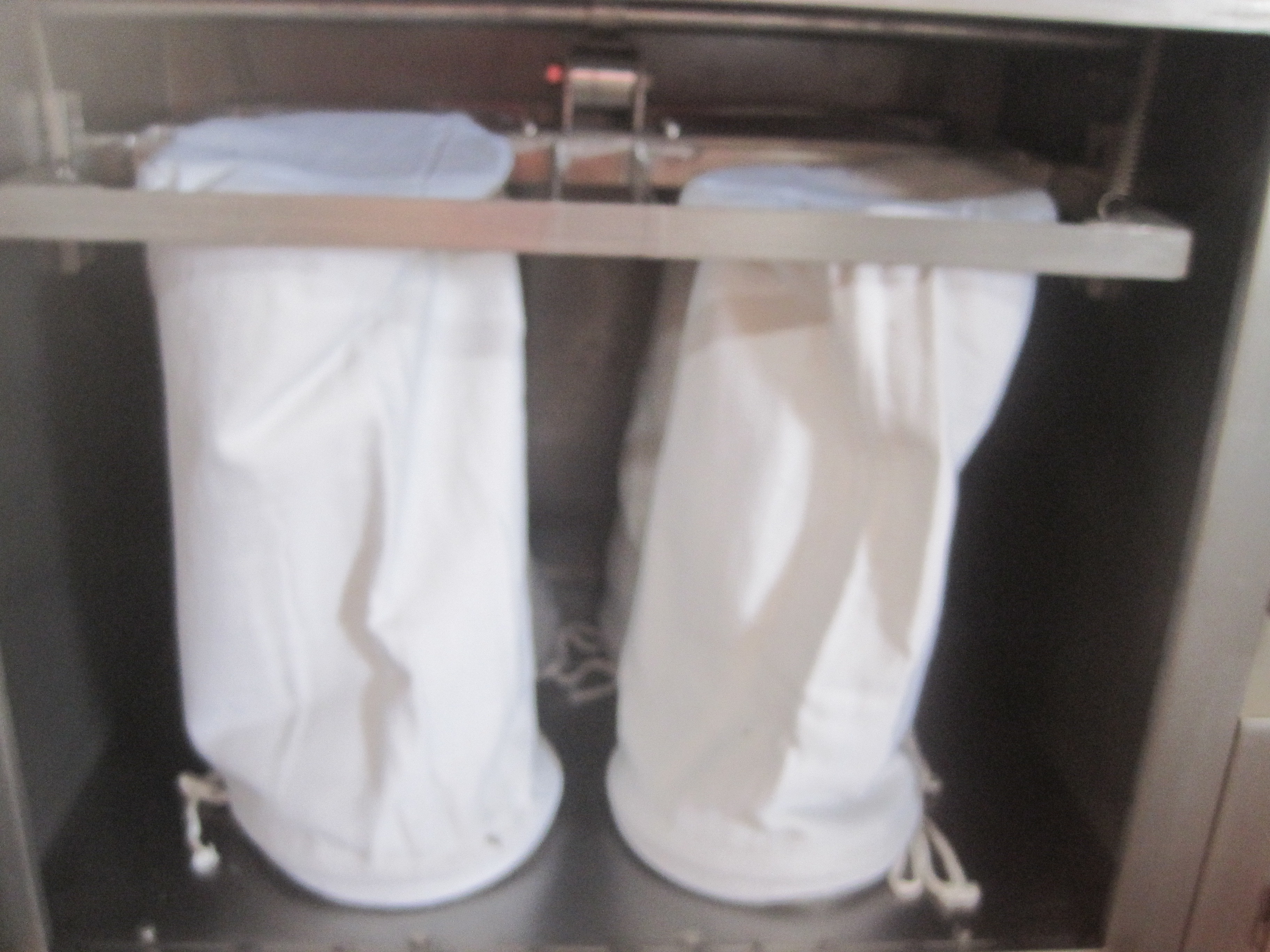

◆ As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a great mass, they are thrown back into the grinding chamber to be ground again, while the particles whose diameters are smaller than the critical diameter enter the cyclone separator and bag filter via the material exit pipe be means of negative pressure wind conveying .The discharge material meets the requirement for the product.

Flexible Shaft Grinding Hammer Mill Pulverizer Machine Button Control 1

1 In the machine chamber, there is the leaf structure. When operation, the air in the grinding chamber is blown out by the rotary leaves taking out the heat. Therefore, there is not much heat in the chamber to ensure the characteristic of the material.
2 When operation, the strong air flow can expel the material out. So it can pulverize the heat sensitive and sticky material with good effect.
3. For the good performance on the heat, it can be the substitute of universal crusher.
4. Expect the pull force of the fan, the air flow in the grinding chamber blows the fine powder out (the fineness of the powder is adjustable through the sieves). Thus, it can increase the capacity of the machine.
