Lithium Iron Phosphate Microwave Vacuum Drying Equipment Thermal Oil Heating

Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number SZG
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Woodencase
Delivery Time 6 weeks
Payment Terms L/C, T/T
Supply Ability 30 SETS PER MONTH
Product Details
Metal Material SUS316/SUS304/ CARBON STEEL ,ETC Heating Source Steam / Hot Water / Thermal Oil
Temperature 100-300℃ Vacuume Customized
Density Customized Vacuum Degree Customized
High Light

vacuum spray dryer

,

vacuum rotary dryer

,

lithium iron phosphate vacuum drying equipment

Leave a Message
Product Description

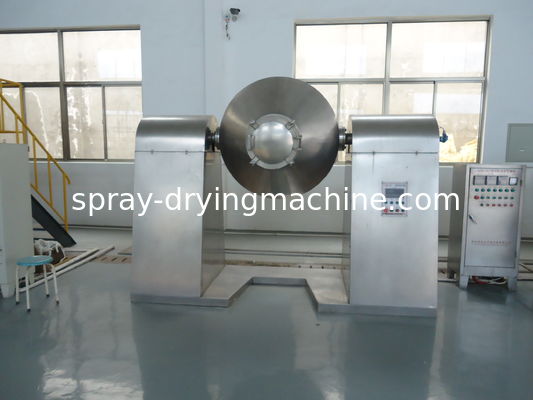

Lithium iron phosphate SZG Series powder double-Conical rotating Vacuum Drying Machine for chemical industry  (Vacuum Double cone dryer ) (Vacuum machine)( Conical drying machine )



Main Application

Cosmetic powder double cone vacuum dryer, the machine can mix and dry the powder, crystal material and granule material in chemical industry, pharmaceutical industry, foodstuff industry, metallurgy industry, construction, etc. It can also be used for the concentration of the liquor, disinfection and germicide of the material. The moisture of the material can be dried to be lower than 0.5%.Themachine can save energy sources with low labor and high efficiency, and it only needs 2-4 hours to dry the material (<40% humidity content).



Principle

Working Principle

Put the material in the vacuum and heat the material indirectly by the fixture coat.When dried, it rotates slowly, and refreshes the heating surface continuously to enhance the dry speed. The vacuum pump can absorb the moisture continuously and the steam impregnate can be reclaimed by the cooler.



Technical Data

Technical parameter

Model SZG-100 SZG-350 SZG-500 SZG-750 SZG-1000 SZG-1500 SZG-2000
Total volume (L) 100 350 500 750 1000 1500 2000
Loading volume (L) ≤50 ≤175 ≤250 ≤375 ≤500 ≤750 ≤1000
Rotary speed (r/min) 3-13
Motor power (kw) 0.75 1.1 1.5 2 3 3 4
Rotary height (m) 1.75 2.1 2.25 2.49 2.8 2.94 2.99
Tank inner pressure (Mpa) -0.1-0.15
Clip set pressure (Mpa) ≤0.3
Working temp.(°C) Inner tank ≤85 Clip set≤ 140
Heating media Steam, Hot water, Heat transfer oil
Weight (kg) 800 1100 1200 1500 2800 3300 3600
Floor area (L*W) 2160*800 2260*800 2350*800 2550*1000 2860*1300 3260*1400

3760*1800







Ordering Information

1. Please choose the suitable model according to the primary moisture content, final moisture content, temperature, vacuum degree, and drying time. The heat source can use steam, hot water, thermal oil, and electricity. If the customer required increasing the drying capacity by add more trays, please specify in the order.

2. If the customer required installation or spare parts, please specify in the order.

3. Customized design service available.

4. We guarantee the quality of the dryer and we ensured the spare parts for the dryer is available in a long term.



Lithium Iron Phosphate Microwave Vacuum Drying Equipment Thermal Oil Heating 0

Features of Rotary Vacuum Dryer

  • Design is GMP
  • All Product contact parts AISI 316/ 316L & non-contact parts AISI 304. Or completely 304.
  • Simple & compact Design for Easy to operate, clean, convenient & user friendly.
  • Automated mixing and Drying process in single bowl.
  • Dust free operation.
  • High vacuum operation
  • Low temperature drying.
  • Solvent recovery
  • Continuous rotation of container, material will make complex impacting motion in the container and reach to uniform mixing and drying at low temperature..
  • Continues vacuum maintenance during process.
  • Vacuumed closed system with condenser, Receiver for solvent recovery & Cyclone separator to recovery the solid particle.
  • Rapid & Complete discharge / Zero holdup after discharge
  • The product dried is homogeneous with uniform properties.
  • Very low value of final moisture even at low drying temperatures.
  • Inside Filter assembly with 5 Micron.
