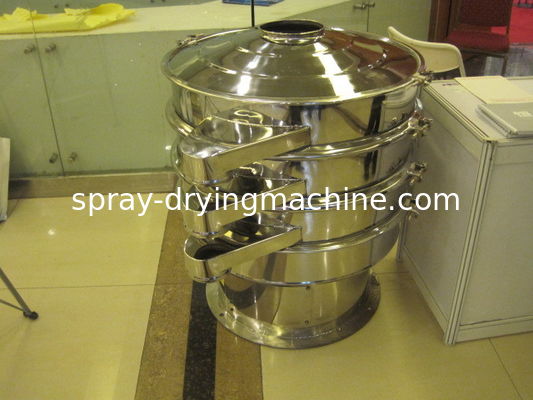

Button Control Rotary Instant Granule Sieve Machine ABB / Siemens/ Motor
|MATERIAL||SUS316/SUS304/ CARBON STEEL ,ETC||Capacity||Customized|
|Document||IQ OQ PQ FAT||Control System||Button Control|
|Motor||ABB / SIEMENS/||Power Supply||Customized|
vibro sieve separator,
vibro sifter machine
SUS304 SUS316 ZS Series instant granule sieving machine/sand screening for food industry
The machine consist of hopper, vibrating chamber, couple and motor. There are eccentric wheel, rubber software, main shaft and shaft-bearing in the vibration chamber. The adjustable eccentric hammer is driven to the center line through the motor, cause centrifuged force under the state of unbalance and so that the materials from regular eddy. The amplitude of the hammer may be adjusted according to the property of material and the mesh screen.
1. Mirror polish low noise peat vibrating screen/sifter/sieve machine is a kind of high precision fine powder screening machine, low noise, high efficiency, full closed structure, suitable for granular, powder, mucus and other materials screening and filtering.
2. Mirror polish low noise peat vibrating screen/sifter/sieve machine, also known as rotary vibration screen, with vertical motor excitation source, the motor installed at both ends of the eccentric weight hammer.
3. The basic principle of Product overview of Vibration mesh screen machine rotary food vibrating screen: is through the two ends of the motor installed the weight hammer (unbalanced weight hammer), will change the motor for horizontal, vertical, inclined three dimensional motion, and then the movement passed to the net surface.
4. Changing the phase angle of the hammer at both ends of the motor can change the direction of movement of the material.
Mirror polish low noise peat vibrating screen/sifter/sieve machine Main Features:
1. Mirror polish low noise peat vibrating screen/sifter/sieve machine with Small size, light weight, saving space. The direction of the discharge port can be adjusted, coarse, fine material automatically discharged.
2. Mirror polish low noise peat vibrating screen/sifter/sieve machine is not blocked, the powder is not flying, the smallest screen can be up to 500 mesh (28 microns), the smallest filter up to 5 microns.
3. Mirror polish low noise peat vibrating screen/sifter/sieve machine Widely used sifting machine,round rotatory screen,food vibrating screen with unique grid design, long-term use of screen, easy to change screen mesh, only 3-5 minutes, simple operation, easy to clean.
5. No mechanical action, easy maintenance, can be single or multi-layer use, contact part of the material is made of stainless steel (except for medical use).
6. Any particles, powder, mucus within a certain range can be screened.
It is compact in structure, small in volume, tightness dust free, noise-free, high output ,low in energy consumption, easy to move and easy to maintain.
|Number of mesh(mm)||
