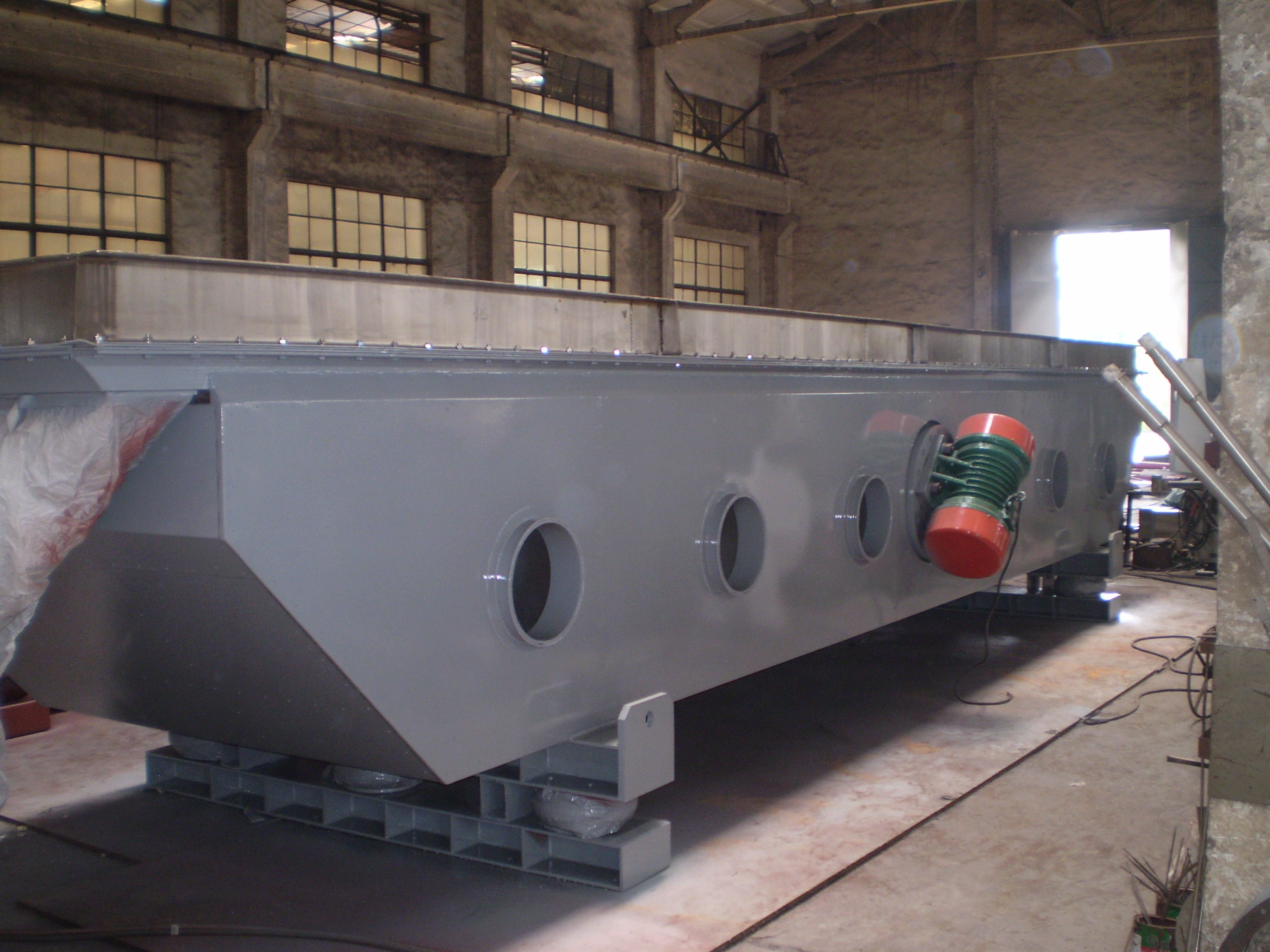

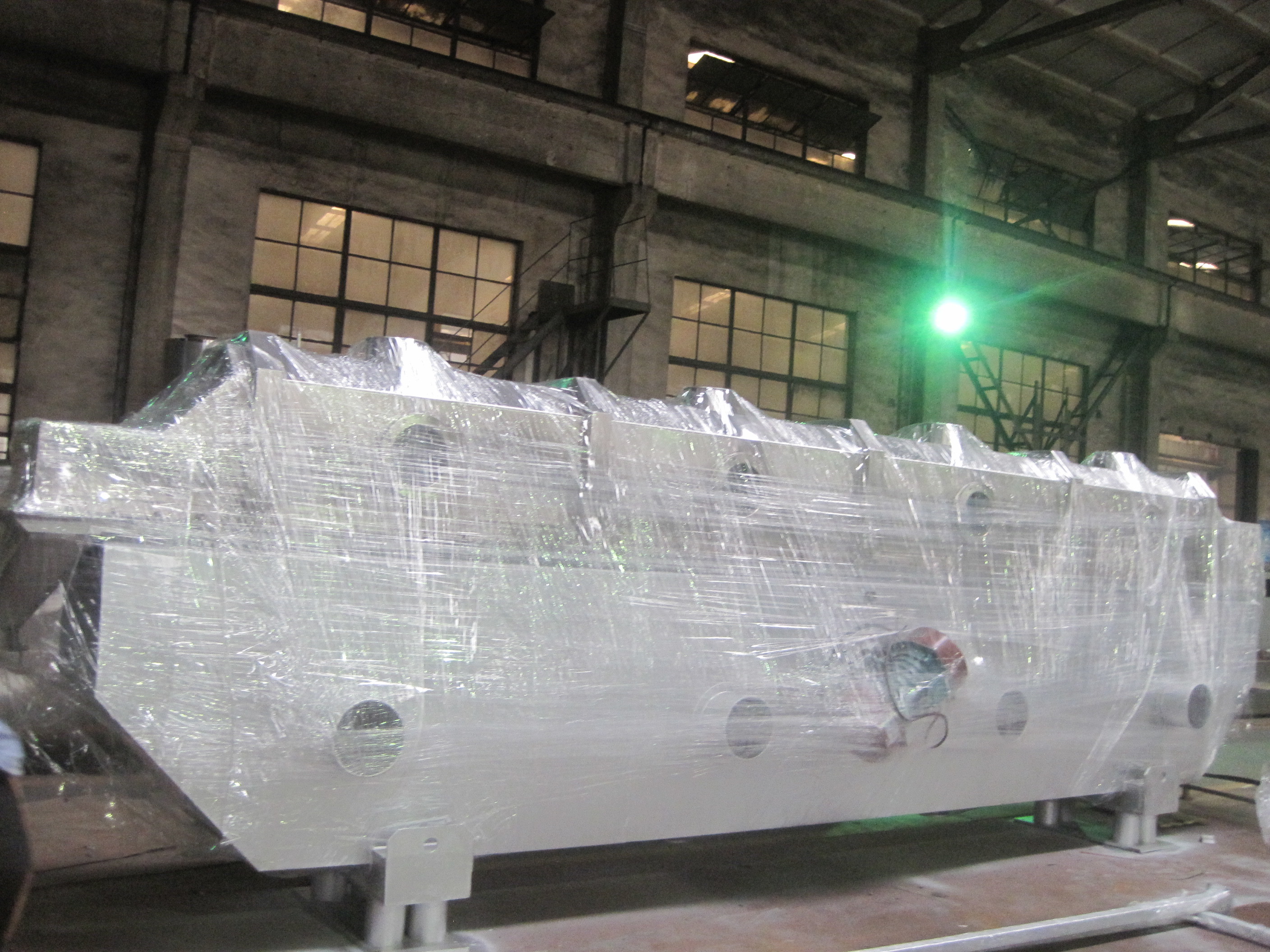

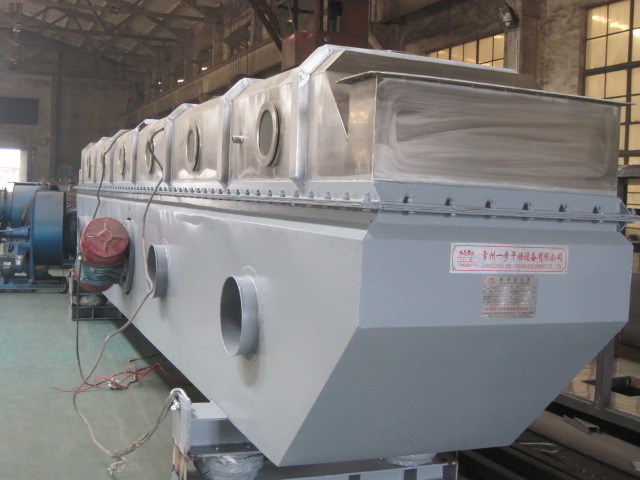

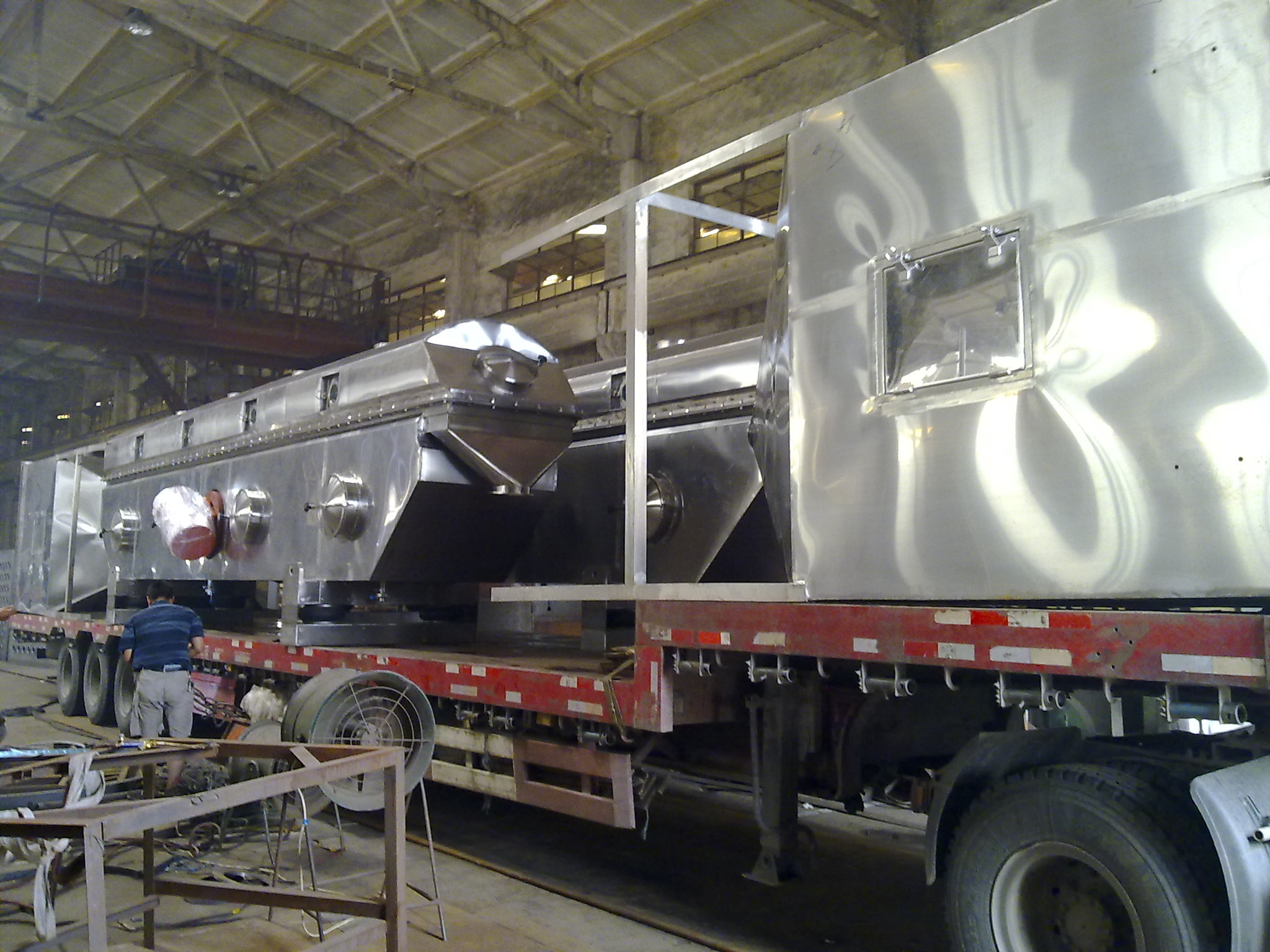

Washing Powder Continuous Fluid Bed Dryer Machine 50 - 2500kg/H Water Evaporation

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMetal Material | SUS316/SUS304/ CARBON STEEL ,ETC | Heating Source | Steam / Electrical / Natural Gas Etc |
---|---|---|---|
Capacity | Customized | Document | FAT/ IQ / OQ / PQ |
Temp | 80-200’C | Water Evaporation | 50-2500kg/h |
Feature | High Efficient For Foodstuff Industry | ||
Highlight | vibratory fluid bed dryer,fluid bed dryer mechanism,washing powder fluid bed dryer machine |
Washing Powder GZQ Vibrating foodstuff Fluid Bed Drying Machine (Vibrating Drying Machine ) (Horizontal Vibrating Dryer)( FBD Pharm vibrating dryer )
Main Application:
chemical fertilizer vibrating Fluid Bed Dryer
Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid. maleic acid and so on;
Foodstuff and construction material industries: monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds and so on ;
It can also used for raw materials to add damp or cooling and so on .
Working principle
Raw material is fed into the machine from the inlet and moves forward continuously along with the level of fluidizedbed under the action of vibration.The hot airpasses through fiuidi-zed-bed and carries out heat exchange with damp raw material. Then the damp air is exhausted out through cyclone separator and duster and the dry raw material is discharged through discharge outlet.
Adopt vibration motor, it is smooth in running and convenient in maintenance. The noise is low and the service life is long.
The state of fluidization is uniform and no dead gaps or broken phenomenon so to even dry, cool product.
It is good in adjustment and wide in the field of application. The thickness of raw material and the speed of raw material to be moved inside the machine and the change of vibration range can be steeples. The damage the surface of raw material is small. So it can be used for raw materials that are easily to be broken. If the granule is not normal, the effect of process can not be effected.
The structure is fully seal, it is effective to prevent from cross pollution of raw materials and the working environment is clean.
The mechanical and heat are high and its effective of energy saving, compared to ordinal dryer, 30-60% of energy is saved.
The moist powder layer is vibrated on an air distributor plate. The effect of the vibration combined with the upward and forward directed flow of drying air through the perforated plate create ideal processing conditions and powder transport. Thanks to the vibration, it is possible to operate with fluidized powder layers of less than 200 mm. This gives a narrow and swift controlled residence time whilst avoiding attrition.
Application :
It is applicable for drying, cooling of powder or granule state materials, such as citric acid, monosodium glutamate, borax, ammonium sulphur, compound fertilizer, piece of radish, bean, lees, seed, mine reside and sugar, in chemical, pharmaceutical, foodstuff, grain, mine and so on industries.
|
