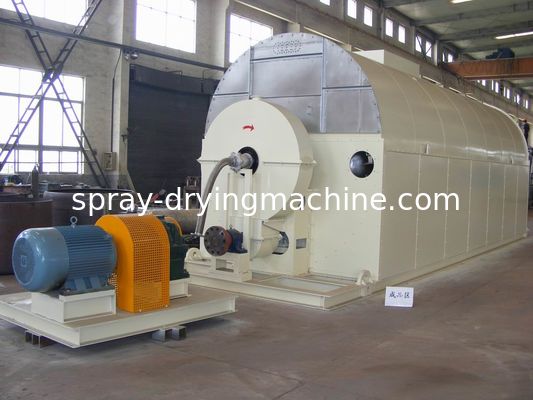

Beer Distillers Grain Pipe Bundle Vacuum Drying Machine Steam / Thermal Oil Heating

Place of Origin China
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number GZG
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Woodencase
Delivery Time 10 weeks
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Metal Material SUS316/SUS304/ CARBON STEEL ,ETC Heating Source Steam / Thermal Oil
Capacity Customized Motor ABB SIEMENS
Power Customized Weigth 5000-20000kg
High Light

vacuum drying equipment

,

vacuum rotary dryer

Leave a Message
Product Description

Beer distiller's grain GZG tube bundle Conductive styledrying machine(pipe bundle drying machine, tube bundle dryer , pipe bundle drying machine dryer )

Product Description

GZG tube bundle  Conductive style drying machine (tube bundle dryer) is the indirect heated, contact type drying machine which can be both parallel flow and the counter flow drying. Its major advantages are economic and practical. Among all kinds of the drying machines, it is the lowest in its power consumption and heat consumption. To evaporate 1 kg of water only consume 1.5kg to 2kg of steam, only 50% of the fluidizing dryer.



To drying one ton of fermented grass powder consumes 15kW/h, only 25% compare to fluid bed. Both the electric power consumption and the steam consumption reach the advanced level of the same kind products. The materials with high water content can be dried, the drying flexibility is wide. The drying time can be adjusted according to the materials property and moisture requirement. It can be continuous operation of high automation, or intermittent operation for special technical process. The machine has less accessories, parts occupy small area, has compact technical process and easy for installation.





Features
1. Pipe bundle drying machine is a indirect contact drying. The structure is the fixed shell with the built-in rotational heating tube bundle with material shovel. the steam enters the inside of tube and pass the heat through the rotational connection and becomes the condensing water then discharges. The moisture in material is heated outside the tube and becomes the steam ,then is dispelled by the moisture extractor fan. The material in the tube bundle is lifted by the rotating shovel and evenly falls over the outer surface of heating tube, then it is pushed to the material outlet from inlet and dried.it can be widely used for drying the spongy wet materials in the chemical industry, light industry ,food and fodder industries etc.t is characterized by the wide drying scope, the big amount of evaporated water, low power consumption and continuous production.

2.The efficient cyclone separator ,high-performance steam trap and the air preheater configuration by using the heat of condensing water are available, according to the feature of material and clients’ request.

al process. The machine has less accessories, parts occupy small area, has compact technical process and easy for installation.



Specification & Technical Parameter Table



Model No.


(m2)

HE Area



(KW)

Main Drive Power


(MPa)

Design Pressure


(kg/kg)

Steam Moisture Ratio



Overall dimension


(mm)

L*W*H (mm)

GZG--80 80 7.5 0.7 1.4~1.5 7200×1600×2000
GZG --100 100 7.5 0.7 1.4~1.5 7400×1800×2200
GZG --150 150 11 0.7 1.4~1.5 7600×2000×2300
GZG --210 210 11 0.7 1.4~1.5 7800×2100×2550
GZG --250 250 15 0.7 1.4~1.5 7800×2400×2600
GZG --300 300 18.5 0.7 1.4~1.5 8200×2500×2600
GZG--350 350 22 0.7 1.4~1.5 8500×2600×3100
GZG--400 400 30 0.7 1.4~1.5 8500×2800×3320
GZG--500 500 37 0.7 1.4~1.5 9500×2800×3320
GZG--600 600 55 0.7 1.4~1.5 10000×3000×3550
GZG--800 800 75 0.7 1.4~1.5 10700×3200×3900
GZG--1000 1000 90 0.7 1.4~1.5 11000×3600×4100
GZG--1200 1200 110 0.7 1.4~1.5 11500×3800×4400
GZG--1500 1500 160 0.7 1.4~1.5 13000×4000×4600


Main specifications and technical parameters:

Materials Germ Corn fiber Corn protein
Inlet water content 55% 60% 45%
Outlet water content 3~5% 10~12% 12~13%
Drying intensity (evaporation kg water/ m2) 2.5~3 4.8

4.7







After-sales Service

1). Our company can provide a sophisticated product after-sale service and can ensure the implementation, maintenance and commission of projects.

2). We can reach the project site after receiving the user’s notification.
