Double Cone Rotary Agitated Vacuum Dryer Machine For Food / Inorganic Salt

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMetal Material | SUS316/SUS304/ CARBON STEEL ,ETC | Heating Source | Steam / Hot Water / Thermal Oil |
---|---|---|---|
Temperature | 100-300℃ | Vacuume Pump | Customized |
Density | Customized | Vacuum Degree | Customized |
Highlight | vacuum drying equipment,vacuum rotary dryer,inorganic salt vacuum drying machine |
SZG Series inorganic salt double-Conical rotating Vacuum Drying Machine for chemical industry ZG -P Conical Pharmaceutical Vacuum Drying Machine (Vacuum Double cone dryer ) (Vacuum machine)( Conical drying machine )

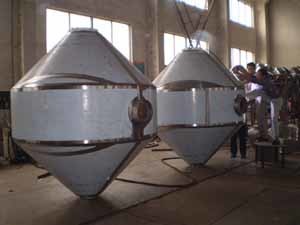

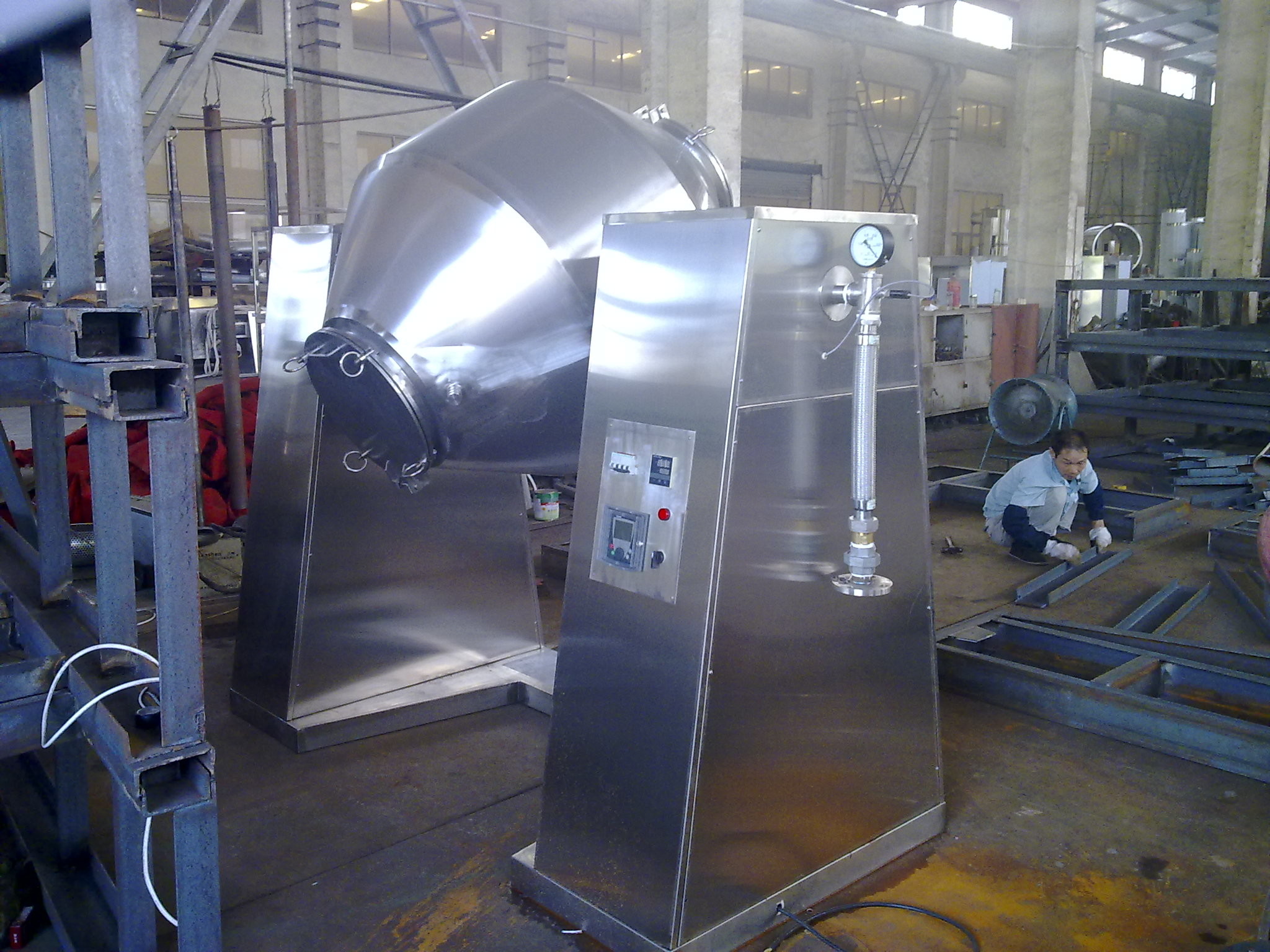

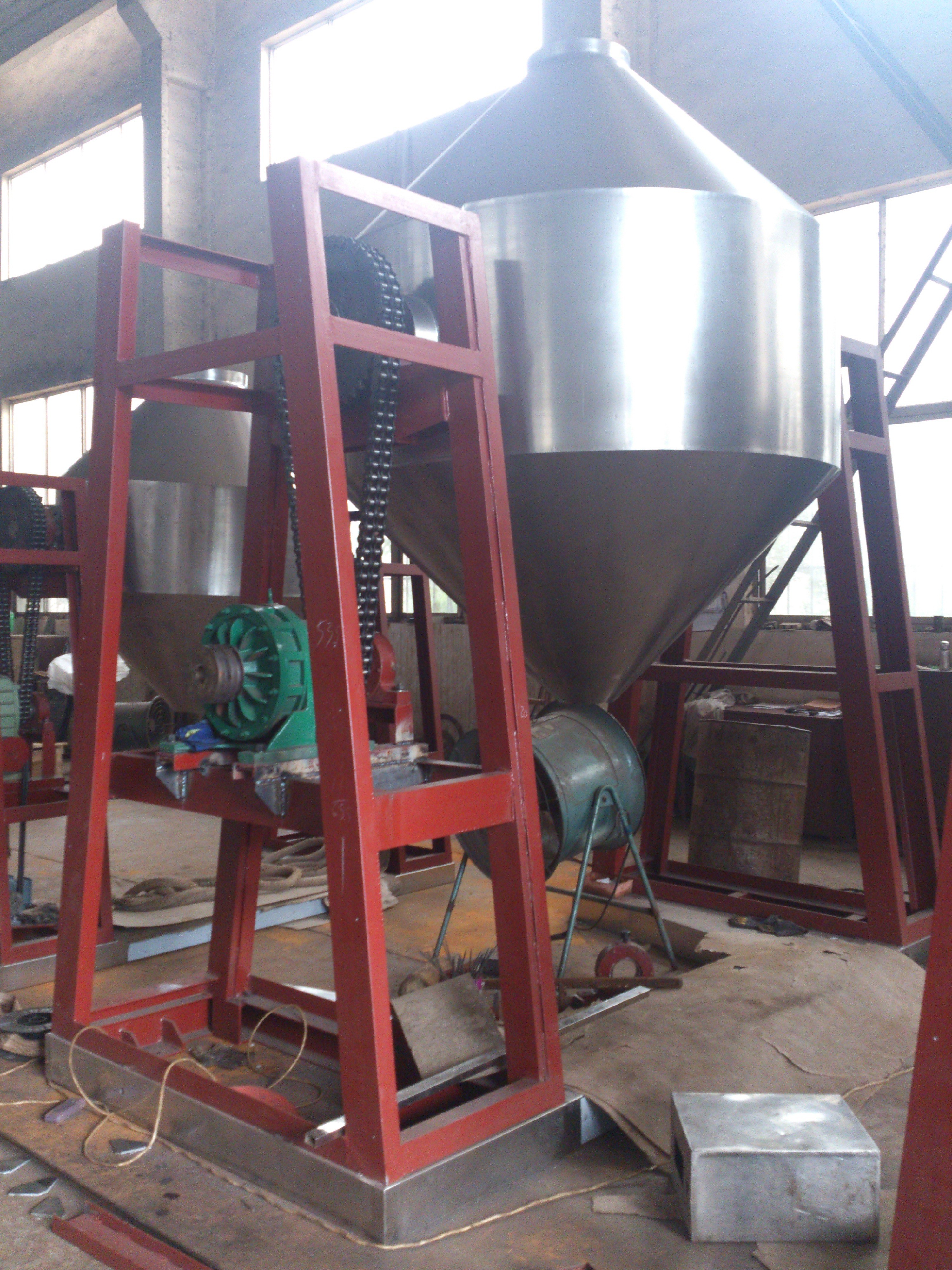

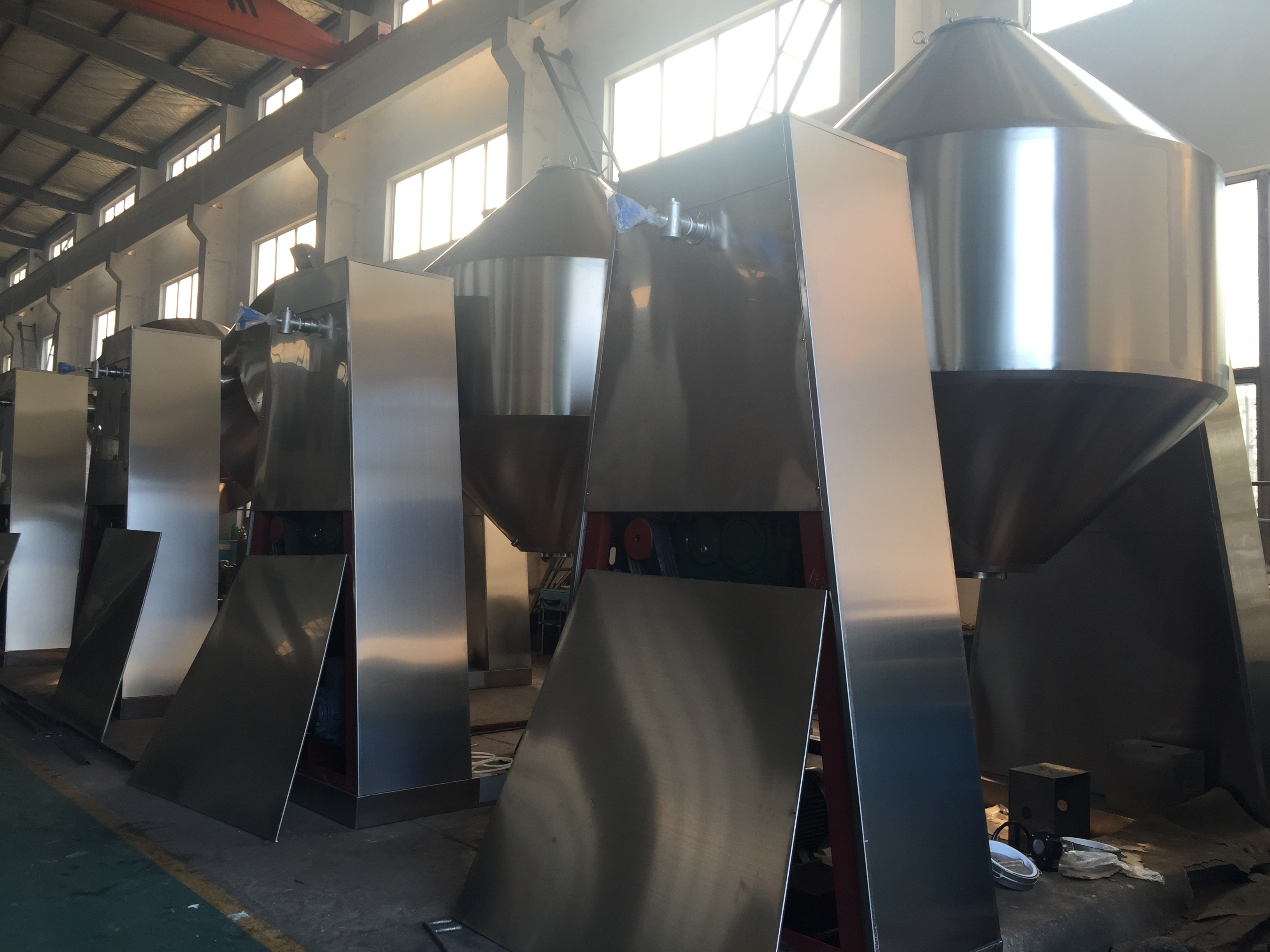

Double Cone Vacuum Dryer Machine is a new generation drying device developed by our factory on the basis of combining the technology of similar equipment. It has two connecting ways, i.e. belt or chain. Therefore it is stable in operation. The special design guarantees two shafts realize good concentricity. Heat medium and vacuum system all adapt reliable rotating connector with the technology from USA. It can carry out steeples speed change and constant temperature control.
As a specialized factory in drying industry, we supply hundred sets to the customers every year. As for working medium, it may be thermal oil or steam or hot water. For drying the adhesive raw material, we have designed specially a stirring plate buffer for you.
Working Principle
Let heat source (for example, low pressure steam or thermal oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell;
Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized;
The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the
surface of raw material become saturation and will evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can be realized within a short time.
Let heat source (for example, low pressure steam or thermal oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell;
Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized;
The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material reach the state of saturation and evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can be realized within a short time.
Model | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
Name | ||||||||||
Volume inside of tank(L) | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
Practical loading volume(L) | ≤50 | ≤175 | ≤250 | ≤375 | ≤ 500 | ≤750 | ≤1000 | ≤1750 | ≤2250 | ≤2500 |
Rotary speed(r.p.m.) | 3~13 | 6 | 5 | 4 | 4 | 4 | ||||
Power of motor(kw) | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
Occupied area, LxW(mm) | 2160 | 2260 | 2350 | 2560 | 2860 | 3060 | 3260 | 3760 | 3960 | 4400 |
Rotating height (mm) | 1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4100 | 4200 |
Design pressure inside of tank (MPa) | -0.1~0.15 | |||||||||
Design pressure of jacket (MPa) | ≤0.3 | |||||||||
Working temperature(°C) | (In the tank≤85) (jacket≤140) | |||||||||
Model and power of vacuum pump | SK-0.4 | SK-0.4 | SK-0.8 | SK-1.5 | SK-1.5 | SK-3 | SK-6 | SK-6 | SK-9 | SK-12 |
1.5KW | 1.5KW | 2.2KW | 4KW | 4KW | 5.5KW | 11KW | 11KW | 15KW | 18.5KW | |
Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 | 7500 | 8600 |
