External Circulation Backward Feed Multiple Effect Evaporator , Effluent Treatment Plant

Place of Origin China
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number DZ
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Woodencase
Delivery Time 5 weeks
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH
Product Details
Features Low Energy Consumption Material SUS316/SUS304/ CARBON STEEL ,ETC
Heating Source Steam / Electrical / Natural Gas / Diesel / Etc; Capacity 100-5000
Pressure I, Ii,iii Application Be Suitable For Powder
High Light

triple effect evaporator


double effect evaporator

Leave a Message
Product Description

DZ Series Single-Effect External Circulation Evaporator

◆ This equipment is consists of tubular external heater, vacuum evaporator and auxiliary device. It features short heating time, rapid evaporation speed and can keep the effectivity of thermosensitive materials well.
◆ It adopts foam-removing with two-grade and can reduce the loss of feed liquid greatly.
◆ Simple structure, easy cleaning.
◆ Large concentration ratio, the largest could be 1.35 g/cm3.
◆ The parts touched with materials are made of good quality of stainless steel, which meet the heath requirement of pharmacy and food.

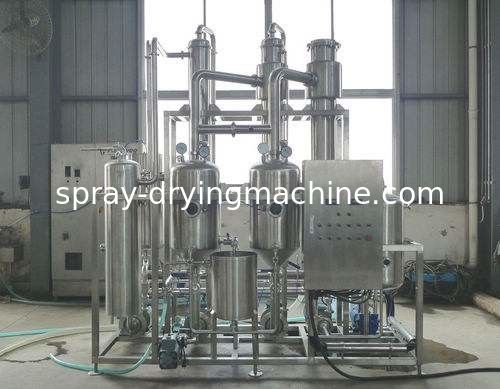

External Circulation Backward Feed Multiple Effect Evaporator , Effluent Treatment Plant 0




The machine can widely used in the concentration of the glucose, starch sugar, oligose, maltose, sorbierite, milk, juice, vitamin C, maltodextrin and other aqueous solution. And also widely used in liquid waste disposal such as industry field of gourmet powder, alcohol and fishmeal.


Its outstanding advantage lies in the point that it can fulfill the continuous operation and low temperature evaporation. It saves energy and time with low loss and maximize remain the material's color, fragrance and favor. It can satisfy the continuous production requirements. This product is mainly used in the industries such as food, Chinese and Western pharmaceutical, biochemical pharmaceutical, further processing of agricultural and auxiliary products, health drinks, juice, fine chemical, light industry, PRO-environment etc.


The evaporator series (three effect falling film evaporator) allowed arranging special process flow according to different feature of material. It can also designed according to customer's special requirement.



A. Evaporation capacity: From 500Kg/h to 80T/h

B. Material of contact: According to detailed raw material.

C. The equipment composed of one-effect, two-effect, three-effect heater, one-effect, two-effect, three-effect separator, preheater, composite condenser, hot press pump, vacuum pump, product pump, surge tank, electric cabinet, worktable and all pipelines and valves.

D. Low steam consumption, 1kg steam evaporate 3.5kg water. Heat evenly and high heat transfer efficiency;


E. Low evaporate temperature. Partial of indirect steam re-inhaled into one-effect heater by jet-type hot press pump can make full use of the heat and evaporate temperature are relatively lower.

F The process is under vacuum situation, the temperature is relatively low, so it is not easy to scaling in the evaporator.

G It can be quipped with CIP System, it is easy to clean all the equipment and ensure no dead angle


H It is equipped with PLC, With a complete configuration, operation, monitoring and control function. The system includes communication interface, display alarms, print reports, control section, to achieve automatic control of feeding quantity, the heating temperature, the feeding & discharging concentration & cleaning of equipment.
