    Product Details:

    Place of Origin: China
    Brand Name: YIBU
    Certification: ISO9001 , ISO14001, SGS . CE , UL Certificate
    Model Number: XF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: wooden case
    Delivery Time: 58 working days
    Supply Ability: 28 set per year
    Contact Now
    Detailed Product Description
    Material: SUS304 OR SUS316L Feature: Be Cleaned No Dead Angle
    Be Specialized In: Foodstuff Industry Document: FAT/ IQ / OQ / PQ
    Power Supply: Customized Name: Fluid Bed Equipment
    High Light:

    vibratory fluid bed dryer

    ,

    fluid bed dryer mechanism

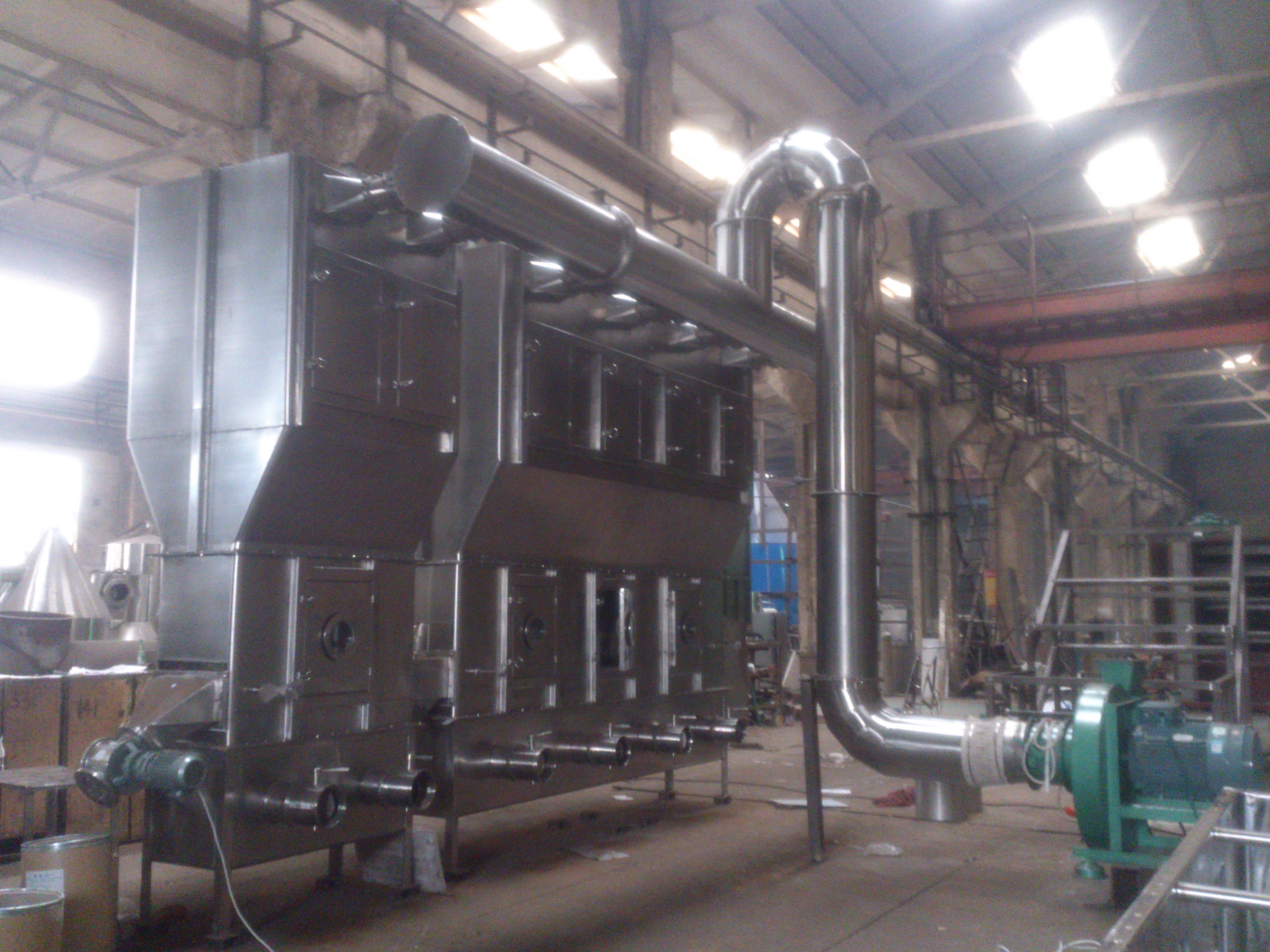

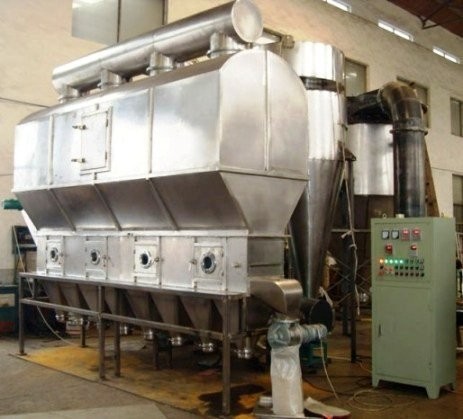

    XF -F Horizontal Foodstuff Fluid Bed Drying Machine ( Fluid Bed Drying Machine ) (Horizontal Fluid Bed Dryer)( FBD Ddryer )

    Preface

    Fluidizing dryer is also called fluid bed. Through operation and improvement over 30 years, it has play an active part in the fields of pharmaceutical, chemical, foodstuff, gain and so on industries. It consists of air filter, fluid bed, cyclone separator, dust collector, high-speed centrifugal fan, control cabinet and so on. Because of the difference of property from raw material, it is necessary to equip dust remover in accordance with practical needs. It may select cyclone separator and dust collector both or one of them. In general, cyclone separator can be selected if the raw material is larger and the dust collector may be selected if the raw material is light. Moreover, there is pneumatic feeding device for your selection. There are two kinds of operation for this machine, continuous and intermittent type.

    The clean and hot air enters into fluid bed through distributor of valve plate. The wet material is fed from the feeder forms the fluid state by hot air. Because of the wide contact between hot air and raw materials, the time of drying is short. If use continuous type, the material enters from the front of bed, fluidized in bed for several minutes, and float another side of bed. The machine works in negative pressure.

    The drying capacity is measured based on the primary moisture of crystal of plum is 20% and its final moisture is 5% and the temperature of air inlet is 130℃.The drying capacity of other raw materials will be based on the practical drying condition. When choose models, please note that: Model A should be matched with cyclone separator and Model B with inside bag dust collector and Model C with cyclone separator and bag dust collector.



    Application :

    Drying process of medicines, chemical raw material, foodstuff, grain processing, feed and so on. For example, raw medicine, tablet, Chinese medicine, foodstuff of health protection, drinks, maize germ, feed, resin, citric acid and other powders. The suitable diameter of raw material is normally 0.1-0.6mm. The most applicable diameter of raw material will be 0.5-3mm.

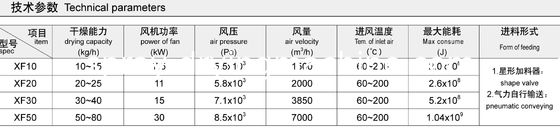

    TECHNICALPARAMETERS

    Model

    Specification

    XF0.25-1
    (XF10)
    XF0.25-2
    (XF20)
    XF0.25-3
    (XF30)
    XF0.25-6 XF0.3-2 XF0.3-4 XF0.3-6 XF0.3-8 XF0.3-10 XF0.4-4 XF0.4-6

    Area of Bed Layer

    (m2)

    0.25 0.5 1.0 1.5 0.6 1.2 1.8 2.4 3.0 1.6 2.4

    Drying Capacity

    (kg h2O/h)

    10-15 20-25 30-45 52-75 -30 42-60 63-90 84-120 105-150 56-80 84
    Fan Power(kw) 5.5 7.5 15 22 7.5 18.5 30 37 48 30 37

    Inlet Air Temperature

    (oC)

    120-140 120-140 120-140 120-140 120-140 120-140 120-140 120-140 120-140 120-140 120-140

    Material Temperature

    (oC)

    40-60 40-60 40-60 40-60 40-60 40-60 40-60 40-60 40-60 40-60 40-60

    Overall Dimension (Dryer Body)

    L×W×H(m)

    1×0.6
    ×3.35
    2×0.6
    ×3.35
    4×0.6
    ×3.35
    6×0.6
    ×3.35
    2×0.70
    ×3.4
    4×0.7
    ×3.4
    6×0.7
    ×3.4
    8×0.7
    ×3.4
    10×0.7
    ×3.4
    4×1
    ×3.58
    6×1
    ×3.58
    Occupied Area (m2) 18 25 35 40 25 38 45 56 70 18 56



    Model

    Item

    XF0.4-8 XF0.4-10 XF0.4-12 XF0.5-4
    (XF50)
    XF0.5-6 XF0.5-8 XF0.5-10 XF0.5-12 XF0.5-14 XF0.5-16 XF0.5-18

    Area of Bed Layer

    (m2)

    3.2 4.0 4.8 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0

    Drying Capacity

    (kg h2O/h)

    112-160 140-200 168-240 70-100 140-200 140-200 175-250 210-300 245-350 280-400 315-450
    Fan Power(kw) 44 66 66 30 66 66 90 90 150 150 165

    Inlet Air Temperature

    (oC)

    120-140 120-140 120-140 120-140 120-140 120-140 120-140 120-140 120-140 120-140 120-140

    Material Temperature

    (oC)

    40-60 40-60 40-60 40-60 40-60 40-60 40-60 40-60 40-60 40-60 40-60

    Overall Dimension (Dryer Body)

    L×W×H(m)

    8×1
    ×3.58
    10×1
    ×3.58
    12×1
    ×4.1
    4×1.2
    ×4.1
    6×1.2
    ×4.1
    8×1.2
    ×4.1
    10×1.2
    ×4.1
    12×1.2
    ×4.1
    14×1.2
    ×4.1
    16×1.2
    ×4.1
    18×1.2
    ×4.1
    Occupied Area (m2) 74 82 96 50 70 82 100 140 180 225

    268
