Pharmaceutical Spray Drying Machine 120 - 600℃ Automatically Controlled

Pharmaceutical Spray Drying Machine 120 - 600℃ Automatically Controlled

    • Pharmaceutical Spray Drying Machine 120 - 600℃ Automatically Controlled
    • Pharmaceutical Spray Drying Machine 120 - 600℃ Automatically Controlled
    • Pharmaceutical Spray Drying Machine 120 - 600℃ Automatically Controlled
    • Pharmaceutical Spray Drying Machine 120 - 600℃ Automatically Controlled
  • Pharmaceutical Spray Drying Machine 120 - 600℃ Automatically Controlled

    Product Details:

    Place of Origin: CHINA
    Brand Name: YIBU
    Certification: CE / UL / SGS / EAC / CR – TU
    Model Number: LPG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Woodencase
    Delivery Time: 10 WEEKS
    Payment Terms: L/C, T/T
    Supply Ability: 20 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Metal Material: SUS316/SUS304/ CARBON STEEL ,ETC Heating Source: Steam / Electrical / Natural Gas / Diesel / Etc
    Capacity: 10-10000kg Per Hour Water Evaporation: 5-5000kg Per Hour
    Temp: 120-600'C Particle: Per Hour

    Pharmaceutical Spray Drying Machine 120 - 600℃ Automatically Controlled



    Specifications

    Spray Dryer is used to production for converting liquid to solid powder
    1. ISO9001
    2. Spray Dryer

    -------------------------------------------------------------------------------------

    Gelatin Spray Dryer

    Gelatin Spray dryer is used to laboratory production of micro-particle powder by universities, research center and food, biotechnology.

    Application:

    Gelatin Spray dryer is used to laboratory production of micro-particle powder by universities, research center and food, biotechnology, beverage, chemical, material, and pharmaceutical enterprise exprimental.

    This method is suitable for the dry process of all solutions including emulsion, suspension, etc (Organic liquid is forbidden). of heat-sensitive materials, such as biological products, bio-pesticide, and enzyme etc. Because only mist size of particle sprayed by machine can get high temperature and the particle is transient heated to keep the active ingredient of those active material undamaged after drying process.

    -------------------------------------------------------------------------------------

    Features:

    l Special for exprimental research, Min 20-30ml liquid to finish one test;

    l All borosilicate glass for easy visual monitoring of process status;

    l Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment;

    l Easy to clean and very simple to assemble and break down;

    l The air compressor is no oil and don’t pollute compress air. The sound is low than 50db and following the GMP understands;

    l Inlet/outlet temperature is accurate controlled by PID;

    l The unit is self contained and supplied complete and ready for immediate operation;

    l Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency;

    l Product feeding with RS2559605 rotary pump, capacity is adjustable;

    l Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.

    -------------------------------------------------------------------------------------

    Key Specifications:

    l Max capacity 1500ml/h

    l Temperature range of inlet air 30°C~280°C

    l Temperature range of outlet air 30°C~120°C

    l Temperature precision ±1°C

    l Speed of squirmy pump 30~1500ml/h

    l Electric heater AC 220V, 3KW, single-phase, earthed

    l Blower Power: 0.1KW

    Max consume of air: 330m3/h

    Max air pressure: 686Pa

    l Air compressor Power: 0.25KW

    Max consume of air: 4.2m3/h

    Working air pressure: 0.2~0.5Mpa

    l Atomizer Standard 0.75mm jet

    l Pressure of the needle 0.3MPa (adjustable)

    l Pressure of spraying 0.25~0.3MPa (adjustable)

    l Power supply 200~230V, 3.5KW

    l Dimensions 700×600×1550 mm ( L×W×H )

    l Weight 120kg





    Preface

    Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as: solution, emulsion, suspension and pump- able paste states. For this reason, when the particle size and distribution of the final products, residual water contents, volume density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.

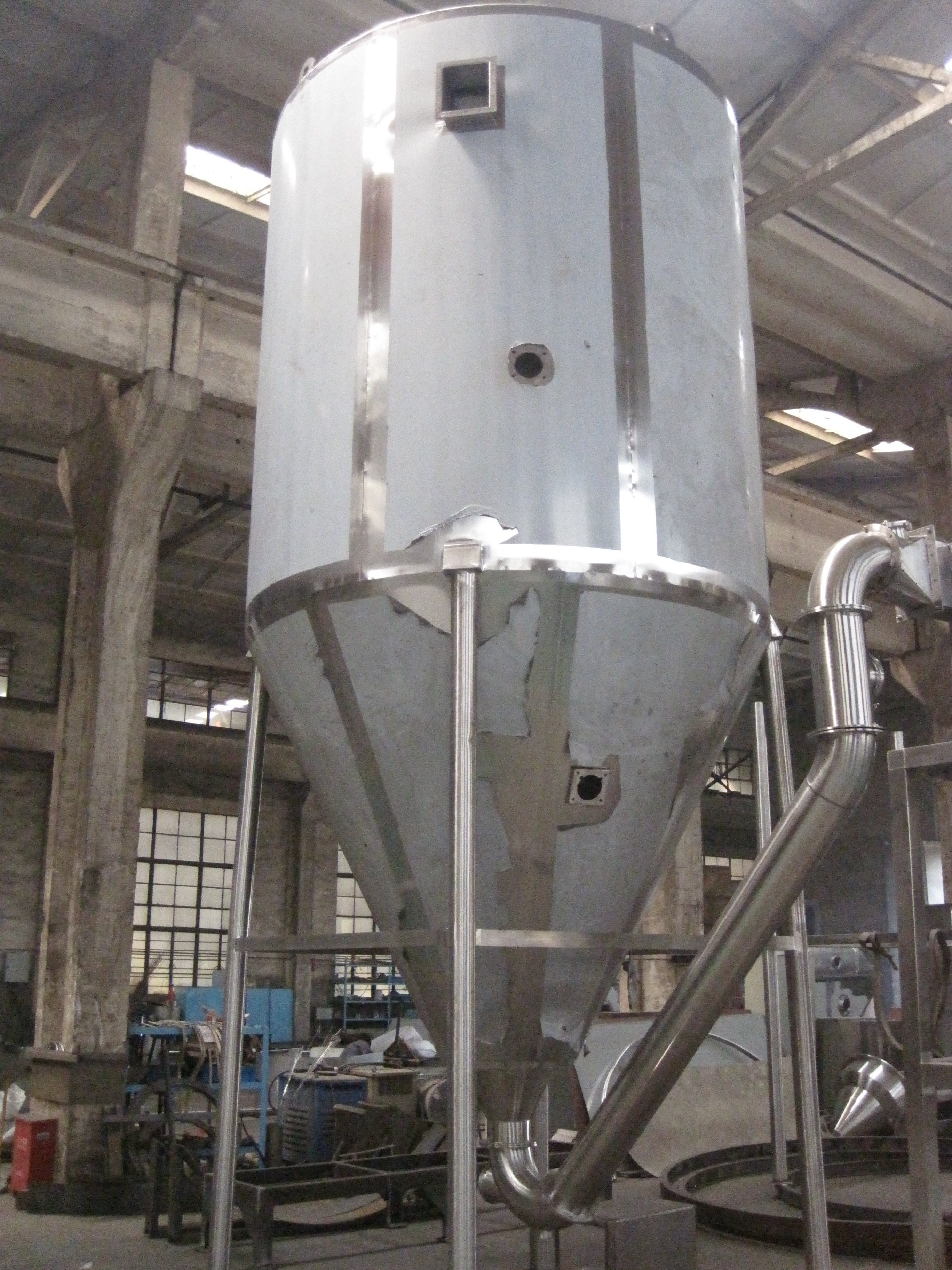

    After been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the spiral form uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.



    Feature :

    The drying speed is high when the material liquid is atomized, the surface area of the material will increase greatly. In the hot-air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials. Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality. The production procedures are simple and the operation and control are easy. The liquid with moisture contents of 40-60% (for special materials, the contents might be up to 90%.)can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition within a certain range.

    ed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.

    Pharmaceutical Spray Drying Machine 120 - 600℃ Automatically Controlled
