PLC Control Vibrating Fluid Bed Dryer Mechanism Machine Natural Gas Heating Heavy Duty

Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TUV
Model Number GZQ
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wooden case
Delivery Time 8 weeks
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH
Product Details
Metal Material SUS316/SUS304/ CARBON STEEL ,ETC Heating Source Steam / Electrical / Natural Gas Etc
Capacity Customized Document FAT/ IQ / OQ / PQ
Temp 80-200’C Water Evaporation 50-2500kg/h
Feature High Efficient For Foodstuff Industry
High Light

fluid bed equipment

,

vibratory fluid bed dryer

,

plc control vibrating fluid bed dryer

Leave a Message
Product Description

EDTA ACID GZQ  Vibrating foodstuff Fluid Bed Drying Machine (Vibrating Drying Machine ) (Horizontal Vibrating Dryer)( FBD Pharm vibrating dryer )



Working Principle:

Vibration fluid bed is a new technology developed on the basis of static fluid bed. Mechanical vibration is added on the fluid bed. Wet material particles enter the air stream and form a fluid bed.

The material is ejected due to exciting force. Vibrations of an air distributing plate incite the fluidization of material particles and the movement of material in the fluid bed. The fluid material contacts the hot air and at the same time carries on heat and mass transfer. The dried product is discharged through the discharge port.



Characteristics:

1. Uses the advanced vibrofluidization technology, the damage of dried material particle surface is

small.

2. Steady movement, good adaptability.

3. Vibrations cause fluidization, the drying air flow rate is reduced, and a few particles are entrained.

4. The material residence time is consistent, product quality is uniform.

5. It is used for the drying of heat sensitive material in short time, such as, the surface water

drying of CUSO4·5H2O contained crystal water, MgSO4·7H2O.



Adopt vibration motor, it is smooth in running and convenient in maintenance. The noise is low and the service life is long.

The state of fluidization is uniform and no dead gaps or broken phenomenon so to even dry, cool product.

It is good in adjustment and wide in the field of application. The thickness of raw material and the speed of raw material to be moved inside the machine and the change of vibration range can be steeples. The damage the surface of raw material is small. So it can be used for raw materials that are easily to be broken. If the granule is not normal, the effect of process can not be effected.

The structure is fully seal, it is effective to prevent from cross pollution of raw materials and the working environment is clean.

The mechanical and heat are high and its effective of energy saving, compared to ordinal dryer, 30-60% of energy is saved.

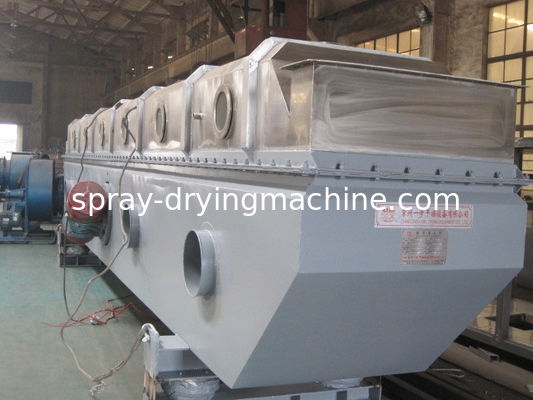

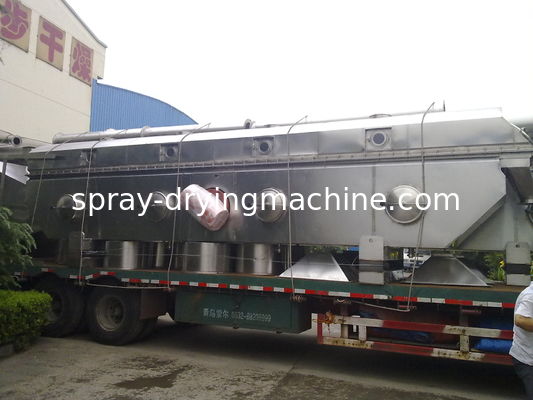

PLC Control Vibrating Fluid Bed Dryer Mechanism Machine Natural Gas Heating Heavy Duty 0PLC Control Vibrating Fluid Bed Dryer Mechanism Machine Natural Gas Heating Heavy Duty 1



Application :

It is applicable for drying, cooling of powder or granule state materials, such as citric acid, monosodium glutamate, borax, ammonium sulphur, compound fertilizer, piece of radish, bean, lees, seed, mine reside and sugar, in chemical, pharmaceutical, foodstuff, grain, mine and so on industries.




Model
Bed Size Overall Dimension Vibration Motor
(kW)
Weight
(kg)
Water Evaporation
(kg/h)
GZQ A1(mm) B2(mm) A B C
GZQ3×30 300 3000 3505 1830 890 0.5×2 1240 30-50
GZQ3×45 300 4500 5005 1830 1116 0.75×2 1570 45-70
GZQ6×45 600 4500 5005 1940 1286 1.1×2 1967 90-150
GZQ6×60 600 6000 6510 1940 1286 1.1×2 2743 120-200
GZQ6×75 600 7500 8010 1940 1286 1.1×2 2886 150-250
GZQ9×60 900 6000 6510 2110 1830 2.2×2 3540 180-300
GZQ9×75 900 7500 8010 2110 1830 2.2×2 4219 220-370
GZQ12×75 1200 7500 8010 2450 2400 3×2 5223 300-500
GZQ15×75 1500 7500 8010 2570 2850 4×2 6426 370-620
GZQ18×80 1800 8000 8520 3100 3250 5.5×2 8600 450-700
