Square Cone Industrial Mixing Machine , Continuous Adhesive Cosmetic Mixing Equipment

Place of Origin CHINA
Brand Name YIBU
Certification CE / UL / SGS / EAC / CR – TU
Model Number FZH
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Woodencase
Delivery Time 10 weeks
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH
Product Details
Metal Material SUS316/SUS304/ CARBON STEEL ,ETC Volume 30-8000L
Document FAT/ IQ / OQ / PQ Motor ABB/ SIEMENS /
Power Customized
High Light

industrial mixing equipment

,

industrial blending machine

Leave a Message
Product Description

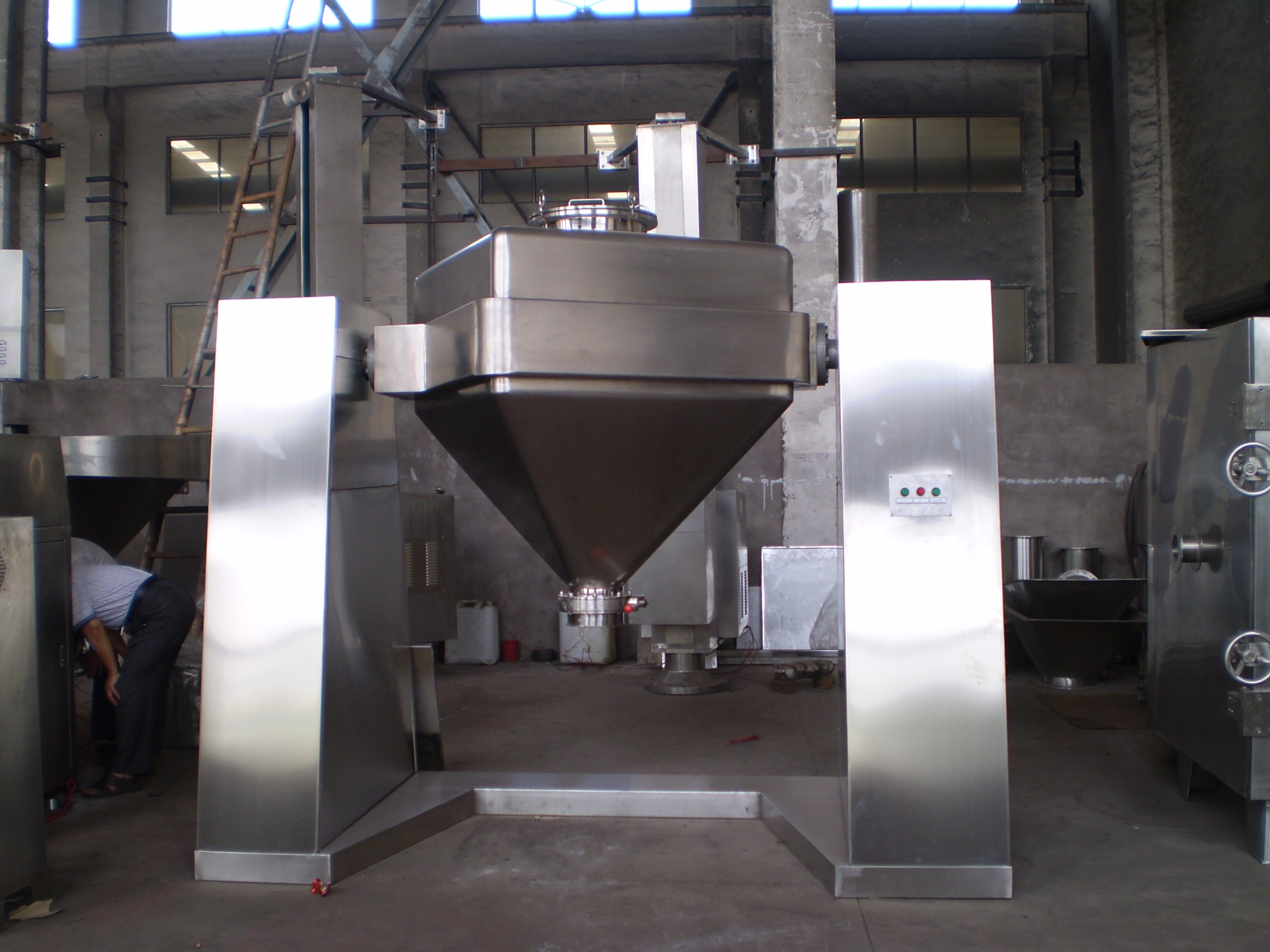

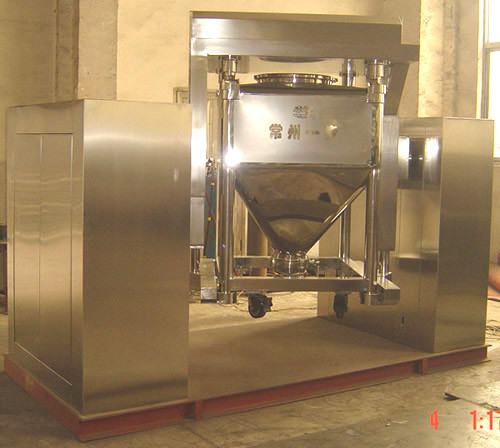

SUS304 SUS316L FZH Series Square -Cone Mixing Machine (Square –Cone mixer) Industrial Mixing Machine

◆ Materials are charged into a closed square-cone mixing barrel, the symmetrical axes of hopper and the axes of rotating shaft form an included angle, materials with different constituents are strenuously rolling over in the closed hopper and producing high shear to achieve the best effect of mixing

Model

FZH

300

FZH

500

FZH

1000A

FZH

1500A

FZH

2000A

FZH

3000A

Volume of mixing barrel (L) 300 500 1000 1500 2000 3000
Max. charge volume (L) 240 400 800 1200 1600 2400
Max. charge weight (kgs) 150 250 500 750 1000 1500
Main shaft speed (rpm) 14 13 12 10 10 8
Motor power (kw) 1.5 2.2 4 5.5 7.5 11
Weight of whole machine (kg) 600 750 1200 1650 2000 3000

Overall dimension (dynamic)

(L x W x H) (mm)

1850x1280x1980 2200x1530x2220 2800x2000x2820 2980x2330x3070 3300x2550x3280 3800x3000x3800





1. The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99% , and the volume charge coefficient reaches 0.8.
2. Low rotating height, smooth running, reliable performance, easy operation.
3. Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Confining to the requirement of GMP.
4. The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99% ,and the volume charge coefficient reaches 0.8.
5. Low rotating height, smooth running, reliable performance, easy operation.
6. Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Confining to the requirement of GMP.
7. The control system has more choices, such as push button ,HMI+PLC and so on.
8. The feeding system for this mixer can be by manual or pneumatic conveyor or vacuum feeder or screw feeder and so on.
