18000rpm Food PLC Spray Drying Machine 100kg Per Hour Water Evaporation

Place of Origin CHINA
Brand Name YPG
Certification CE / UL / SGS / EAC / CR – TU
Model Number LPG-100
Minimum Order Quantity 1 set
Price USD20000~90000/set
Packaging Details Woodencase
Supply Ability 500set
Product Details
Material SUS304 Heating Source Steam
Control PLC+HMI Name Spray Drying Machine
High Light

plc spray drying machine

,

HMI control spray drying machine

,

18000rpm spray drying machine

Leave a Message
Product Description

LPG High Speed Centrifuge Spray Dryer



SUS304 LPG-100 High Speed Food Spray Dryer Machine with steam heating source , water evaporaton is 100kg per hour

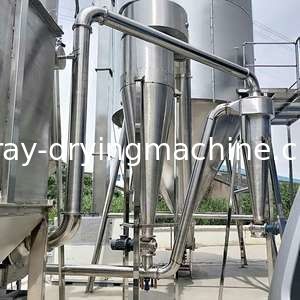

18000rpm Food PLC Spray Drying Machine 100kg Per Hour Water Evaporation 0








PRINCIPLE OF WORKING

Air is turned into hot air through heater and enters into hot air distributor at the top of dry chamber and then enters into dry chamber and rotates in the state of helix. At the same time liquid of raw material is sent to centrifugal atomizer at the top of dry chamber through stepless variable screw pump. In which liquid of raw material atomizes small drops. Air and liquid of raw material flow and contact each other. The moisture vaporizes rapidly. Liquid of raw material is dried into finished product in a short time. The finished product is discharged through the bottom cyclone separator of drier and the wasted air is exhausted through fan.

FEATURES

The drying speed is very quick. When raw material is atomized, the surface area increases greatly. 65~98% of moisture can be vaporized in hot air stream momentary. The dry time to be used is only 5~15 seconds. Especially, it is suitable for drying thermal sensitive raw materials.
The size of finished product is uniform and the flow and solubility are good. The purity and quality of product are good too.
The operation is stable and simple. The regulation and control is very convenient. It is easy to realize automatic operation.
The operation process is simplified and the operation environment is superior and can avoid powder dust during the period of operation.

SCOPE OF APPLICATION

Chemical industry: Sodium (potassium) fluoride, alkali dyestuff and pigment, dyestuff intermediate, compound fertilizer, catalyst, amino acid, white black and so on
Plastic resin: ABS emulsion liquid, urea formaldehyde resin, phenol formaldehyde resin, formaldehyde resin, PE, PVC and so on
Foodstuff industry:
Egg and milk products: Rich lipoprotein powdered milk, cocoa powdered milk, baby meal, egg white, vitalize and so on, food and juice of plant, oat, chicken juice, coffee, crystalline tea, condiment and flavor, protein bean, earthnut protein, protein, hydrolysis and so on
Sugar: Maize paste, maize starch, glucose, pectin, maltose, potassium seriate and so on
Ceramic: Aluminum oxide, ceramic tile material, magnesium oxide, pencil stone and so on

Model LPG-100
Inlet temperature 140~350 ºC
Outlet temperature 80~90 ºC
Water evaporation capacity(kg/h) 100
Revolution (rpm) 18000
Diameter of atomizing disc (mm) 120
Heat source Steam and electric
Composition or diesel oil,natural gas,coal hot air
Furnace
Max. power of electric heater (kw) 81
Overall dimensions (m) 4.6X4.2X6
Recovery rate of dry powder (%) ≥95
